Home /Products/Temperature And Humidity Controller/Precise TEMI990 Temperature Controller with 7-inch TFT Touchscreen, Advanced PID Control, and 3-channel PT100 Input

Precise TEMI990 Temperature Controller with 7-inch TFT Touchscreen, Advanced PID Control, and 3-channel PT100 Input

1
MOQ
Negotiable
Price
Precise TEMI990 Temperature Controller with 7-inch TFT Touchscreen, Advanced PID Control, and 3-channel PT100 Input
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: TEMI990
Screen Specifications: 7-inch Color TFT Touchscreen, 800×480 Resolution
Warranty: 1 Year
Control Modes: Fixed Value Run / Program Run (Programmable)
Sensor Type: 3-channel PT100 Input (capable Of Measuring Temperature, Humidity, Blackboard Temperature), Optional Electronic Sensor
Temperature Range: -90.0ºC ~ +200.0ºC (Customizable -90ºC ~ +300ºC)
Temperatur Accuracy: ± 0.2 ℃
Humidity Range: 1.0%~100% RH
Humidity Accuracy: ± 1% RH
Communication Interface: RS232 / RS485, Max Communication Distance 1.2km
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE, ISO
Model Number: TEMI990
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5~10 work days
Payment Terms: D/P,T/T,Western Union,Paypal
Supply Ability: 20 Unit/month
Product Description
Precise and Flexible TEMI990 Controller With Advanced PID Control and Extensive Programmability
Product Overview

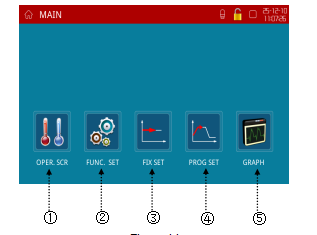

The TEMI990 controller offers exceptional functional integration and flexible programmability, featuring a 7-inch true color touch screen with intuitive interface design. The high-definition TFT thin screen delivers 64K colors and 800×480 resolution for clear, stereoscopic display with touch-sensitive menu selection.

Key Features
  • Advanced PID control with powerful programming capabilities for precise and flexible operation
  • Multi-channel input/output with modular signal configuration for versatile functionality and scalability
  • RS232/RS485, Ethernet, and remote control capabilities for modern, efficient operation
  • Comprehensive self-diagnosis and alarm functions ensuring stable performance and intelligent design
Applications

Ideal for complex temperature and humidity cycling tests including UV test chambers and xenon lamp aging chambers. Suitable for equipment operation that requires remote viewing and control through network connectivity.

Technical Specifications
Item Specification
Screen Specifications 7-inch Color TFT Touchscreen, 800×480 Resolution
Control Modes Fixed Value Run / Program Run (Programmable)
Installation Method Embedded or External Installation, Flexible Adaptation to Different Devices
Sensor Type 3-channel PT100 input (capable of measuring temperature, humidity, blackboard temperature), optional electronic sensor
Temperature Range -90.0ºC ~ +200.0ºC (Customizable -90ºC ~ +300ºC)
Control Accuracy ±0.2ºC
Humidity Range 1.0%~100% RH
Humidity Accuracy ± 1% RH
Program Capacity 20 Sets of Programs, Maximum of 100 Segments Per Set, Supporting Inter Group Connections and Intra Segment Loops
Communication Interface RS232 / RS485, Max Communication Distance 1.2km
Alarm Signal 16 DI External Failure Alarms
Dimensions (W×H×D) 194×133×34mm
Panel Cutout (W×H) 189×128mm
Power Supply 85-265V AC wide voltage input, 50/60Hz, I/O board requires 24V DC/600mA
Product Images
Precise TEMI990 Temperature Controller with 7-inch TFT Touchscreen, Advanced PID Control, and 3-channel PT100 Input 0 Precise TEMI990 Temperature Controller with 7-inch TFT Touchscreen, Advanced PID Control, and 3-channel PT100 Input 1 Precise TEMI990 Temperature Controller with 7-inch TFT Touchscreen, Advanced PID Control, and 3-channel PT100 Input 2 Precise TEMI990 Temperature Controller with 7-inch TFT Touchscreen, Advanced PID Control, and 3-channel PT100 Input 3
Our Service Process
  • Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
  • Specifications Customization: Create drawings for customized requirements, provide reference photos, and confirm final solutions and pricing
  • Production and Delivery: Manufacture according to confirmed requirements, provide production progress photos, conduct calibration, and ensure timely delivery
  • Installation and After-Sales: Provide field installation support and comprehensive after-sales service
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment, with free maintenance during this period. We extend an additional 2 months consideration for sea transportation. For technical issues, contact us via email or phone - we provide solutions within 24 to 48 hours after problem confirmation.

What about the delivery term?

Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. We accommodate urgent requirements with special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including logo placement on equipment.

How can I install and use the machine?

We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable to begin operation. On-site installation assistance is available when necessary.
