TEMI9000 7-Inch Programmable Industrial Controller for Environmental Test Chamber & Aging Oven
Introduction

TEMI9000 7-inch touch programmable temperature & humidity controller supports both single temperature and temperature-humidity integrated control. This versatile controller is universally applicable to hot air circulating ovens, constant temperature humidity chambers, high-low temperature cabinets, thermal shock testers, HAST accelerated aging machines, and various custom environmental test furnaces. It enables precise programmable temperature/humidity control, airflow regulation, and complete safety protection for all industrial reliability testing equipment.

Specifications
Item Technical Parameter
Display Screen 7-inch TFT true color touch screen, 800×480 resolution
Body Thickness 38 mm ultra-thin embedded design
Overall Dimension W201 × H140 × D38 mm
Panel Embedding Cut Size W189 × H128 mm
Operation Language Switchable Chinese / English bilingual interface
Operating Environment Temperature 0℃ ~ +50℃
Storage Temperature -20℃ ~ +70℃
Standard Sensor Input PT100 platinum thermal resistance
Optional Sensor K-type thermocouple
Temperature Measuring Range -90.0℃ ~+300.0℃
Temperature Display Resolution 0.1℃
Temperature Measuring Accuracy ±0.2℃
Steady Temperature Fluctuation ≤±0.5℃
Storable Recipe Groups 120 groups independent test programs
Segments per Single Recipe Max 100 temperature / time segments
Control Modes Heating, constant temperature holding, cooling, cycle operation
Timing Range 0 ~ 9999 min per segment
Heating Rate Adjustment 2 ~ 6℃/min customizable
Built-in Function Auto PID self-tuning, no temperature overshoot
Airflow Output Signal 4~20mA analog output for fan speed regulation (0.5~1.5m/s)
Digital Input DI 16 channels passive input (door interlock, overheat alarm, fault detection)
Relay Output DO 16 channels relay output (heater, circulation fan, exhaust, buzzer alarm)
Main Control Output SSR pulse voltage output for heating tubes
Humidity Module (Optional) Independent humidity input & control output for temperature-humidity chambers
Real-time Display On-screen temperature curve dynamic display
Storage Method Built-in local storage + USB flash disk export
Export Format Universal CSV data file for lab audit records
Communication Interface RS232, RS485, LAN Ethernet, USB Host
Remote Function Remote parameter setting, real-time monitoring, program upload/download
Rated Power Supply DC 24V
Power Consumption Max 25W
Applicable Equipment Hot air circulating oven, temperature & humidity chamber, thermal shock test chamber, aging test box, PCT/HAST accelerated aging machine
Safety Protection Functions
  • Over-temperature automatic power-off protection
  • Chamber door interlock (stop heating & fan once door opens)
  • Power-off memory for unfinished running programs
  • Over-current circuit protection
  • Automatic fault code pop-up reminder

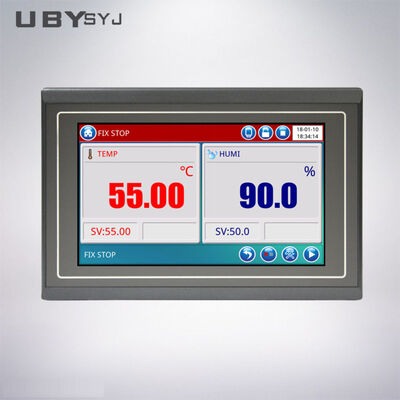

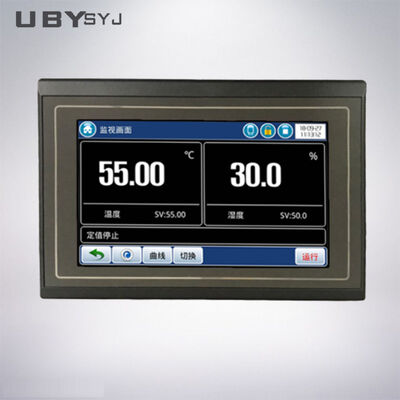

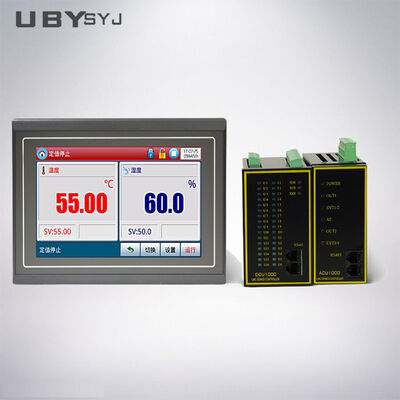

TEMI9000 Industrial Controller front view and display interface TEMI9000 Industrial Controller installation and connectivity details
