TEMI9000 7-inch TFT Touch Screen PID Temperature Controller with 120 Program Groups and ±0.2℃ Accuracy

1
MOQ
Negotiable
Price
TEMI9000 7-inch TFT Touch Screen PID Temperature Controller with 120 Program Groups and ±0.2℃ Accuracy
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: TEMI9000
Basic Infomation
Place of Origin: CHINA
Brand Name: None
Certification: CE, ISO
Model Number: TEMI9000
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5~10 work days
Payment Terms: D/P,T/T,Western Union,Paypal
Supply Ability: 20 Unit/month
Product Description
TEMI9000 Touch Screen PID Temperature Controller for ISO17493 Hot Air Circulating Oven
The TEMI9000 7-inch touch programmable temperature & humidity controller supports both single temperature and temperature-humidity integrated control. This versatile controller is universally applicable to hot air circulating ovens, constant temperature humidity chambers, high-low temperature cabinets, thermal shock testers, HAST accelerated aging machines, and various custom environmental test furnaces. It enables precise programmable temperature/humidity control, airflow regulation, and complete safety protection for all industrial reliability testing equipment.
Technical Specifications
Item Technical Parameter
Display Screen 7-inch TFT true color touch screen, 800*480 resolution
Body Thickness 38 mm ultra-thin embedded design
Overall Dimension W201 * H140 * D38 mm
Panel Embedding Cut Size W189 * H128 mm
Operation Language Switchable Chinese / English bilingual interface
Operating Environment Temperature 0℃ ~ +50℃
Storage Temperature -20℃ ~ +70℃
Standard Sensor Input PT100 platinum thermal resistance
Optional Sensor K-type thermocouple
Temperature Measuring Range -90.0℃ ~+300.0℃
Temperature Display Resolution 0.1℃
Temperature Measuring Accuracy ±0.2℃
Steady Temperature Fluctuation ≤±0.5℃
Storable Recipe Groups 120 groups independent test programs
Segments per Single Recipe Max 100 temperature / time segments
Control Modes Heating, constant temperature holding, cooling, cycle operation
Timing Range 0 ~ 9999 min per segment
Heating Rate Adjustment 2 ~ 6℃/min customizable
Built-in Function Auto PID self-tuning, no temperature overshoot
Airflow Output Signal 4~20mA analog output for fan speed regulation (0.5~1.5m/s)
Digital Input DI 16 channels passive input (door interlock, overheat alarm, fault detection)
Relay Output DO 16 channels relay output (heater, circulation fan, exhaust, buzzer alarm)
Main Control Output SSR pulse voltage output for heating tubes
Humidity Module (Optional) Independent humidity input & control output for temperature-humidity chambers
Real-time Display On-screen temperature curve dynamic display
Storage Method Built-in local storage + USB flash disk export
Export Format Universal CSV data file for lab audit records
Communication Interface RS232, RS485, LAN Ethernet, USB Host
Remote Function Remote parameter setting, real-time monitoring, program upload/download
Rated Power Supply DC 24V
Power Consumption Max 25W
Applicable Equipment Hot air circulating oven, temperature & humidity chamber, thermal shock test chamber, aging test box, PCT/HAST accelerated aging machine
Safety Protection Functions
  • Over-temperature automatic power-off protection
  • Chamber door interlock (stop heating & fan once door opens)
  • Power-off memory for unfinished running programs
  • Over-current circuit protection
  • Automatic fault code pop-up reminder

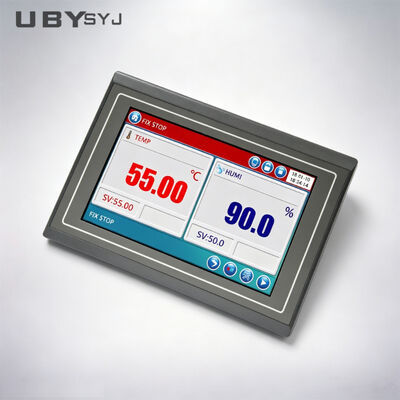

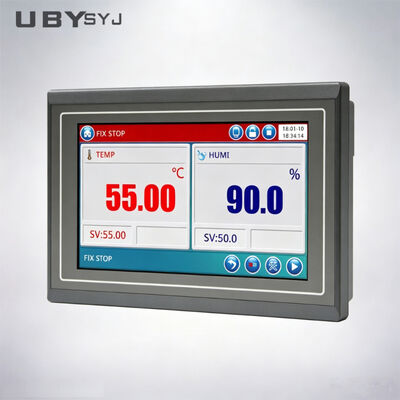

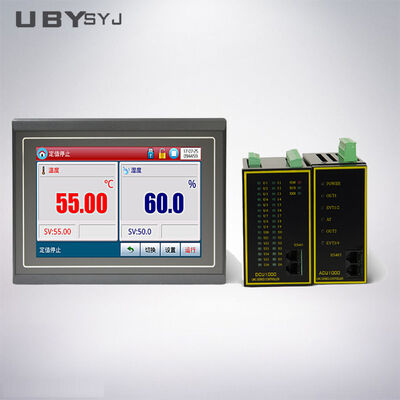

TEMI9000 Temperature Controller front view and display interface TEMI9000 Temperature Controller technical specifications and applications
Our Consultative Selling Services
Customer Inquiry Process:
Discussing testing requirements and technical details, suggesting suitable products to customer for confirmation. Then quote the most suitable price according to customer requirements.
Specifications Customize Process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the product appearance. Then confirm the final solution and price with the customer.
Production and Delivery Process:
Producing machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, provide photos for customer confirmation. Perform factory calibration or third-party calibration as required. Check and test all details before arranging packing. Deliver products within confirmed shipping time.
Installation and After-Sale Service:
Defining installation procedures for field deployment and providing comprehensive after-sales support.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. Generally, we offer 12 months for FREE maintenance, while considering sea transportation, we can extend 2 months for our customers.

If your machine doesn't work, you can send us an email or call us. We will try our best to identify the problem through conversation or video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
What about the delivery term?
For our standard machines: If we have stock in the warehouse, delivery is 3-7 working days; If there is no stock, normally the delivery time is 15-20 working days after payment is received; If you are in urgent need, we will make special arrangements for you.
Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can offer not only standard machines but also customized machines according to your requirements. We can also put your logo on the machine, meaning we offer OEM and ODM services.
How can I install and use the machine?
Once you have ordered testing machines from us, we will send you the operation manual or video in English version through email. Most of our machines are shipped as complete units, meaning they are already installed. You just need to connect the power cable and start using it. If necessary, we can also assist you with on-site installation.
