Name: Programmable Industrial Controller for Environmental Test Chamber & Aging Oven 7-Inch TEMI9000
Brand: Dongguan Youbi Test Equipment Co.,Ltd
SKU: TEMI9000
Price: negotiable USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Model NO.: TEMI9000

Highlight:

Programmable industrial temperature controller

Environmental test chamber controller

7-inch TEMI9000 aging oven controller

Basic Infomation

Place of Origin: CHINA

Brand Name: None

Certification: CE, ISO

Model Number: TEMI9000

Payment & Shipping Terms

Packaging Details: Professional export packaging

Delivery Time: 5~10 work days

Payment Terms: D/P,T/T,Western Union,Paypal

Supply Ability: 20 Unit/month

Gallery

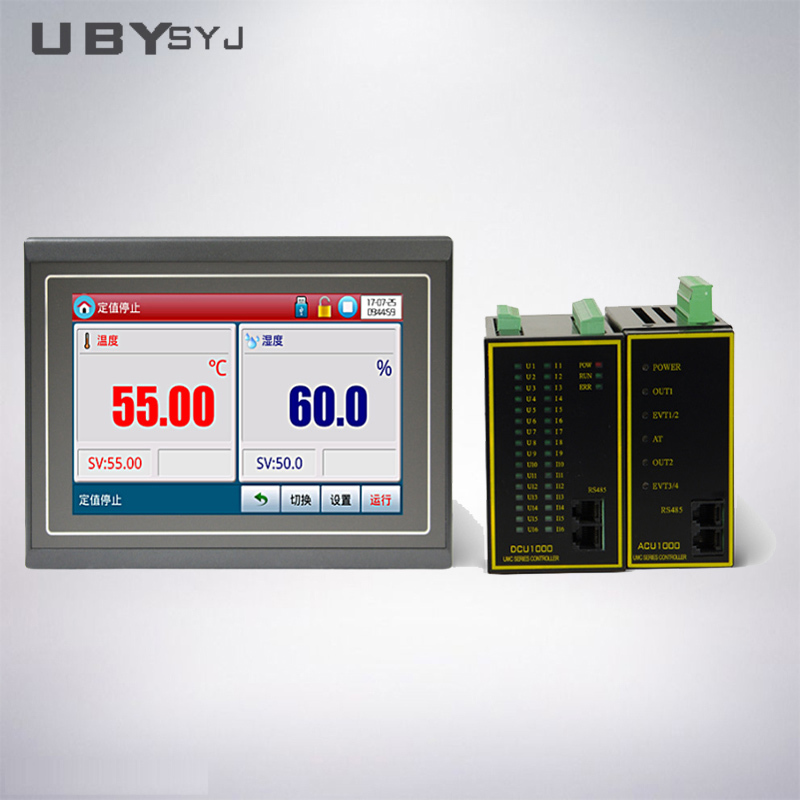

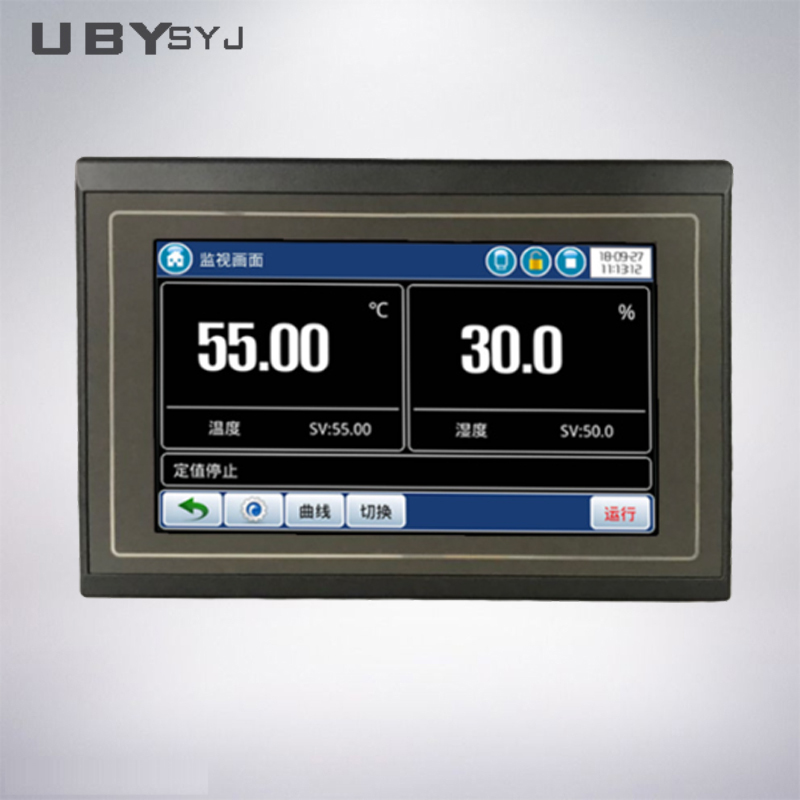

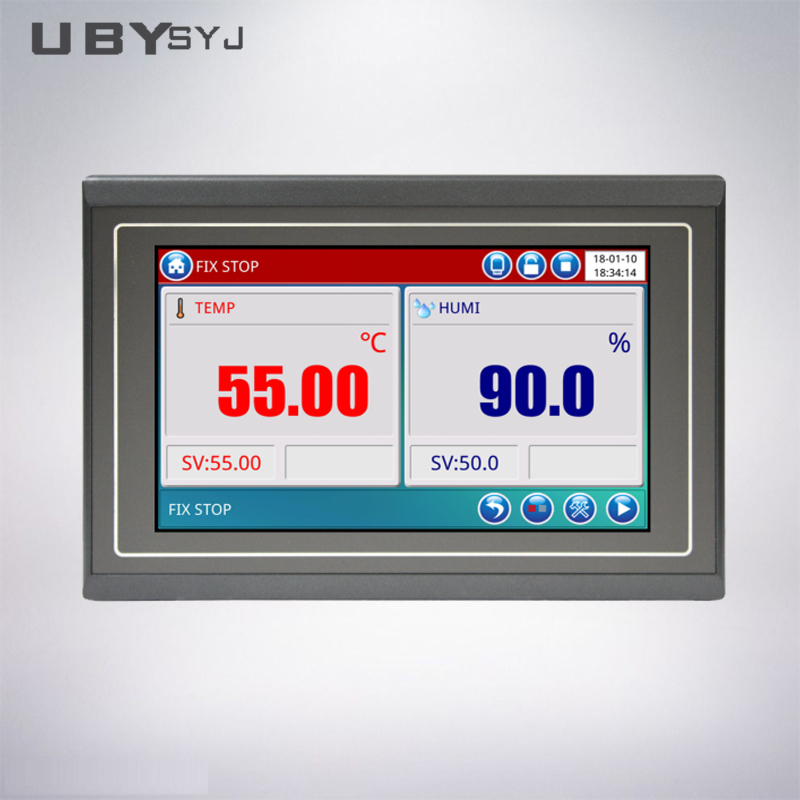

Programmable Industrial Controller for Environmental Test Chamber & Aging Oven 7-Inch TEMI9000

Product Description

Programmable Industrial Controller for Environmental Test Chamber & Aging Oven 7-Inch TEMI9000

Product Overview

TEMI9000 7-inch touch programmable temperature & humidity controller supports both single temperature and temperature-humidity integrated control. This controller is universally applicable to hot air circulating ovens, constant temperature humidity chambers, high-low temperature cabinets, thermal shock testers, HAST accelerated aging machines, and various custom environmental test furnaces. It provides precise programmable temperature/humidity control, airflow regulation, and complete safety protection for all industrial reliability testing equipment.

Technical Specifications

Item	Technical Parameter
Display Screen	7-inch TFT true color touch screen, 800×480 resolution
Body Thickness	38 mm ultra-thin embedded design
Overall Dimension	W201 × H140 × D38 mm
Panel Embedding Cut Size	W189 × H128 mm
Operation Language	Switchable Chinese / English bilingual interface
Operating Environment Temperature	0℃ ~ +50℃
Storage Temperature	-20℃ ~ +70℃
Standard Sensor Input	PT100 platinum thermal resistance
Optional Sensor	K-type thermocouple
Temperature Measuring Range	-90.0℃ ~+300.0℃
Temperature Display Resolution	0.1℃
Temperature Measuring Accuracy	±0.2℃
Steady Temperature Fluctuation	≤±0.5℃
Storable Recipe Groups	120 groups independent test programs
Segments per Single Recipe	Max 100 temperature / time segments
Control Modes	Heating, constant temperature holding, cooling, cycle operation
Timing Range	0 ~ 9999 min per segment
Heating Rate Adjustment	2 ~ 6℃/min customizable
Built-in Function	Auto PID self-tuning, no temperature overshoot
Airflow Output Signal	4~20mA analog output for fan speed regulation (0.5~1.5m/s)
Digital Input DI	16 channels passive input (door interlock, overheat alarm, fault detection)
Relay Output DO	16 channels relay output (heater, circulation fan, exhaust, buzzer alarm)
Main Control Output	SSR pulse voltage output for heating tubes
Humidity Module (Optional)	Independent humidity input & control output for temperature-humidity chambers
Real-time Display	On-screen temperature curve dynamic display
Storage Method	Built-in local storage + USB flash disk export
Export Format	Universal CSV data file for lab audit records
Communication Interface	RS232, RS485, LAN Ethernet, USB Host
Remote Function	Remote parameter setting, real-time monitoring, program upload/download
Rated Power Supply	DC 24V
Power Consumption	Max 25W
Applicable Equipment	Hot air circulating oven, temperature & humidity chamber, thermal shock test chamber, aging test box, PCT/HAST accelerated aging machine

Safety Protection Functions

Over-temperature automatic power-off protection
Chamber door interlock (stop heating & fan once door opens)
Power-off memory for unfinished running programs
Over-current circuit protection
Automatic fault code pop-up reminder

Our Service Process

During the entire business process, we offer consultative selling services:

Customer Inquiry Process

Discussing testing requirements and technical details, suggesting suitable products to customers for confirmation. Then quote the most appropriate price according to customer requirements.

Specifications Customize Process

Drawing related drawings to confirm with customers for customized requirements. Offering reference photos to show product appearance. Then confirming the final solution and price with the customer.

Production and Delivery Process

Producing machines according to confirmed PO requirements. Providing photos to show the production process. After completion, offering photos for customer confirmation. Performing factory calibration or third-party calibration as required. Checking and testing all details before arranging packing. Delivering products within confirmed shipping time.

Installation and After-Sales Service

Defining installation procedures for field implementation and providing comprehensive after-sales support.

Frequently Asked Questions

Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. Generally, we offer 12 months for FREE maintenance, while considering sea transportation, we can extend 2 months for our customers.

If your machine doesn't work, you can send us an email or call us. We will try our best to identify the problem through conversation or video chat if necessary. Once we confirm the problem, a solution will be offered within 24 to 48 hours.

What about the delivery term?

For our standard machines with available stock: 3-7 working days

For machines without stock: Normally 15-20 working days after payment is received

For urgent requirements: We will make special arrangements

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard machines and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the machine.

How can I install and use the machine?

Once you order testing machines from us, we will send you the operation manual or video in English version through email. Most of our machines are shipped as complete units, meaning they are already installed. You just need to connect the power cable and start using them. If necessary, we can also assist with on-site installation.
