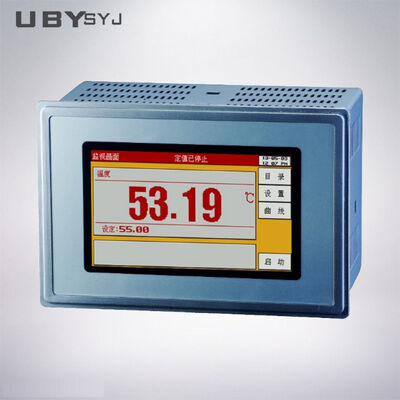

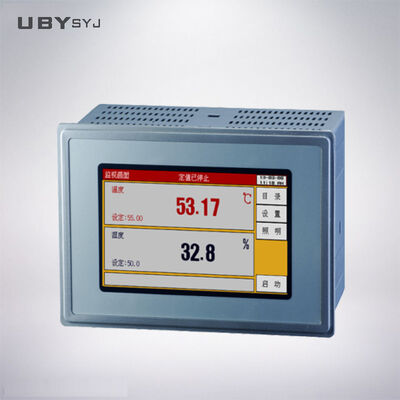

TEMI580 is a cost-effective programmable temperature and humidity controller specifically designed for environmental testing equipment, including constant temperature and humidity chambers. It is ideal for constant temperature and humidity testing or simple high and low temperature applications.
While featuring programmable functionality, the controller has limited capacity for complex curves and may require manual intervention for advanced programming.
| Item | Specification |
|---|---|
| Screen Specifications | 5-inch Color TFT Touchscreen, 480*272 Resolution |
| Control Modes | Fixed Value Run / Program Run (Programmable) |
| Installation Method | Embedded Panel Installation |
| Sensor Type | 2 Thermal Resistance PT100 (optional electronic sensor input) |
| Temperature Range | -90.0ºC ~ +200.0ºC (Customizable -90ºC ~ +300ºC) |
| Control Accuracy | ±0.2ºC |
| Humidity Range | 1.0%~100% RH |
| Humidity Accuracy | ± 1% RH |
| Program Capacity | 10 Sets of Programs Can Be Edited, Maximum of 12 Segments Per Set |
| Communication Interface | RS232 / RS485, Max Communication Distance 1.2km |
| Data Export | Can connect to a printer or PC, records temperature & humidity change curves |
| Access Management | Three-level Authority + Electronic Signature, Complies with US GMP Standards |
| Alarm Signal | 4 DI External Failure Alarms |
| Dimensions (W*H*D) | 180*120*100mm |
| Panel Cutout (W*H) | 170*110mm |
| Power Supply | 100-240VAC,50/60Hz, The maximum power consumption is about 15VA |
