Industrial Constant Walk-in Humidity Temperature Test Chamber With Rapid Cycling
Product Overview
This chamber simulates various environmental conditions to test material performance characteristics including heat resistance, dry resistance, humidity resistance, and cold resistance. It enables precise definition of material performance parameters for critical applications.
Industry Applications
Primarily utilized in defense industry, aviation industry, automotive components, electronic components, plastics industry, food industry, and related product development and engineering test specifications.
Key Features
- Internationally renowned brand compressors and refrigeration components ensure system stability
- Comprehensive fault diagnosis with clear display and easy troubleshooting
- Specialized air circulation design for superior temperature and humidity distribution uniformity
- Advanced microcomputer controller with color touch screen, bilingual interface (Chinese/English), and comprehensive functionality
- Super quiet operation design effectively reduces equipment running noise
- Multiple safety protections including refrigerant high pressure protection, compressor overload protection, current overload protection, overtemperature protection, and leakage protection
Technical Specifications
| Parameter |
Specification |
| Model |
UP-6195 |
| Inner Dimensions W×H×D (mm) |
50×40×40, 50×60×50, 60×85×80, 100×100×80, 100×100×100 |
| Outside Dimensions W×H×D (mm) |
92×138×108, 102×146×116, 102×162×126, 158×195×148, 158×193×168 |
| Inner Chamber Volume (V) |
80L, 150L, 408L, 800L, 1000L |
| Temperature & Humidity Control Range |
-20°C~150°C, -40°C~150°C, -70°C~150°C, RH20%-98% |
| Temperature & Humidity Fluctuation |
±0.5°C; ±2.5%RH |
| Temperature & Humidity Deviation |
±0.5°C-±2°C; ±3%RH(>75%RH); ±5%RH(≤75%RH) |
| Controller Resolution |
±0.3°C; ±2.5%RH |
| Controller Brand |
Korea TEMI880 |
| Heating Time (RT-HT) °C/min |
100°C: 40 min, 150°C: 50 min |
| Cooling Time (RT-LT) °C/min |
-20°C: 40 min, -40°C: 50 min, -60°C: 55 min, -70°C: 80 min |
| Power Supply (KW) |
4.0, 6.0, 6.0, 6.0 |
| Inner Material |
SUS 304# steel plate |
| Outside Material |
SUS 304# steel plate (surface treatment) |
| Thermal Insulation Material |
Thermostability high density chlorine formic acid foam insulator material |
| System Air Circulation |
Centrifugal fan-broadband enforce circulation |
| Refrigeration Method |
Single stage compression refrigeration |
| Refrigerator |
Whole sealing piston France Taikang brand Compressor |
| Refrigerant |
R404A or USA Dupont environmental protection refrigerant (R23+R404) |
| Condensation Method |
Forced air cooling or water-cooling |
| Heater |
Nichrome heating wire heating |
| Humidifier |
Semi-enclosed steam humidification |
| Water Supply Method |
Full-automatic periodical feeding |
| Standard Configuration |
Observation window (double-deck cavity toughened glass), 50mm test hole, PL inner chamber lamp, 2 clapboards, wet and dry bulb, 3 fuses, power line |
| Safety Devices |
Non-fuse switch, compressor overload, refrigerant high/low pressure, over-humidity and temperature protection, protection switch, fuse stoppage warning system |
| Power Requirements |
1φ 220V AC±10% 50/60Hz, 3φ 380V AC±10% 50/60Hz |

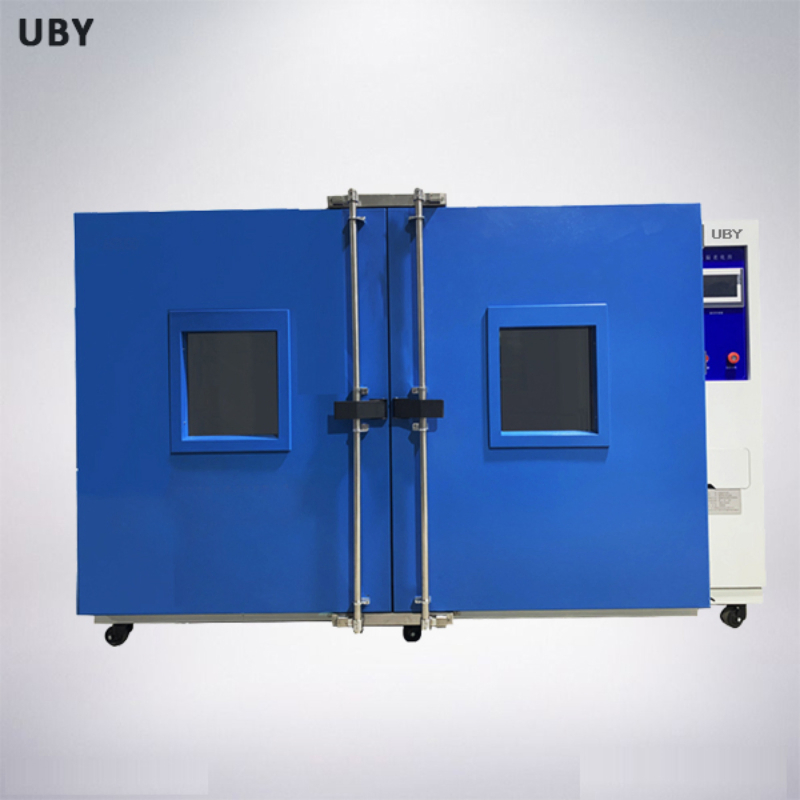

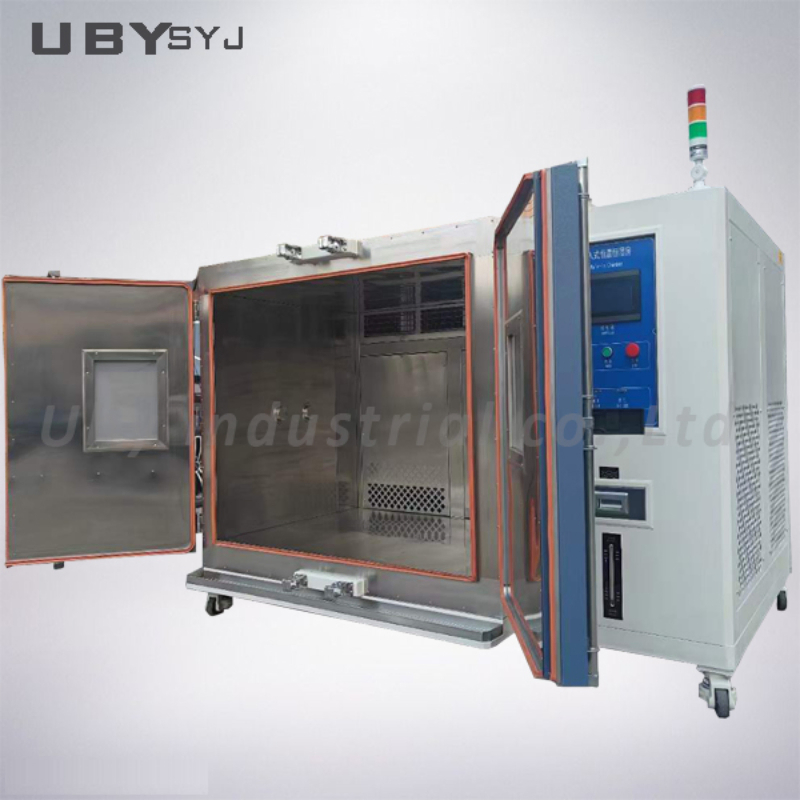

Product Images
Our Service
Consultative Selling Process
Customer Inquiry Process
Discussion of testing requirements and technical details, product recommendations based on customer needs, and quotation of suitable pricing.
Specifications Customization Process
Creation of technical drawings for customized requirements, provision of reference photos for product appearance, and confirmation of final solution and pricing.
Production and Delivery Process
Manufacturing according to confirmed purchase order requirements, provision of production progress photos, final product confirmation, factory or third-party calibration, comprehensive testing, and timely delivery coordination.
Installation and After-Sales Service
On-site installation support and comprehensive after-sales service provision.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment, with 12 months of free maintenance. Considering sea transportation, we extend this to 14 months for international customers. For technical issues, contact us via email or phone for diagnosis and resolution within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Expedited arrangements available for urgent requirements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to specific requirements. We provide OEM and ODM services including logo application.
How can I install and use the machine?
We provide comprehensive English operation manuals and videos via email. Most machines are shipped fully assembled, requiring only power connection. On-site installation assistance is available when necessary.
