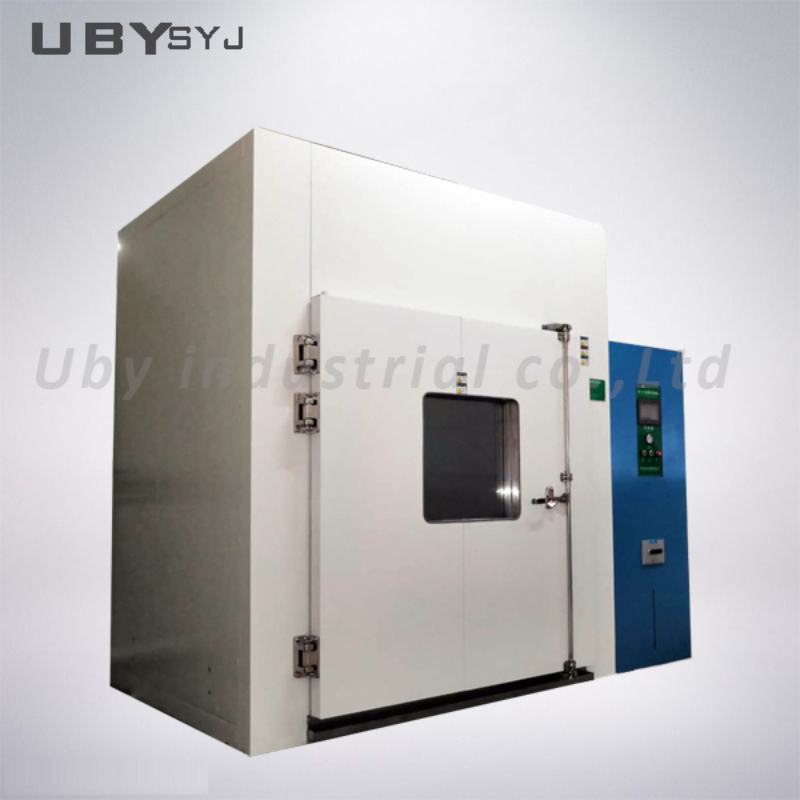

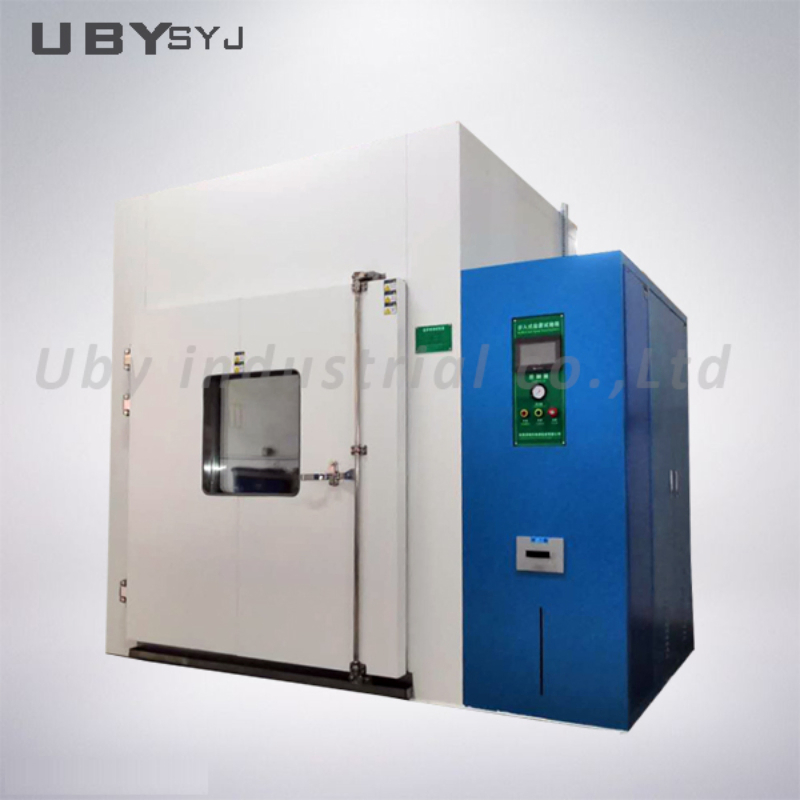

Salt Spray Corrosion Aging Testing Chamber determines the corrosion resistance of iron metal or inorganic/organic film tests for various industries including automotive electronics, lighting, electrical products, watches, hardware, communication equipment, aerospace, and more. Interior testing chamber can be custom made according to specific application requirements.
| Parameter | UP6197-60 | UP6197-90 | UP6197-120 |
|---|---|---|---|
| Internal Dimension WxHxD (mm) | 600x400x450 | 900x500x600 | 1200x500x800 |
| External Dimension WxHxD (mm) | 1100x600x1200 | 1400x1200x900 | 2100x1400x1300 |
| Lab Temperature | Saline test (NSS ACSS) 35±1°C; Corrosion Test (CASS) 50±1°C | ||
| Pressure Bucket Temperature | Saline test method (NSS ACSS) 47±1°C / Corrosion Test (CASS) 63±1°C | ||
| Lab Capacity (L) | 270 | 480 | 640 |
| Saline Capacity (L) | 25 | 40 | 40 |
| Saline Concentration | 5% concentration of NaCl, or every Liter 5% NaCl add 0.26g CuCl2H2O | ||
| Compressed Air Pressure | 1.0~6.0 Kgf | ||
| Spray Volume | 1.0~2.0ml /80cm² /h (working at least 16 hours, and take the average value) | ||
Yes, we are professional manufacturers of Environmental Chambers and testing equipment. All machines include 12-month warranty with free maintenance, extendable to 14 months considering sea transportation. Technical support available via email, phone, or video chat with solutions provided within 24-48 hours.
Standard machines: 3-7 working days (in stock) or 15-20 working days (no stock). Urgent orders receive special arrangements.
Yes, we offer both standard and customized machines according to specific requirements, including OEM and ODM services with logo placement.
Complete operation manuals and videos provided in English. Most machines ship fully assembled - simply connect power and begin operation. On-site installation assistance available when necessary.
