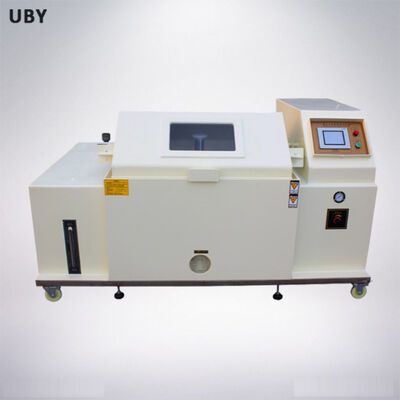

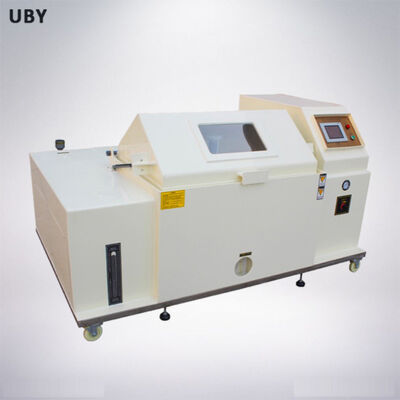

Name: Advanced Cyclic Salt Spray Test Chamber with Humidity Control 1.0~2.0ml Spray Volume and 1.0~6.0 Kgf Compressed Air Pressure
Brand: Dongguan Youbi Test Equipment Co.,Ltd
SKU: UP-6197
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Product Name: Salt Spray Test Chamber

Spray Volume: 1.0~2.0ml /80cm2 /h(working At Least 16 Hours, And Take The Average Value)

Compressed Air Pressure: 1.0~6.0 Kgf

Warranty: 1 Year

Custom Service: OEM,ODM

Third-Party Calibration Service: Support Customer Customization

Highlight:

Humidity Control Salt Spray Test Chamber

1.0~2.0ml Spray Volume Cyclic Corrosion Test Chamber

1.0~6.0 Kgf Compressed Air Pressure Environmental Test Chamber

Basic Infomation

Place of Origin: CHINA

Brand Name: YOUBI

Certification: CE,ISO

Model Number: UP-6197

Payment & Shipping Terms

Packaging Details: Professional Export Wooden Box Packaging

Delivery Time: 5-15 work days

Payment Terms: T/T,D/P,Western Union,Paypal,Money Gram

Supply Ability: 30 Unit/month

Gallery

Advanced Cyclic Salt Spray Test Chamber with Humidity Control 1.0~2.0ml Spray Volume and 1.0~6.0 Kgf Compressed Air Pressure

Product Description

UP-6197 Advanced Cyclic Salt Spray Test Chamber with Humidity Control

Product Overview

The Advanced Cyclic Salt Spray Test Chamber with Humidity Control determines corrosion resistance of ferrous metals, inorganic coatings, and organic coatings. Suitable for automotive components (rearview mirrors, audio systems, electronics, lighting), electrical products, watches, hardware, outdoor lighting, communications equipment, locomotives, instrumentation, aerospace components, and waterproof seals.

Compliance Standards

CNS: 3627, 3385, 4159, 7669, 8886
JIS: D0201, H8502, H8610, K5400, Z2371
ISO: 3768, 3769, 3770
ASTM: 8117, B268

Technical Specifications

Parameter	UP-6197-60	UP-6197-90	UP-6197-120
Internal Dimension W×H×D (mm)	600×400×450	900×500×600	1200×500×800
External Dimension W×H×D (mm)	1100×600×1200	1400×1200×900	2100×1400×1300
Lab Temperature	Saline test (NSS ACSS) 35±1°C; Corrosion Test (CASS) 50±1°C
Pressure Bucket Temperature	Saline test (NSS ACSS) 47±1°C; Corrosion Test (CASS) 63±1°C
Lab Capacity (L)	270	480	640
Saline Capacity (L)	25	40	40
Saline Concentration	5% NaCl concentration, or 0.26g CuCl₂·2H₂O per liter of 5% NaCl
Compressed Air Pressure	1.0~6.0 kgf
Spray Volume	1.0~2.0 ml/80cm²/h (16-hour minimum operation, average value)

Key Features

Constructed with tank, pneumatic system, heating unit, and control system
Tank made from imported anti-corrosive, high-temperature resistant, aging-resistant PVC plate with high-temperature welded joints for easy cleaning and leak prevention
Transparent fiberglass upper cover for sample observation and spray monitoring
Water-sealed tank-cover junction prevents salt fog overflow during operation
Multiple rack layers accommodate samples in various orientations
Tower-type spray system ensures uniform fog distribution and prevents salt crystal formation
Independent heating system for optimal thermal performance
RKC temperature controller with PID function for high accuracy and long service life
Wire control panel and components located on tank right side with lockable access door for maintenance

Product Images

Our Service Process

Customer Inquiry: Technical requirement discussion, product recommendation, and quotation
Customization: Technical drawings, reference photos, and final solution confirmation
Production & Delivery: Manufacturing according to PO requirements, production progress photos, factory calibration, and shipping coordination
Installation & Support: Field installation and comprehensive after-sales service

Frequently Asked Questions

Are you a manufacturer? Do you offer after-sales service? How can I request service? What is the warranty?

Yes, we are professional manufacturers of Environmental Chambers, Leather Shoe Testing Equipment, and Plastic Rubber Testing Equipment. All machines include a 12-month warranty after shipment, with free maintenance for 12 months (extendable to 14 months considering sea transportation). For technical issues, contact us via email or phone - we provide solutions within 24-48 hours through remote diagnostics including video chat if necessary.

What is the delivery timeframe?

Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment confirmation. Urgent requirements receive priority scheduling.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to specific requirements. We provide OEM and ODM services including custom branding with your logo.

How do I install and operate the machine?

We provide comprehensive English operation manuals and videos via email. Most machines ship fully assembled - simply connect power and begin operation. On-site installation assistance available when required.
