Home /Products/Environmental Test Chamber/UP-6118 Stainless Steel304 Three Phase Thermal Shock Testing Chamber with Rapid Temperature Conversion for Semiconductor Test

UP-6118 Stainless Steel304 Three Phase Thermal Shock Testing Chamber with Rapid Temperature Conversion for Semiconductor Test

1 Unit
MOQ
Negotiable
Price
UP-6118 Stainless Steel304 Three Phase Thermal Shock Testing Chamber with Rapid Temperature Conversion for Semiconductor Test
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 1 Year
Additional Service: Support Customer Customization
Custom Service: OEM,ODM
Color Service: Support Customer Customization
Size Service: Support Customer Customization
Third-Party Calibration Service: Support Customer Customization
Internal Material: Stainless Steel304
External Material: Stainless Steel/Spray Paint
Specification: Refer To The Actual Size Specifications
Product Name: Constant Temperatrue And Humidity Chamber
Warranty: 1 Year
Additional Service: Support Customer Customization
Custom Service: OEM,ODM
Color Service: Support Customer Customization
Size Service: Support Customer Customization
Third-Party Calibration Service: Support Customer Customization
Internal Material: Stainless Steel304
External Material: Stainless Steel/Spray Paint
Specification: Refer To The Actual Size Specifications
Highlight:

Stainless Steel304 Thermal Shock Testing Chamber

,

Three Phase Environmental Test Chamber

,

Rapid Temperature Conversion Three Phase Test Chamber
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6118
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5-15 work days
Payment Terms: T/T,D/P,Western Union,Paypal,Money Gram
Supply Ability: 30 Unit/month
Product Description
UP-6118 Reliable Stable Three Phase Thermal Shock Testing Chamber for Semiconductor Test
The UP-6118 Thermal Shock Testing Chamber is a state-of-the-art testing instrument engineered to assess the robustness of material structures and composite materials subjected to rapid and consecutive transitions between elevated-temperature and cryogenic-temperature environments. This chamber facilitates the evaluation of materials within the most expedient time frame, ascertaining the magnitude of thermal expansion and contraction, along with any concomitant chemical alterations or physical impairments.
UP-6118 Stainless Steel304 Three Phase Thermal Shock Testing Chamber with Rapid Temperature Conversion for Semiconductor Test 0
Key Features
  • High temperature groove, low temperature groove, and test groove are static
  • Shock method uses wind path changing to direct high and low temperature air to test area
  • Configurable rotation times and defrost times

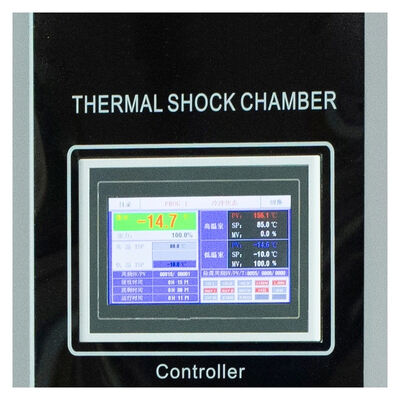

  • Touch color liquid controller for easy operation and stability
  • High temperature accuracy using PID calculation methods
  • Selectable start-move position with high and low temperature rotation
  • Real-time test curve display during operation
  • Fast two-box structure conversion speed with short recovery time
  • Strong refrigeration system with imported compressor for rapid cooling
  • Complete and reliable safety protection devices
  • High reliability design suitable for 24-hour continuous testing
Technical Specifications
Parameter Specification
Size (mm) 600 × 850 × 800
Temperature Range High greenhouse: ambient ~ +150°C
Low greenhouse: ambient ~ -50°C
Temperature Uniformity ±2°C
Temperature Conversion Time 10 seconds
Temperature Recovery Time 3 minutes
Material Shell: SUS304 stainless steel plate
Liner: SUS304 stainless steel plate
Refrigeration System Dual reciprocating compressors (water-cooled)
French Taikang compressor group
Environmentally friendly refrigerant
Control System Korean imported programmable temperature controller
Temperature Sensor PT100 × 3
Setting Range Temperature: -70.00 to +200.00°C
Resolution Temperature: 0.01°C / Time: 1 minute
Output Type PID + PWM + SSR Control mode
Simulation Load (IC) 4.5kg
Cooling System Water cooled
Compliance Standards GB, GJB, IEC, MIL corresponding test standards
Power Supply AC380V/50HZ Three-phase four-wire AC power
Expansion Features Diffuser and return air palate control device
CM BUS (RS-485) remote monitoring
LN2 liquid nitrogen quick cooling control

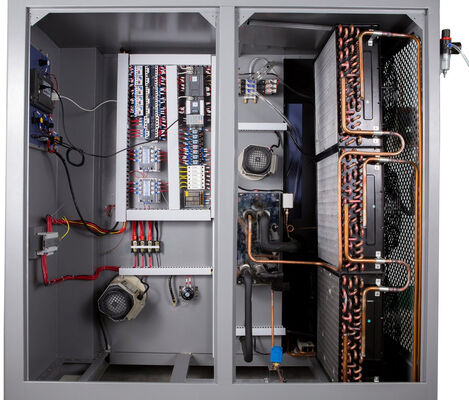

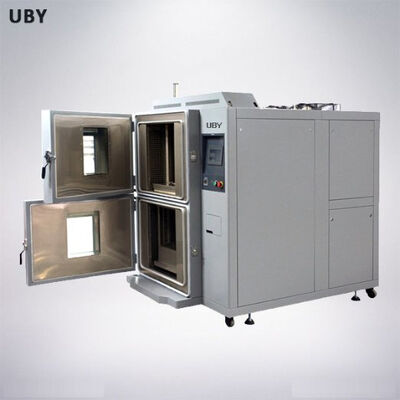

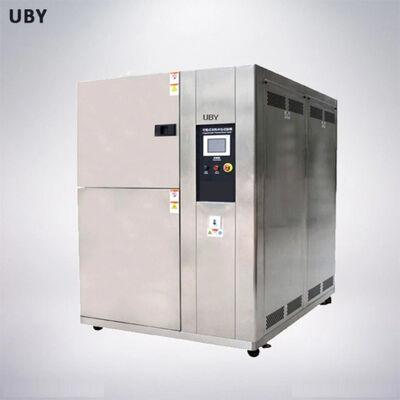

Product Gallery   UP-6118 Stainless Steel304 Three Phase Thermal Shock Testing Chamber with Rapid Temperature Conversion for Semiconductor Test 1    UP-6118 Stainless Steel304 Three Phase Thermal Shock Testing Chamber with Rapid Temperature Conversion for Semiconductor Test 2
Our Service Commitment
We offer comprehensive consultative selling services throughout the entire business process:
Customer Inquiry Process
Discussing testing requirements and technical details, suggesting suitable products, and providing competitive pricing according to customer requirements.
Specifications Customization Process
Creating detailed drawings for customized requirements, providing reference photos for product appearance, and confirming final solutions and pricing.
Production and Delivery Process
Manufacturing according to confirmed PO requirements, providing production progress photos, conducting factory or third-party calibration, and ensuring timely delivery.
Installation and After-Sales Service
Providing field installation support and comprehensive after-sales service to ensure optimal performance.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment with free maintenance. For sea transportation, we extend to 14 months. If your machine requires service, contact us via email or phone - we provide solutions within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent requirements receive special priority arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and fully customized machines according to your requirements. We provide OEM and ODM services including custom branding and logos.
How can I install and use the machine?
We provide comprehensive English operation manuals and videos. Most machines ship fully assembled - simply connect power and begin operation. On-site installation assistance is available when necessary.
