UP-6195 Mini Climate Chamber with Temperature Range -40ºC~150ºC Humidity Range Rh20%-98% and Customizable Size

1 Unit
MOQ
$599~$8999
Price
UP-6195 Mini Climate Chamber with Temperature Range -40ºC~150ºC Humidity Range Rh20%-98% and Customizable Size
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Mini Temperatrue And Humidity Chamber
Model NO.: UP-6195
Temperature Range: -40ºC~150ºC
Humidity Range: Rh20%-98%
Temperature Fluctuation: ±0.5ºC
Humidty Fluctuation: ±2.5%Rh
Warranty: 1 Year
Custom Service: OEM,ODM
Additional Service: Support Customer Customization
Size Service: Support Customer Customization
Third-Party Calibration Service: Support Customer Customization
Specification: Refer To The Actual Size Specifications
Highlight:

Temperature Range -40ºC~150ºC Climate Chamber

,

Humidity Range Rh20%-98% Environmental Test Chamber

,

Customizable Size Mini Climate Chamber
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6195
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5~15 work days
Payment Terms: T/T; D/P; Wester Union; Paypal; Money Gram
Supply Ability: 30 Unit/month
Product Description
UP-6195 Small Climate Chamber - Temperature and Humidity Control
This compact climate chamber simulates various environmental conditions for testing material performance under heat, dry, humidity, and cold exposure. Ideal for defining material characteristics and durability.
Applications
Designed for material performance testing including heat resistance, dry resistance, humidity resistance, and cold resistance evaluation.
Design Standards
GB2423/T5170/10586/10592, IEC68, GJB150, JIS C60068, ASTM D4714, CNS3625/12565/12566
Technical Specifications
Parameter Specification
Model UP-6195
Inner Dimensions (W×H×D) 500 × 400 × 400 mm
Outside Dimensions (W×H×D) 920 × 1380 × 1080 mm
Chamber Volume 80L
Temperature Range -40°C to 150°C
Humidity Range RH 20% to 98%
Temperature Fluctuation ±0.5°C
Humidity Fluctuation ±2.5% RH
Temperature Deviation ±0.5°C to ±2°C
Humidity Deviation ±3% RH (>75% RH); ±5% RH (≤75% RH)
Controller Resolution ±0.3°C; ±2.5% RH
Controller Brand Korea TEMI880
Performance Data
Heating Time (RT to HT) Cooling Time (RT to LT)
100°C: 40 min
150°C: 50 min		 -20°C: 40 min
-40°C: 50 min
-60°C: 55 min
-70°C: 80 min
Construction & Components
  • Material: Inner & outer SUS 304# steel plate
  • Insulation: High-density chlorine formic acid foam
  • Air Circulation: Centrifugal fan broadband enforced circulation
  • Refrigeration: Single stage compression
  • Compressor: France Taikang brand (fully sealed piston)
  • Refrigerant: R404A or Dupont R23+R404
  • Condensation: Forced air cooling or water-cooling
  • Heater: Nichrome heating wire
  • Humidifier: Semi-enclosed steam humidification
  • Water Supply: Full-automatic periodical feeding
Standard Configuration
  • Double-deck cavity toughened glass observation window
  • 50mm test hole in left side
  • PL inner chamber lamp
  • 2 clapboards
  • Wet and dry bulb set
  • 3 fuses
  • Power cable
Safety Features
  • Non-fuse switch compressor overload protection
  • Refrigerant high/low pressure protection
  • Over-humidity and temperature protection
  • Protection switch and fuse stoppage warning system
Power Requirements
1φ 220V AC ±10% 50/60Hz or 3φ 380V AC ±10% 50/60Hz
Product Images

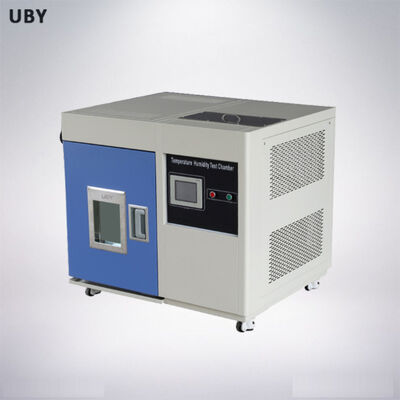

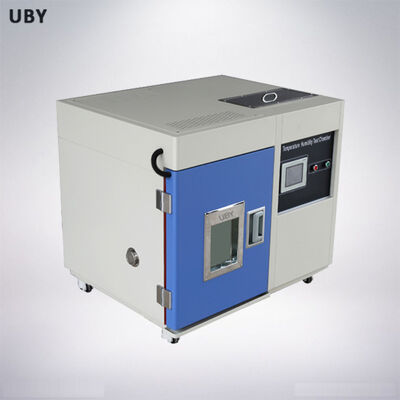

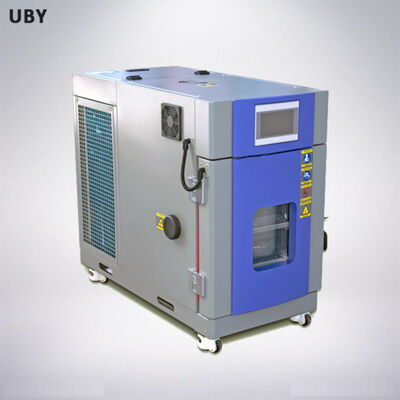

UP-6195 Mini Climate Chamber with Temperature Range -40ºC~150ºC Humidity Range Rh20%-98% and Customizable Size 0 UP-6195 Mini Climate Chamber with Temperature Range -40ºC~150ºC Humidity Range Rh20%-98% and Customizable Size 1 UP-6195 Mini Climate Chamber with Temperature Range -40ºC~150ºC Humidity Range Rh20%-98% and Customizable Size 2 UP-6195 Mini Climate Chamber with Temperature Range -40ºC~150ºC Humidity Range Rh20%-98% and Customizable Size 3
Our Service Process
Consultative Selling Approach
  • Inquiry Process: Technical discussion, product recommendation, and competitive pricing
  • Customization: Detailed drawings, reference photos, and final solution confirmation
  • Production & Delivery: Progress updates, factory calibration, quality testing, and timely shipping
  • Installation & Support: Field installation and comprehensive after-sales service
Frequently Asked Questions
Are you a manufacturer? What about warranty and after-sales service?
Yes, we are professional manufacturers of environmental chambers and testing equipment. All machines include 12-month warranty with extended coverage for sea transportation. We provide free maintenance and 24-48 hour technical support response.
What is the delivery time?
Standard machines: 3-7 days (in stock) or 15-20 working days (production). Urgent orders receive special priority scheduling.
Do you accept customization and OEM services?
Yes, we offer both standard and customized machines with OEM/ODM services including logo placement.
How do I install and operate the machine?
We provide English operation manuals and videos. Most machines ship fully assembled - simply connect power and begin operation. On-site installation assistance available when needed.
