High Precision Environmental Test Chamber Temperature And Humidity Controlled Chamber UP-6195

1 Unit
MOQ
Negotiable
Price
High Precision Environmental Test Chamber Temperature And Humidity Controlled Chamber UP-6195
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Constant Temperatrue And Humidity Chamber
Model NO.: UP-6195
Temperature Range: -70~180ºC
Humidity Range: 20%~98%
Warranty: 1 Year
Additional Service: Support Customer Customization
Custom Service: OEM,ODM
Size Service: Support Customer Customization
Highlight:

High Precision Environmental Test Chamber

,

High Precision Environmental Temperature Chamber

,

Temperature And Humidity Controlled Chamber UP-6195
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6195
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5-15 work days
Payment Terms: T/T,D/P,Western Union,Paypal,Money Gram
Supply Ability: 30 Unit/month
Product Description
High-Precision Environmental Temperature Humidity Control Test Chamber
Product Overview

Environmental Chamber Temperature Humidity Control Test Chamber designed for simulating various environmental conditions to test material performance including heat resistance, dry resistance, humidity resistance, and cold resistance.

Design Standards

GB2423/T5170/10586/10592, IEC68, GJB150, JIS C60068, ASTM D4714, CNS3625/12565/12566

Technical Specifications
Parameter Specifications
Model UP-6195
Inner Size W*H*D (mm) 500*400*400, 500*600*500, 600*850*800, 1000*1000*80, 1000*1000*1000
Outside Size W*H*D (mm) 92*138*108, 102*146*116, 102*162*126, 113*172*148, 158*195*148, 158*193*168
Inner Chamber Volume (V) 80L, 150L, 225L, 408L, 800L, 1000L
Temperature & Humidity Control Range -20ºC~150ºC, -40ºC~150ºC, -70ºC~150ºC, RH20%-98%
Temperature & Humidity Fluctuation ±0.5ºC; ±2.5%RH
Temperature & Humidity Deviation ±0.5ºC-±2ºC; ±3%RH(>75%RH); ±5%RH(≤75%RH)
Controller Resolution ±0.3ºC; ±2.5%RH
Controller Brand Korea TEMI880
Heating Time (RT-HT)ºC/min 100 | 150
40 | 50
Cooling Time (RT-LT)ºC/min -20 | -40 | -60 | -70
40 | 50 | 55 | 80
Power Supply KW 4.0, 6.0, 6.0, 6.0
Inner Material SUS 304# steel plate
Outside Material SUS 304# steel plate (surface disposing)
Thermal Insulation Material Thermostability high density chlorine formic acid foam insulator material
System Wind Path Centrifugal fan-broadband enforce circulation
Refrigeration Way Single stage compression refrigeration
Refrigerator Whole sealing piston France Taikang brand Compressor
Freezing Fluid R4O4A or USA Dupont environmental protection refrigerant (R23+R404)
Condensation Way Forced air cooling or water-cooling
Heater Nichrome heating wire heating
Humidifier Semi-enclosed steam humidification
Water-Provide Way Full-automatic periodical feeding
Standard Configuration 1 Observe window (double-deck cavity toughened glass), 1 50mm test hole in the left, 1 PL inner chamber lamp, 2 clapboards, 1 bag of wet and dry bulb, 3 fuses, 1 power line
Safety Device Non-fuse switch compressor overload, refrigerant high low voltage, over-humidity and temperature protection, Protection switch, fuse stoppage warning system
Power 1φ 220V AC±10% 50/60Hz, 3φ 380V AC±10% 50/60Hz
Product Images

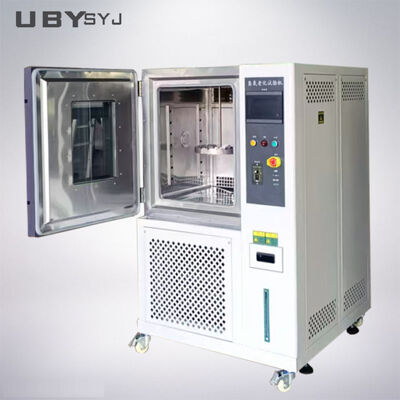

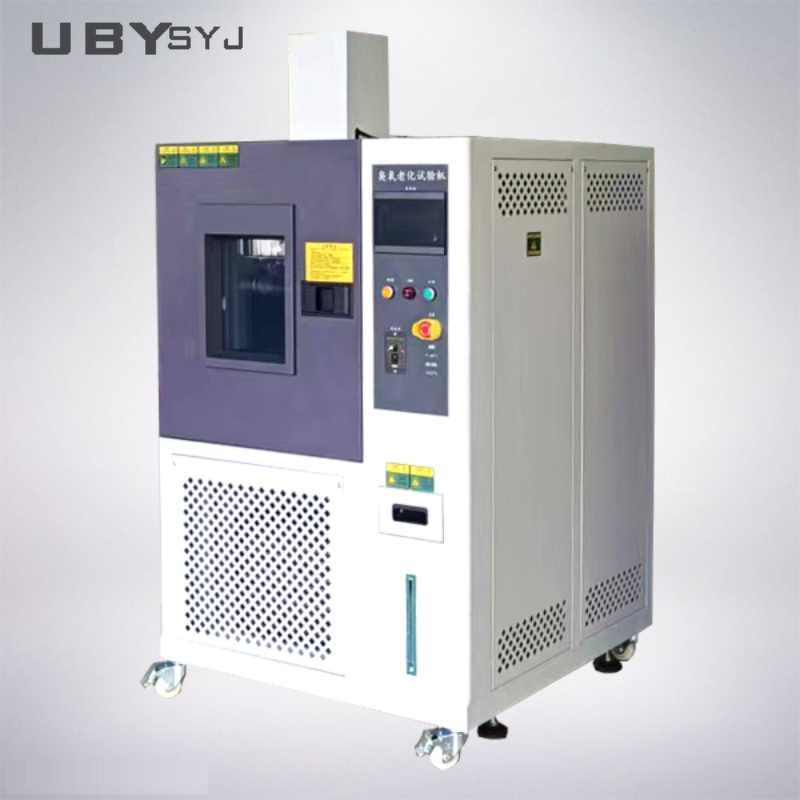

High Precision Environmental Test Chamber Temperature And Humidity Controlled Chamber UP-6195 0 High Precision Environmental Test Chamber Temperature And Humidity Controlled Chamber UP-6195 1
Our Service
  • Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
  • Specifications Customize Process: Create drawings and reference photos for custom requirements, confirm final solution and pricing
  • Production and Delivery Process: Manufacture according to confirmed requirements, provide production photos, conduct calibration, and arrange shipping
  • Installation and After-Sale Service: On-site installation and comprehensive after-sales support
Frequently Asked Questions
  • Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
    Yes, we are professional manufacturers of Environmental Chambers and testing equipment. Every machine includes 12-month warranty with extended support for international shipping. Technical support available via email, phone, or video chat with solutions provided within 24-48 hours.
  • What about the delivery term?
    Standard machines: 3-7 working days if in stock, 15-20 working days if not in stock. Urgent orders accommodated with special arrangements.
  • Do you accept customization services? Can I have my logo on the machine?
    Yes, we offer both standard and customized machines with OEM and ODM services including logo placement.
  • How can I install and use the machine?
    Machines are shipped fully assembled with English operation manuals and videos. Basic setup requires only power connection, with on-site installation assistance available if needed.
