Name: UP-5005 Compact Electronic Density Tester with 0.001 G/Cm³ Accuracy and Intuitive Touchscreen Interface
Brand: Dongguan Youbi Test Equipment Co.,Ltd
SKU: UP-5005
Price: 299 USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Model NO.: UP-5005

HS Code: 9024800000

Service Support: OEM ODM

Language: Chinese And English

Accuracy: 0.001 G/Cm³

Testing Range: 0.005g-300g

Density Testing Range: 0.001-99.999g/Cm³

Testing Time: About 5s

Highlight:

0.001 G/Cm³ Accuracy Electronic Density Tester

Intuitive Touchscreen Interface Density Meter

Compact Design Density Testing Machine

Basic Infomation

Place of Origin: CHINA

Brand Name: YOUBI

Certification: CE,ISO

Model Number: UP-5005

Payment & Shipping Terms

Packaging Details: Professional export packaging

Delivery Time: 5~10 work days

Payment Terms: D/P,T/T,Western Union

Supply Ability: 10 Unit/month

Gallery

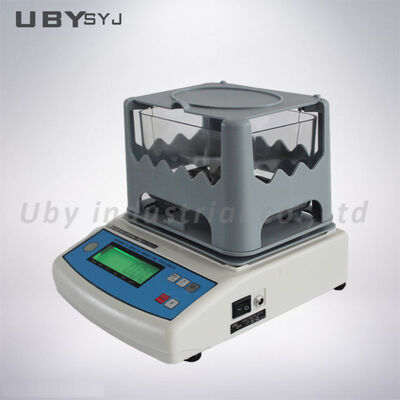

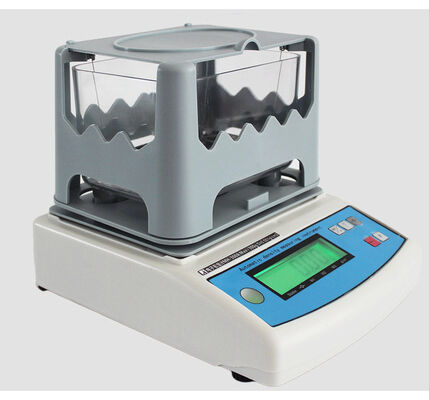

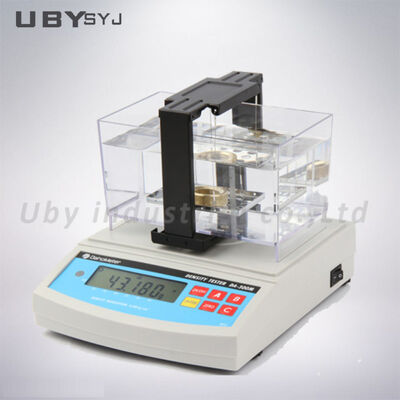

UP-5005 Compact Electronic Density Tester with 0.001 G/Cm³ Accuracy and Intuitive Touchscreen Interface

Product Description

UP-5005 Compact Electronic Density Tester

Advanced density testing instrument featuring an intuitive touchscreen interface for precise material analysis in industrial and laboratory applications.

Applications

Suitable for: Rubber, Plastic, Film, Electric wire, Glass industry, Liquid, Adding additives, and New materials research laboratories.

Measurement Principle

Complies with ASTM, JIS, GB/T, and ISO standards. Utilizes the buoyancy method and water displacement method based on Archimedes principle for accurate and direct density value measurement.

Key Features

Mixture proportion display function for material research and formulation selection
Upper and lower limit settings for density quality control
Rapid measurement capability reducing testing time
RS-232C interface for PC and printer connectivity
Tank design (max sample dimension: W70×D100×H25mm) minimizing buoyancy error from supporting wires
Liquid measurement mode with optional equipment for comprehensive solid and liquid testing

Technical Specifications

Parameter	Specification
Weight	4.4kg
Dimensions (W×H×D)	425 × 175 × 325 mm
Power Supply	AC100~240V / 50HZ
Density Accuracy	0.001g/cm³ \| 0.0001g/cm³
Density Range	0.001-99.999 g/cm³ \| 0.0001-99.9999 g/cm³
Weighing Accuracy	0.005g \| 0.001g
Maximum Weighing	300g \| 120g
Measuring Type	Any solution can be measured
Result Display	Density value
Specific Gravity Frame	Stainless steel specific gravity measuring frame
Function Settings	Temperature, solution density, standard weight value, and water weight value
Calibration Mode	Distilled water validation

Comprehensive Service Support

We provide consultative selling services throughout the entire business process:

Inquiry Process

Technical requirement discussions and product recommendations with competitive pricing.

Customization Process

Detailed drawings and reference photos for customized requirements with final solution confirmation.

Production & Delivery

Production progress updates, factory calibration, quality testing, and timely shipping arrangements.

Installation & After-Sales

Field installation support and comprehensive after-sales service.

Frequently Asked Questions

Are you a manufacturer? What about warranty and after-sales service?

Yes, we are professional manufacturers of environmental chambers and testing equipment. All machines include 12-month warranty with extended coverage for sea transportation. We provide free maintenance and technical support via email, phone, or video chat with solutions offered within 24-48 hours.

What is the delivery time?

Standard machines: 3-7 working days if in stock, 15-20 working days if out of stock. Urgent requirements receive special arrangements.

Do you accept customization and logo placement?

Yes, we offer comprehensive OEM and ODM services including custom specifications and logo placement on machines.

How do I install and operate the machine?

We provide English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance available when necessary.
