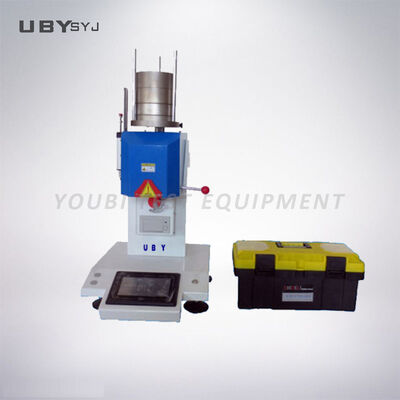

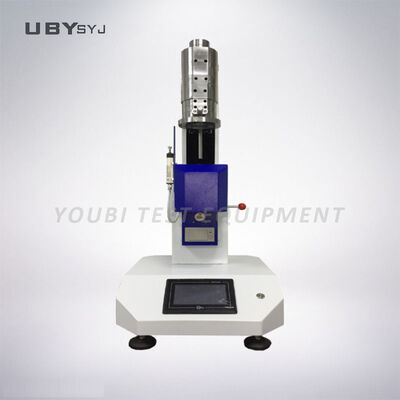

Melt Flow Index Tester UP-5004
A sophisticated precision instrument engineered for accurate measurement of thermoplastic flow rates, featuring a robust space-saving framework designed for long-term reliability in laboratory and production environments.
Applications
This melt flow rate testing instrument determines the melt flow rate (MFR) or melt volume flow rate (MVR) for various plastic materials including ABS, polystyrene, polyethylene, polypropylene, polyamide, fiber resin, acrylate, POM, fluorine plastic, polycarbonate, and more.
Compliance Standards
GB/T3682-2000, ISO1133-97, ASTM1238
Technical Specifications
| Model |
UP-5004 |
| Barrel Parameters |
Inner hole 9.55±0.025mm |
| Piston Parameters |
Piston head: 9.475±0.015mm |
| Piston Length |
H=6.35±0.1mm |
| Extrusion Hole |
1=2.095±0.005mm |
| Temperature Control |
Intelligent temperature control with four-zone regulation, PID auto-setting, precision ±0.1°C |
| Temperature Range |
80°C~400°C |
| Temperature Accuracy |
±0.2°C |
| Display Resolution |
0.1°C |
| Maximum Power Consumption |
< 600W |
| Temperature Recovery Time |
< 4 minutes |
Weight Configuration
| Weight |
Accuracy |
| A: 0.325kg (including binder bar) |
±0.5% |
| B: 1.2 kg |
| C: 2.16 kg |
| D: 3.8 kg |
| E: 5.0 kg |
| F: 10 kg |
| G: 12.5 kg |
| H: 21.6 kg |
Position Detection & Control
Loop distance from up and down: 30mm
Control precision: ±0.1mm
Test Flow Control
Material cutting times: 0-10 times
Material cutting interval: 0-999s
Barrel temperature time: 15 minutes
Material installation: 1 minute
Sample temperature recovery: 4 minutes
Binder set time: 1 minute
Our Service Process
- Customer Inquiry: Discuss testing requirements, suggest suitable products, and provide competitive pricing
- Customization: Create technical drawings, provide reference photos, and confirm final specifications
- Production & Delivery: Manufacture to specifications, provide production updates, conduct calibration, and ensure timely delivery
- Installation & Support: Provide field installation and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment with free maintenance. We extend to 14 months considering sea transportation. For technical support, contact us via email or phone - we diagnose issues through conversation or video chat and provide solutions within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. We accommodate urgent requirements with special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo.
How can I install and use the machine?
We provide English operation manuals and videos. Most machines ship fully assembled - simply connect power and begin operation. We offer on-site installation assistance when necessary.
