ISO11925-2 Building Materials Testing Equipment PLC Control Flammability Test Apparatus UP-5020

1 Unit
MOQ
Negotiable
Price
ISO11925-2 Building Materials Testing Equipment PLC Control Flammability Test Apparatus UP-5020
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-5020
Relative Humidity: ≤85%;
Ambient Temperature: 15ºC~25ºC;
Service Support: OEM ODM
Language: Chinese And English
Applications: Building Materials, Plastic Materials, Wires ,etc.
Specification: Refer To The Actual Size Specifications
Box Size: W835*D400*H815mm
Highlight:

ISO11925-2 Building Materials Testing Equipment

,

PLC Control Flammability Test Apparatus

,

ISO11925-2 Flammability Test Apparatus
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-5020
Payment & Shipping Terms
Packaging Details: Professional Export Packing
Delivery Time: 5-15 work days
Payment Terms: T/T,D/T,Western Union,Paypal
Supply Ability: 30 Unit/month
Product Description
ISO11925-2 PLC Control Building Material Flammability Test Apparatus UP-5020
Product Overview
The flammability test furnace for building materials directly impacts a vertically placed sample with a small flame in a normal combustion environment to determine the flammability of building products. Using the German Kleinbrenner principle, this apparatus measures the combustion performance of Class B building materials under direct flame impact in the vertical direction for flame retardant grade B level assessment.
Compliance Standards
  • ISO11925-2:2002 E "Test method for flammability of building materials"
  • GB/T8626-2007 "Test method for flammability of building materials"
  • DIN53483 DIN 4102-1
Technical Specifications
Ambient Temperature 15ºC~25ºC
Relative Humidity ≤85%
Supply Voltage & Power 220V 50HZ 100W
Gas Source Liquefied petroleum gas
Burner Application Time 15s
Control System Single chip control, digital display
Burner Specifications Φ0.17mm aperture, 20mm±2mm flame length, 45° tilt capability
Flame Application Range 1s-99s (±0.5s), adjustable with ±0.2s accuracy
Combustible Gas Propane with >95% purity
Combustion Box Dimensions W835 × D400 × H815mm
Key Features
  • Ergonomic operation design
  • 1.5mm thick brushed stainless steel plate construction
  • Double-angle observation with tempered heat-resistant glass doors
  • Modified hand-held igniter for durable combustion
  • Ignition source adjustable to vertical or 45 degrees
  • Precision regulating valve for flame height adjustment
  • Sample holder with up/down and back/forth movement capability
  • Equipped with two sample holders
  • Includes flame measuring ruler
  • High automation with accurate experimental data

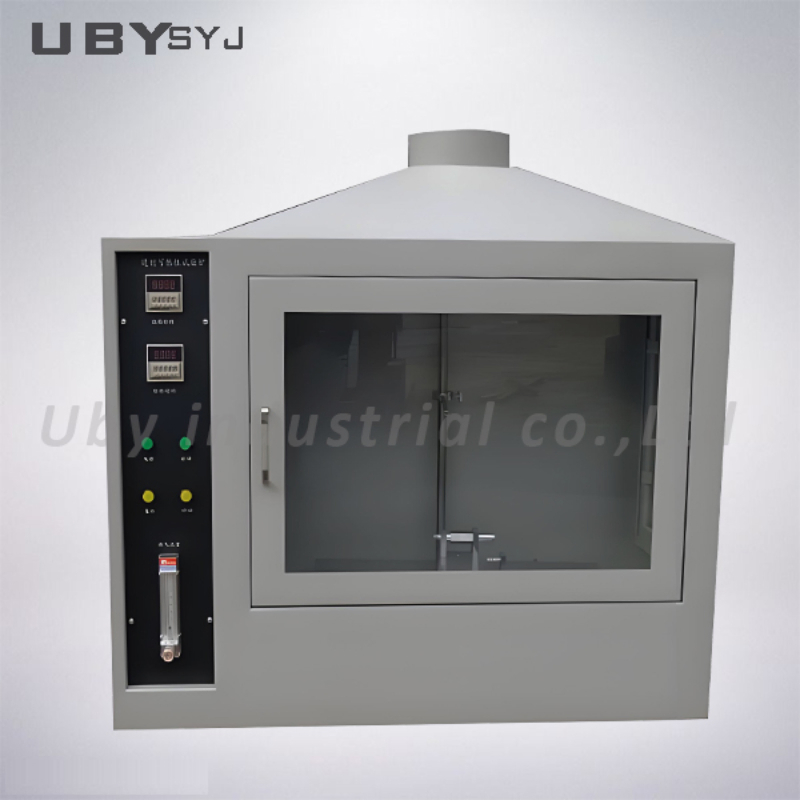

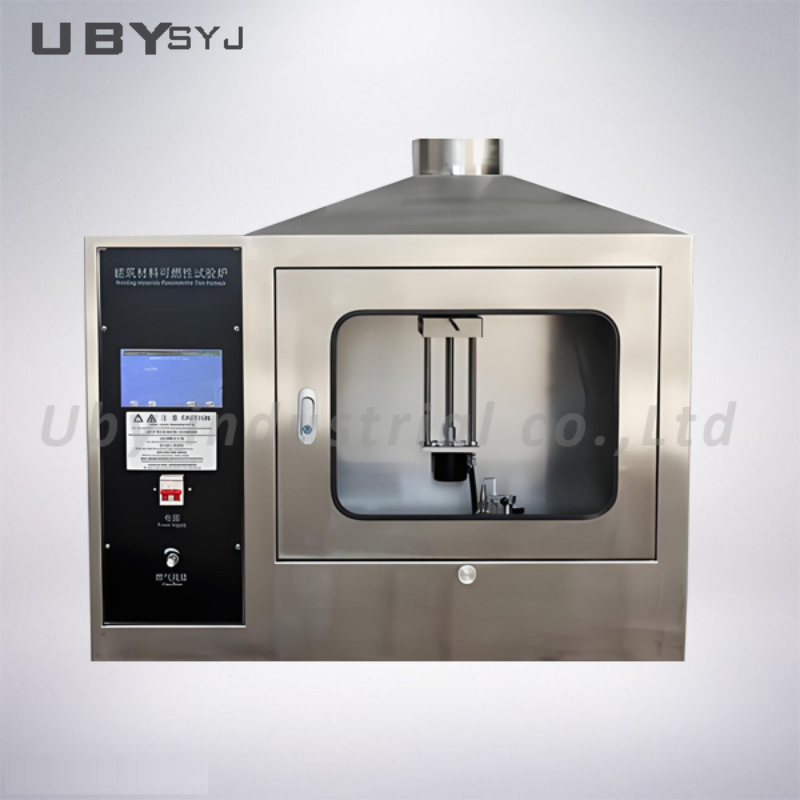

Product Images
ISO11925-2 Building Materials Testing Equipment PLC Control Flammability Test Apparatus UP-5020 0 ISO11925-2 Building Materials Testing Equipment PLC Control Flammability Test Apparatus UP-5020 1 ISO11925-2 Building Materials Testing Equipment PLC Control Flammability Test Apparatus UP-5020 2
Our Service Process
Customer Inquiry Process Discussing testing requirements and technical details, suggesting suitable products, and providing customized pricing.
Specifications Customization Creating drawings for customized requirements, providing reference photos, and confirming final solutions and pricing.
Production and Delivery Manufacturing according to confirmed requirements, providing production progress photos, conducting calibration, and arranging shipment.
Installation and After-Sales Field installation support and comprehensive after-sales service provision.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment with free maintenance. We extend to 14 months considering sea transportation. For technical issues, contact us via email or phone for diagnosis and solutions within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days; No stock: 15-20 working days after payment; Urgent orders receive special arrangement.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo.
How can I install and use the machine?
We provide English operation manuals and videos. Most machines ship fully assembled - simply connect power and begin use. On-site installation assistance available when necessary.
