Product Details:
Payment & Shipping Terms:
|
| Model Number: | HTB-004 | Iterm: | Horizontal Flammability Tester |
|---|---|---|---|
| Minimum Order Quantity: | 1 Set | Delivery Time: | 15 Working Days |
| Payment Terms: | T/T, L/C, Western Union | Place Of Origin: | Guangdong,China(Mainland) |
| Standard: | ISO3795 / FMVSS302 / DIN75200 / SAEJ369 / ASTM D5132 | ||
| High Light: | ISO3795 Horizontal Flammability Tester,ASTM D5132 Horizontal Flammability Tester,SAEJ369 Horizontal Flammability Tester |
||

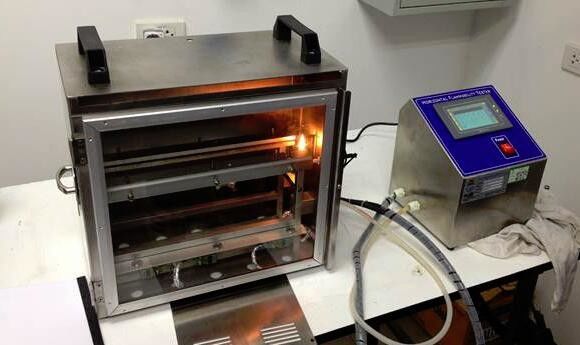

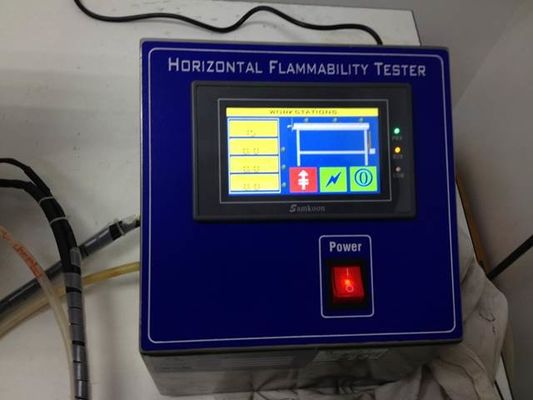

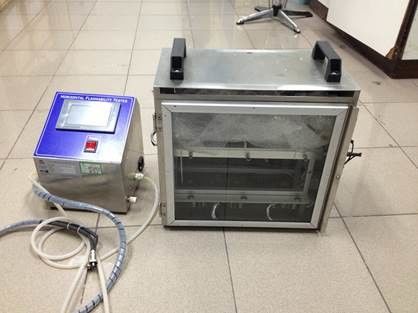

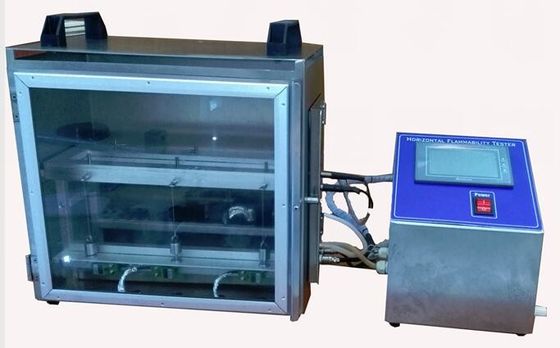

Horizontal Flammability Tester is used to test textile and material used in vehicles horizontal burning rate when exposure to a small flame.
Description:
Determines the comparative burn rates and burn resistance of textiles, plastics and other automotive interior materials.
Specifications:
| Model | HTB-004 |
| Text Chamber dimension: | 381x 203 x 356mm |
| Specimens clamp | U valley |
| Frame: | 330 x 50mm |
| Specimens: | 356x100mm |
| Fire nozzle diameter: | 9.5mm, |
| Fire nozzle angles: | 90 Degree |
| Length: | 100mm,come with adjustable hole. |
| Flame height: | 38mm |
| Burning time: | 15s |
| Outer dimension: | 570*260*370mm (L*W*H) |
| Power: | AC220V 50Hz 3A |
Youtube work video : https://youtu.be/j6_On_Fin-I
