Product Details:
Payment & Shipping Terms:
|
| Model Number: | TNH-105 | Iterm: | Temperature & Humidity Chamber |
|---|---|---|---|
| Minimum Order Quantity: | 1 Set | Delivery Time: | About 20 Working Days |
| Payment Terms: | T/T, L/C, Western Union | Place Of Origin: | Guangdong,China(Mainland) |
| Certificate: | CE | Standard: | GB/T 2423 / GB 10592 / GB10586 |
| High Light: | 150L Temperature and Humidity Test Chamber,Touch Screen Temperature And Humidity Chamber,GB 10592 Temperature And Humidity Chamber |
||

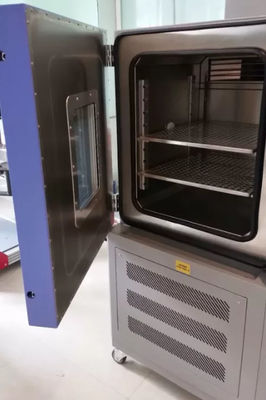

Environment Test Chamber / Temperature and Humidity Test Chamber / Climatic Chamber
Purpose of equipment
Temperature and humidity test chambers are available in variety of sizes, ranging from 50L to 3000L, including from benchtop chamber, floor type and walk- in chamber. Temperature and humidity chamber is used to performs heat endurance, cold endurance, dry endurance and wet endurance tests.
By performing these tests, we can improve the reliability and quality of products. Wide range of temperatures are available from -70°C to 150°C with excellent temperature uniformity. Lowest humidity from 10% RH.
Features:
1. Import LED touch-screen controller,( Korea TEMI880), User-friendly, operation easy and simple.
2. Style design is perfect,arc type and surface spray coating,high texture appearance,use plane handle,easy to operate,safe and reliable.
3. Huge observation window,wide and bright visio.Use three layer vacuum coating window and Philips energy-saving fluorescent lamp, unnecessary Windshield wiper mist,keep Clear observation effect,observe sample condition in any time.
4. Water and electricity share to ensure safety, Humidifying system channel separate from power,controller and circuit board,to avoide leaking affect circuit,Improve safety.
5. Frozen and control system advanced and reliable,imported France Compressor, eco-friendly refrigerant
Specifications:
| Models | LRD THD-100 | LRD THD-150 | LRD THD-225 | LRD THD-408 | LRD THD-500 | LRD THD-800 | LRD THD-1000 | |
| Internal dimension D*W*H(mm) | 400*500*500 | 500*500*600 | 500*600*750 | 600*800*850 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 | |
| External dimension D*W*H(mm) | 950*930*1620 | 1050*1070*1720 | 1050*1070*1870 | 1150*1430*1970 | 1130*1290*2020 | 1350*1430*2120 | 1500*1430*2120 | |
| Technical Data | Temperature Range | A:0～+150℃ ,Type B: -20°C ~ 150°C Type D: -60°C ~ 150°C
Type C: -40°C ~ 150°C Type E: -70°C ~ 150°C |
||||||
| Temperature uniformity | ±2.0°C | |||||||
| Temperature deviation | 0.2°C | |||||||
| Temperature fluctuation | ±0.5°C | |||||||
| Humidity range | 25% ~ 98% | |||||||
| Humidity uniformity | ±2%RH | |||||||
| Humidity fluctuation | ±2%RH | |||||||
| Heating rate | 2 ~ 3°C / min It can be made according to customer’s requirements | |||||||
| Cooling rate | 0.7 ~ 1°C / min It can be made according to customer’s requirements | |||||||
| Controller | Programmable Touchscreen color LCD controller, with USB, Ethernet interface | |||||||
| Temperature sensor | PTR Platinum Resistance PT100Ω/MV A-class | |||||||
| Cooling System | Mechanical Compression Refrigeration System | |||||||
| Heater | Nichrome Electronic Heater | |||||||
| Standard configuration | Current leakage protection, Water shortage protector, over-heat protector, compressor over-pressure protector, earth leakage protection | |||||||
Standards:
GB/T 2423.1,2,3,4(Electrical and electronic products basic environmental test procedure test)
A: Low temperature test method B: Hight temperature test method,Test Ca:Cosntant humidity and heat test method.Db: Alternating humidity and heat test method
GB 10592(High Low Temperature Test Chamber technical conditions)
GB 10586 (humid heat test technical conditions)
Service and Support
Our company focuses on research and development , we were produced some intelligent testing equipments over thirteen years, we continue to provide stable performance, high-quality equipment for product quality testing industry.At present, the company has 14 utility model patent technologies,2 patents for invention and participated in the drafting and formulation of nine national standards.
In cooperation we has a variety of testing units, industries, association partners and friends, accumulated a large number of detection industry insights and contacts, for those friends who just come into testing industry, we can learn from each other to communicate, explore the problems and difficulties encountered in testing.
