|Model Number:||HTB-066||Iterm:||UL 94 Horizontal & Vertical Flammability Tester|
|Minimum Order Quantity:||1 Set||Delivery Time:||About 20 Working Days|
|Payment Terms:||T/T, L/C, Western Union||Place Of Origin:||Guangdong,China(Mainland)|
UL 94 Horizontal Flammability Tester,
UL 94 Vertical Flammability Tester,
PLC Control Plastic Flame Chamber
Flame Chamber / PLC Control Flammability Testing Equipment / Flammability Tester
UL 94 Horizontal & Vertical Flammability Tester for Plastic Materials , Nonmetallic
operate video : https://www.youtube.com/watch?v=c4nHw8d8h-o
Purpose of equipment
Horizontal Flammability Tester is used to test textile and material used in vehicles horizontal burning rate when exposure to a small flame.
UL94 Horizontal & Vertical Flammability Tester (flammability chamber), used to determine the flammability of plastic materials for parts in devices and appliances. UL94 Horizontal & Vertical Flammability Tester complies with UL HB, UL94, IEC 60695-11-10, etc.

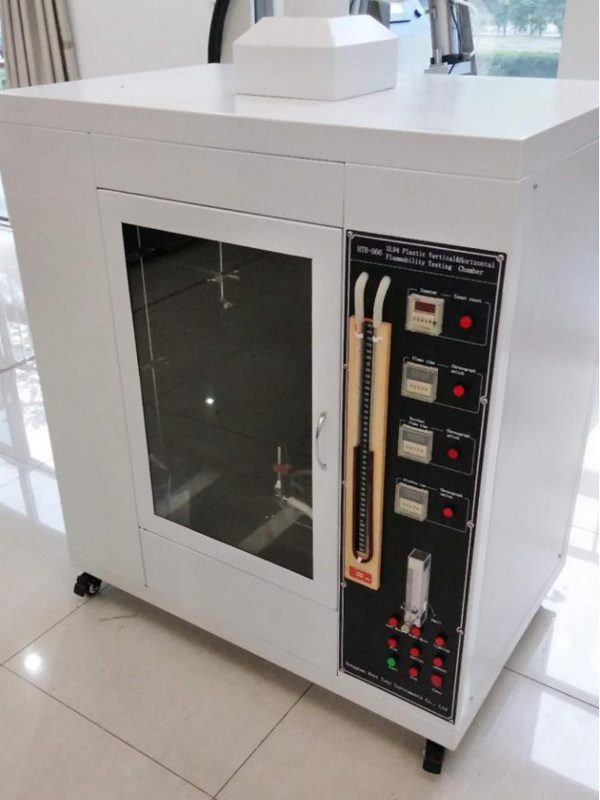

A bench mounted draft free combustion chamber having a large inside volume of 1.0m3 and fitted with an interior light and exhaust fan to enable simple evacuation of combustion products.
Large door and window made from toughened safety glass giving a generous view of the specimen during a test.
Fully adjustable horizontal and vertical specimen supports.
A burner in compliance with ASTM D 5025, with simple angle adjustment (0°, 20°, 45°) and precision gas control system including gas flow meter, pressure regulator and pressure gauge.
Two access ports enabling easy entry to the chamber for movement of the burner and specimen.
A burner wing tip.
Three digital test duration timers for accurate but simplified operation
UL HB UL 94 V0 UL 94 V1 UL 94 V2 UL 94 5VA
UL 94 5VB UL 94 VTM-0 UL 94 VTM-1 UL 94 VTM-2 UL 94 HF-1
UL 94 HF-2 UL 94 HBF IEC 60695-11-10 IEC 60707 ISO 1210
ISO 9770 ISO 9772 ISO 9773 GB/T 2408 GB/T 8332
