Name: UP-2000-A Peel Adhesion Tester 180° 90° Peel Test Machine with Touch Screen Control and Anti-Adhesive Coated Grips
Brand: Dongguan Youbi Test Equipment Co.,Ltd
SKU: UP-2000-A
Price: negotiable USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Capacity: 50 N / 100 N Standard; 200 N / 500 N Optional

Force Accuracy: ±0.5% Of Reading, Class 0.5

Force Resolution: 1/50,000 Of Full Scale

Force Measuring Range: 5%-100% FS (20%-80% FS Recommended)

Test Speed Range: 0.1-500 Mm/min Stepless Adjustable

Effective Stroke: 800 Mm (including Grips)

Effective Test Width: 100 Mm

Displacement Resolution: 0.01 Mm

Data Sampling Rate: 200 Times/sec

Drive System: Stepper Motor + Driver + Precision Pre-loaded Ball Screw

Control & Display: HMI Touch Screen

Output Interface: RS232 Communication Port; Optional Built-in Thermal Printer

Highlight:

180° 90° Peel Test Peel Adhesion Tester

Touch Screen Control Peel Test Machine

Anti-Adhesive Coated Grips Peel Adhesion Tester

Basic Infomation

Place of Origin: CHINA

Brand Name: YOUBI

Certification: CE,ISO

Model Number: UP-2000-A

Payment & Shipping Terms

Packaging Details: 30 Unit/Month

Delivery Time: 5-10 work days

Payment Terms: D/P,T/T,Western Union,paypal

Supply Ability: Professional Export Wooden Carton Packaging

Gallery

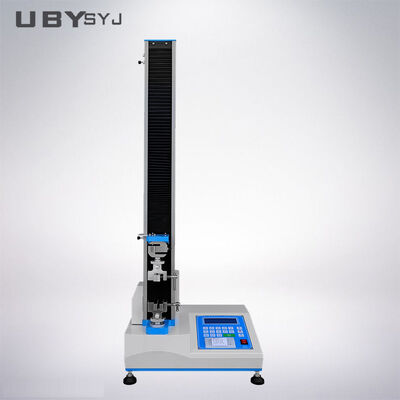

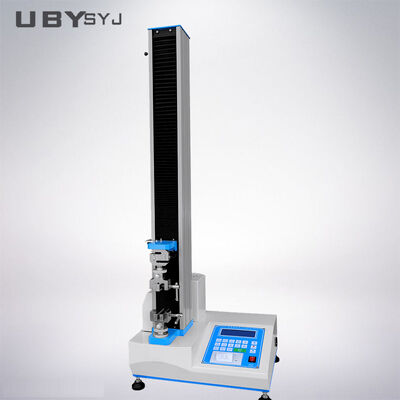

UP-2000-A Peel Adhesion Tester 180° 90° Peel Test Machine with Touch Screen Control and Anti-Adhesive Coated Grips

Product Description

Product Overview

The UP-2000-A is a single-column, touch-screen peel adhesion tester built for adhesive tape, surface protection film and laminated composite film. It performs 180° and 90° peel tests as well as tensile and elongation tests, using anti-adhesive coated low-pressure grips that prevent adhesive residue, backing tearing and unstable peel curves.

Adhesive materials cause three recurring problems on a conventional tensile machine: adhesive residue left on the jaws, tearing of the backing or substrate, and unstable peel curves from inconsistent clamping. The UP-2000-A is built to remove all three. Its anti-adhesive-coated, low-pressure side-action grips hold thin adhesive samples firmly without crushing the backing, squeezing out adhesive or leaving residue on the jaw faces.

Tests are performed to ASTM D3330, ASTM D3759, ISO 29862 and GB/T 2792. After entering the sample width and thickness, the operator starts the test from the touch screen; the system records the peel curve, calculates peel strength, maximum force, average force and elongation automatically, and prints the test report.

Capacity 50 N / 100 N ±0.5% Force Accuracy 180° / 90° Peel Touch Screen Control

Applications

This machine is widely used by tape converters, protective film manufacturers and flexible packaging factories to measure peel adhesion, tensile strength and elongation of single-sided tape, double-sided tape, PE/PET protective film and multi-layer laminated film.

Applicable Test Standards

ASTM D3330 — adhesive tape peel
ASTM D3759 — double-sided tape peel
ISO 29862 — self-adhesive tape peel adhesion
GB/T 2792 — adhesive tape peel strength
ASTM D882 — plastic film tensile

Technical Specifications

Parameter	Specification
Model	UP-2000-A
Capacity	50 N / 100 N standard; 200 N / 500 N optional (a small-force load cell is recommended for thin film and tape; select a higher capacity for high-strength thick composite film)
Force Measuring Range	5%–100% FS (readable range of the hardware; 20%–80% FS is recommended for formal laboratory testing)
Force Accuracy	±0.5% of reading, Class 0.5
Force Resolution	1/50,000 of full scale
Displacement Resolution	0.01 mm
Test Speed Range	0.1–500 mm/min, stepless adjustable
Effective Stroke	800 mm (including grips; suitable for long-stroke peel and elongation tests)
Effective Test Width	100 mm
Data Sampling Rate	200 times/sec (high sampling rate for capturing sharp peel force fluctuation)
Drive System	Stepper motor + driver + precision pre-loaded ball screw
Control & Display	HMI (Human-Machine Interface) touch screen
Force Units	N, kN, kgf, gf, lbf, switchable
Output Interface	RS232 communication port; optional built-in thermal printer
Printer Output	Automatic report printing: peel strength, max. force, average force, elongation, test date
Safety Devices	Overload protection, emergency stop, upper/lower travel limit, leakage protection, auto-return
Standard Fixture	1 set of 180° peel test fixture (for adhesive tape, protective film and laminated film peel strength test)
Optional Fixtures & Accessories	90° peel fixture, manual wedge tensile grips, pneumatic parallel grips, sample cutting knife, non-standard customized fixtures
Applicable Test Standards	ASTM D3330 (adhesive tape peel), ASTM D3759 (double-sided tape peel), ISO 29862 (self-adhesive tape peel adhesion), ASTM D882 (plastic film tensile)
Power Supply	AC220V 50Hz; AC110V 60Hz optional
Dimensions (L × W × H)	450 × 450 × 1300 mm
Net Weight	Approx. 50 kg

Fixtures & Test Setup

Frequently Asked Questions

Q1: What materials can the UP-2000-A tensile tester test?

It is developed for pressure-sensitive adhesive tape, double-sided tape, PE/PET protective film and multi-layer laminated composite film. It can run both peel adhesion tests and substrate tensile & elongation tests for adhesive flexible materials.

Q2: How do you avoid adhesive tape sticking to the clamps during a peel test?

The UP-2000-A is equipped with anti-adhesive coated low-pressure clamps. They reduce glue residue sticking on jaw surfaces and protect thin tape backing from tearing during stretching or peeling. We also recommend using standard test panels following ASTM D3330 for peel tests.

Q3: Can the UP-2000-A run both 90° and 180° peel tests for adhesive tape?

Yes. The touch screen software supports switching between 90° and 180° peel test modes. This is the most common test requirement for protective film and adhesive tape manufacturers for incoming QC and new product development.

Q4: Why is peel force curve fluctuation a major issue for tape and protective film testing?

Adhesive materials often show unstable peeling force. The high-precision sensor of the UP-2000-A can record small force variations, helping you evaluate peel consistency across different batches of tape or protective film.

Q5: Which test standards are supported for adhesive tape and protective film?

The machine is compliant with ASTM D3330 (peel adhesion), ASTM D3759 (tape breaking strength), ISO 29862, ISO 29864 and GB/T 2792. These standards are widely adopted by tape and protective film factories and third-party labs.

Q6: Can I test different materials by swapping grips on the UP-2000 tensile tester?

Yes. The UP-2000-P, UP-2000-M, UP-2000-F and UP-2000-A adopt the same single-column main unit. You can switch test applications by changing the matched grips and selecting the corresponding preset test program in the touch screen system.

Each machine comes with one set of standard grips only. Additional grips are optional spare parts for separate purchase.

Grip replacement will not change the load capacity of the tester. Frequent disassembly of grips may affect specimen alignment and data repeatability.
