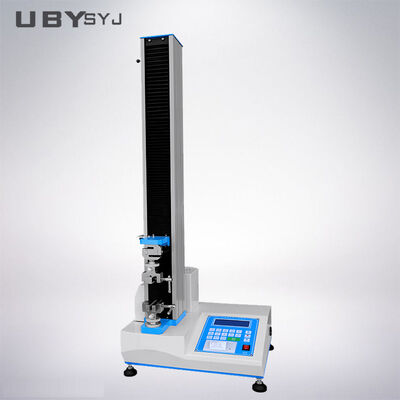

UP-2000-A Single Column Touch Screen Tensile Tester Universal Testing Machine with Anti-Adhesive Coated Low-Pressure Grips and 5 kN Capacity

1
MOQ
Negotiable
Price
UP-2000-A Single Column Touch Screen Tensile Tester Universal Testing Machine with Anti-Adhesive Coated Low-Pressure Grips and 5 kN Capacity
Features Gallery Product Description Chat Now
Features
Specifications
Capacity: 50 N / 100 N Standard; 200 N / 500 N Optional
Force Accuracy: ±0.5% Of Reading, Class 0.5
Force Resolution: 1/50,000 Of Full Scale
Force Range: 5%-100% FS
Speed Range: 0.1-500 Mm/min Stepless Adjustable
Effective Stroke: 800 Mm (including Grips)
Effective Width: 100 Mm
Displacement Resolution: 0.01 Mm
Sampling Rate: 200 Times/sec
Drive System: Stepper Motor + Driver + Precision Pre-loaded Ball Screw
Output Interface: RS232 Communication Port; Optional Built-in Thermal Printer
Dimensions: 450 × 450 × 1300 Mm
Highlight:

Single Column Touch Screen Tensile Tester

,

Anti-Adhesive Coated Grips Universal Testing Machine

,

5 kN Capacity Tensile Tester
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-2000-A
Payment & Shipping Terms
Packaging Details: 30 Unit/Month
Delivery Time: 5-10 work days
Payment Terms: D/P,T/T,Western Union,paypal
Supply Ability: Professional Export Wooden Carton Packaging
Product Description
Product Overview

The UP-2000-A touch screen tensile tester is specially configured for adhesive tape, surface protective film, and laminated composite film. It addresses common testing issues with adhesive materials, such as adhesive residue on grips, substrate tearing, and unstable peel curves. Specially designed anti-adhesive coated low-pressure side action grips hold thin adhesive samples securely without damaging the backing or squeezing out glue.

This machine is widely used by tape converters, protective film manufacturers, and flexible packaging factories to test peel adhesion, tensile strength, and elongation of single-sided tape, double-sided tape, PE/PET protective film, and multi-layer laminated film.

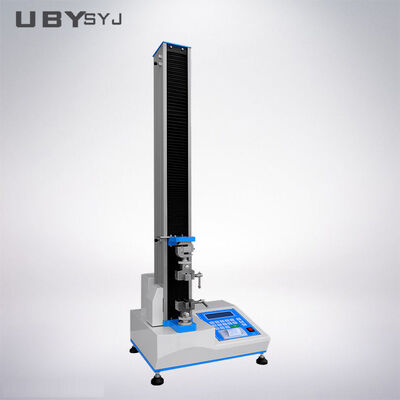

UP-2000-A touch screen tensile tester set up for peel strength testing of adhesive tape and protective film
UP-2000-A tensile tester configured for adhesive tape and protective film peel strength testing.
Key Features
  • Anti-adhesive coated low-pressure side action grips prevent tape glue from sticking to the jaws and avoid sample backing tearing.
  • Pre-built test templates for tape peel tests and substrate tensile tests, with support for 90° and 180° peel modes.
  • High-precision load cell captures tiny peel force fluctuations in adhesive products and generates stable force-displacement curves.
  • Compliant with ASTM D3330, ASTM D3759, ASTM D903, ISO 29862, and ISO 29864.
  • Typical test samples include single-sided and double-sided adhesive tape, PE/PET surface protective film, laminated composite film, and release film.
Technical Specifications
Parameter Specification
Model UP-2000-A
Capacity 50 N / 100 N standard; 200 N / 500 N optional (a small-force load cell is recommended for thin film and tape; select a higher capacity for high-strength thick composite film)
Force Measuring Range 5%–100% FS (readable range of the hardware; 20%–80% FS is recommended for formal laboratory testing)
Force Accuracy ±0.5% of reading, Class 0.5
Force Resolution 1/50,000 of full scale
Displacement Resolution 0.01 mm
Test Speed Range 0.1–500 mm/min, stepless adjustable
Effective Stroke 800 mm (including grips; suitable for long-stroke peel and elongation tests)
Effective Test Width 100 mm
Data Sampling Rate 200 times/sec (high sampling rate for capturing sharp peel force fluctuations)
Drive System Stepper motor + driver + precision pre-loaded ball screw
Control & Display HMI (Human-Machine Interface) touch screen
Force Units N, kN, kgf, gf, lbf, switchable
Output Interface RS232 communication port; optional built-in thermal printer
Printer Output Automatic report printing: peel strength, max. force, average force, elongation, test date
Safety Devices Overload protection, emergency stop, upper/lower travel limit, leakage protection, auto-return
Standard Fixture 1 set of 180° peel test fixture (for adhesive tape, protective film, and laminated film peel strength testing)
Optional Fixtures & Accessories 90° peel fixture, manual wedge tensile grips, pneumatic parallel grips, sample cutting knife, non-standard customized fixtures
Applicable Test Standards ASTM D3330 (adhesive tape peel), ASTM D3759 (double-sided tape peel), ISO 29862 (self-adhesive tape peel adhesion), ASTM D882 (plastic film tensile)
Power Supply AC220V 50Hz; AC110V 60Hz optional
Dimensions (L × W × H) 450 × 450 × 1300 mm
Net Weight Approx. 50 kg

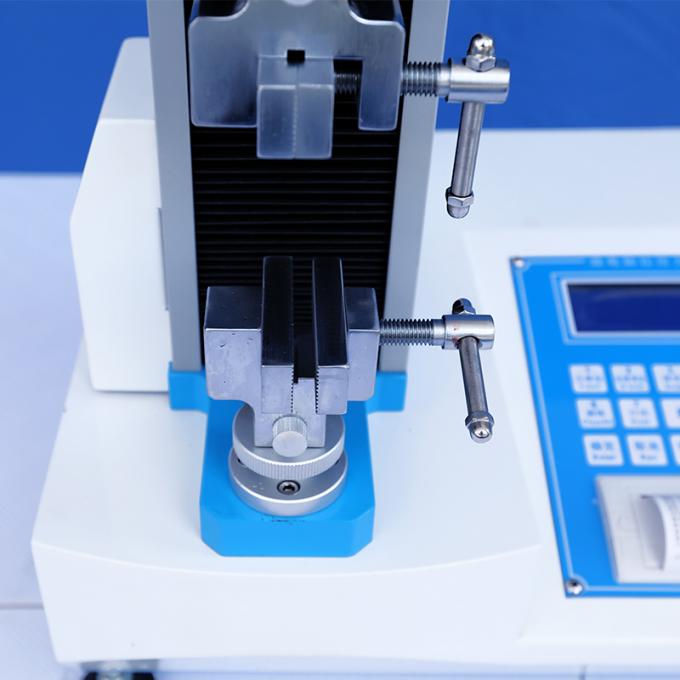

Tape and protective film peel tester with anti-adhesive side action grips for ASTM D3330 180° and 90° peel tests
Anti-adhesive side action grips enable stable 180° and 90° peel testing per ASTM D3330.
Frequently Asked Questions
Q1: What materials can the UP-2000-A tensile tester test?

It is developed for pressure-sensitive adhesive tape, double-sided tape, PE/PET protective film, and multi-layer laminated composite film. It can run both peel adhesion tests and substrate tensile and elongation tests for adhesive flexible materials.

Q2: How do you avoid adhesive tape sticking to the clamps during a peel test?

The UP-2000-A is equipped with anti-adhesive coated low-pressure clamps. They reduce glue residue sticking to jaw surfaces and protect thin tape backing from tearing during stretching or peeling. We also recommend using standard test panels following ASTM D3330 for peel tests.

Q3: Can the UP-2000-A run both 90° and 180° peel tests for adhesive tape?

Yes. The touch screen software supports switching between 90° and 180° peel test modes. This is the most common test requirement for protective film and adhesive tape manufacturers for incoming QC and new product development.

Q4: Why is peel force curve fluctuation a major issue for tape and protective film testing?

Adhesive materials often show unstable peeling force. The high-precision sensor of the UP-2000-A can record small force variations, helping you evaluate peel consistency across different batches of tape or protective film.

Q5: Which test standards are supported for adhesive tape and protective film?

The tester is compliant with ASTM D3330 (peel adhesion), ASTM D3759 (tape breaking strength), ISO 29862, ISO 29864, and GB/T 2792. These standards are widely adopted by tape and protective film factories and third-party laboratories.

Q6: Can I test different materials by swapping grips on the UP-2000 tensile tester?

Yes. The UP-2000-P, UP-2000-M, UP-2000-F, and UP-2000-A adopt the same single-column main unit. You can switch test applications by changing the matched grips and selecting the corresponding preset test program in the touch screen system.

Each machine comes with one set of standard grips only. Additional grips are optional spare parts for separate purchase.

Grip replacement will not change the load capacity of the tester. Frequent disassembly of grips may affect specimen alignment and data repeatability.
