Name: Double Column Computer Servo Universal Tensile Tester UP-2003 Universal Testing Machine for Metal Rubber Plastic Mechanical Test
Brand: Dongguan Youbi Test Equipment Co.,Ltd
SKU: UP-2003
Price: negotiable USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Load Range: 1~50kN (100-5000kg Optional)

Force Resolution: 1/100,000

Test Speed: 40~400mm/Min

Speed Accuracy: ±1% (Class 1)

Effective Stroke: 800mm (Customizable)

Effective Width: 400mm (Customizable)

Power Source: AC110-220V

Control Mode: Computer Servo Control

Unit Selection: KG, N, KN, LBF

Frame Type: Aluminum Alloy Double-beam

Highlight:

Double Column Universal Testing Machine

Computer Servo Universal Tensile Tester

Metal Rubber Plastic Universal Testing Machine

Basic Infomation

Place of Origin: CHINA

Brand Name: YOUBI

Certification: CE,ISO

Model Number: UP-2003

Payment & Shipping Terms

Packaging Details: Professional Export Wooden Box Packaging

Delivery Time: 5-15 work days

Payment Terms: T/T,D/P,Western Union,Paypal

Supply Ability: 30 Unit/month

Gallery

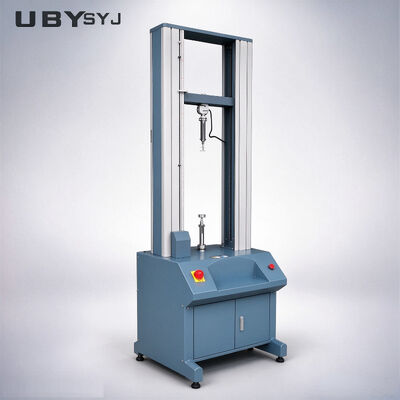

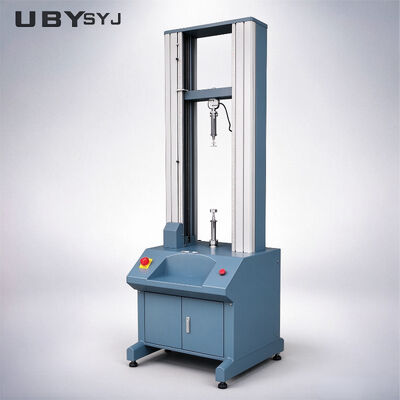

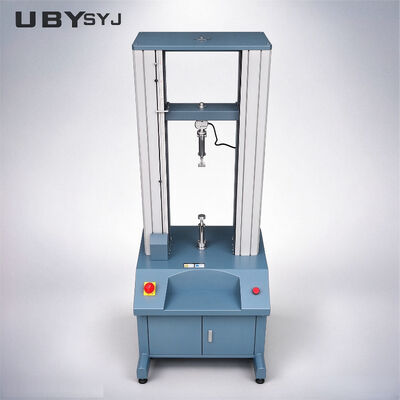

Double Column Computer Servo Universal Tensile Tester UP-2003 Universal Testing Machine for Metal Rubber Plastic Mechanical Test

Product Description

Double Column Computer Controlled Universal Tensile Tester UP-2003

Our UP-2003 computer servo universal tensile tester is engineered for a full range of mechanical property tests. It supports tensile, compression, bending, peeling, shearing and tear tests for diverse raw materials and finished goods.
This lab testing equipment is widely adopted by QC laboratories, material research centers and manufacturing factories. It meets international testing standards including ASTM D638, ASTM E8, ISO 6892 and other related test specifications, ideal for metal, rubber, plastic, textile and shoe material quality inspection.

Main Features:

High-precision servo drive system delivers stable motion and consistent, repeatable test data
High resolution data acquisition system captures force & displacement signals accurately
Dedicated PC test software: real-time curve display, automatic report generation and data export
Multiple safety protection: travel limit protection, overload protection and emergency stop switch
Quick-change fixture system, flexible to switch jigs to match different material test requirements
Robust aluminum alloy double-beam frame, low noise and long service life

Tensile fixture and load cell close-up detail of double column universal tensile testing machine
Technical Specifications:

Item	Parameter
Load Capacity	50kg ~ 5000kg optional
Force Resolution	1/100000
Test Speed	0.1 ~ 500 mm/min adjustable
Effective Stroke	800mm (custom available)
Effective Width	400mm
Control Mode	Computer servo control
Standards	ASTM D638, ASTM E8, ISO 6892

Machine Construction Details:

The tester is equipped with a sturdy cabinet base fitted with adjustable leveling casters. Operators can easily move the machine and level it on the laboratory floor. The independent control panel with emergency stop button ensures safe operation during testing.
Adjustable caster and base cabinet detail of universal tensile testing machine for laboratory

Application Fields:

Plastic & Rubber Manufacturing
Metal Material Processing
Textile & Nonwoven Industry
Footwear & Leather Products
Packaging & Composite Materials
University & QC Testing Labs

Our Service:

Direct factory supply with competitive price
Custom load capacity, test stroke and fixture solutions
English version software and operation manual
12-month warranty and lifetime technical support
Free pre-sales consultation for your material test requirements

FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
If there is no stock, normally, the delivery time is 15-20 working days after payment is received;
If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
