Home /Products/Rubber Testing Equipment/COF Tester with 200±2 g Standard Weight 1～500 mm/min Slider Moving Speed and ±0.02 N Test Force Precision for Packaging Rubber Materials UP-6026

COF Tester with 200±2 g Standard Weight 1～500 mm/min Slider Moving Speed and ±0.02 N Test Force Precision for Packaging Rubber Materials UP-6026

1
MOQ
Negotiable
Price
COF Tester with 200±2 g Standard Weight 1～500 mm/min Slider Moving Speed and ±0.02 N Test Force Precision for Packaging Rubber Materials UP-6026
Features Gallery Product Description Chat Now
Features
Specifications
Standard Weight: 200±2 G
Slider Moving Speed: 1～500 Mm/min (stepless Adjustable)
Service Support: OEM ODM
Displacement Resolution: 0.01mm
Language: Chinese And English
Effective Travel: 400mm
Test Force Precision: ±0.02 N
Model NO.: UP-6026
Highlight:

200±2 g Standard Weight COF Tester

,

1～500 mm/min Slider Moving Speed Coefficient of Friction Tester

,

±0.02 N Test Force Precision Slip Performance Test Machine
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-5017
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5-10work days
Payment Terms: D/P,T/T,Western Union
Supply Ability: 30 Unit/month
Product Description
COF Tester Durable Slip Performance Test Machine for Packaging & Rubber Materials UP-6026
Product Overview

Coefficient of Friction Tester is a high-precision analytical testing instrument developed for professional laboratories, material research institutes and high-end manufacturing enterprises. It accurately detects static friction coefficient and kinetic friction coefficient of various engineering and packaging materials.

Adopted high-sensitivity force sensor and high-resolution displacement measuring module, this tester provides repeatable, traceable test data for material certification, product development and quality audit. Touch-screen operation together with embedded printer realizes automatic testing, data recording and report output.

Applications

It is applicable for plastic films, sheets, rubber, paper, paperboard, woven fabrics, optical cable composite tapes, conveyor belts, wood, coatings, brake pads, wiper blades, shoe materials, tire materials and other functional materials. It evaluates slip property, opening performance and conveying suitability for high-speed automatic packaging lines.

Technical Specifications
Item Specification
Standard Weight 200±2 g
Slider Moving Speed 1-500 mm/min (1~500mm/min continuously adjustable)
Test Force Precision ±0.02 N
Effective Travel 400 mm
Displacement Resolution 0.01 mm
Standard Slider 63.5 mm × 63.5 mm
Overall Size 650mm(L) × 340mm(W) × 410mm(H)
Net Weight ≈35 kg
Power AC 220V
Product Gallery

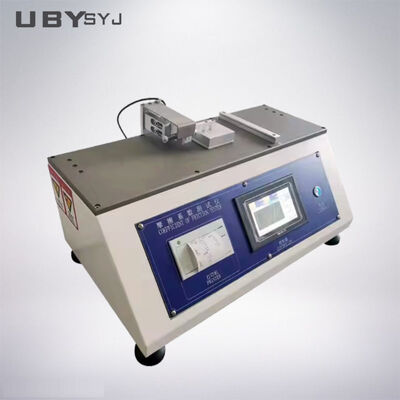

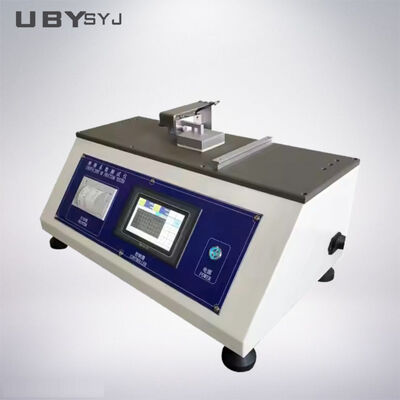

COF Tester UP-6026 front view COF Tester UP-6026 technical diagram COF Tester UP-6026 side view
Our Service Process
  • Customer Inquiry Process: Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.
  • Specifications Customize Process: Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.
  • Production and Delivery Process: We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration (as per customer requirements). Check and test all the details and then arrange packing. Delivering the products is confirmed shipping time and informed the customer.
  • Installation and After-Sale Service: Defines installing those products in the field and providing after-sales support.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. While considering sea transportation, we can extend 2 months for our customers. Moreover, if your machine doesn't work, you can send us an e-mail or call us - we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
What about the delivery term?
For our standard machine which means normal machines: If we have stock in the warehouse, delivery is 3-7 working days; If there is no stock, normally, the delivery time is 15-20 working days after payment is received; If you are in urgent need, we will make a special arrangement for you.
Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
