UP-5006 Automatic Low-temperature Brittleness Testing Machine with Precise Constant-temperature Control for Multi-sample Batch Testing

1
MOQ
Negotiable
Price
UP-5006 Automatic Low-temperature Brittleness Testing Machine with Precise Constant-temperature Control for Multi-sample Batch Testing
Features Gallery Product Description Chat Now
Features
Specifications
Language: Chinese And English
Impact Speed: 2 M/S ± 0.2 M/S
Temperature Uniformity: ±1℃
Model NO.: UP-5006
Display Resolution: 0.1℃
Temperature Range: Rt~-80℃
Service Support: OEM ODM
Applications: Plastic Rubber
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-5006
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5-10 work days
Payment Terms: D/P,T/T,Western Union
Supply Ability: 20 Unit/monty
Product Description
UP-5006 Automatic Low-temperature Brittleness Testing Machine for Elastomer Rubber Plastic Material
Product Overview

The Low-temperature Brittleness Tester evaluates the low-temperature resistance and brittle failure performance of rubber, plastic, elastomer, and polymer materials. It simulates extreme low-temperature working environments to test the critical temperature at which materials crack or break under impact load.

Featuring a high-efficiency refrigeration system and precise constant-temperature control technology, this machine offers fast cooling speed, uniform temperature field, and stable test results. It supports multi-sample batch testing with automatic impact and judgment functions, ensuring simple operation, high repeatability, and accurate data.

Applications

This equipment is used to compare and identify the functional performance of non-rigid plastics and other elastic materials under low-temperature conditions, measuring the advantages and disadvantages of low-temperature performance for different rubber materials and composite rubber formulations.

Compliance Standards
  • ISO812: Rubber, vulcanized or thermoplastic - Determination of low-temperature brittleness
  • ISO 974: Determination of Impact Brittle Temperature of Plastics
  • ASTM D746: Brittle temperature of impact plastics and elastomers
  • JIS K6261: Determination of Rubber Vulcanization or Thermoplastic Low Temperature Properties
Technical Specifications
Item Specification
Temperature Range Ambient Temperature ~ -70 ℃
Display Accuracy ±0.3 ℃
Cooling Rate 0 ~ -30 ℃: 2.5 ℃/min
-30 ~ -40 ℃: 2.5 ℃/min
-40 ~ -70 ℃: 2.0 ℃/min
Overall Dimension 900*500*800 mm (W * D * H)
Available Samples 1 piece (Rubber Material); 5 ~ 15 pieces (Plastic Material)
Digital Timer 0s ~ 99 min, Resolution: 1s
Cooling Medium Ethanol or other non-freezing liquid
Stirring Motor Power 8 W
Power Supply 220 ~ 240V, 50Hz, 1.5kW
Required Working Ambient Temperature ≤25℃
Application Plastic Testing, Rubber Testing
Product Images

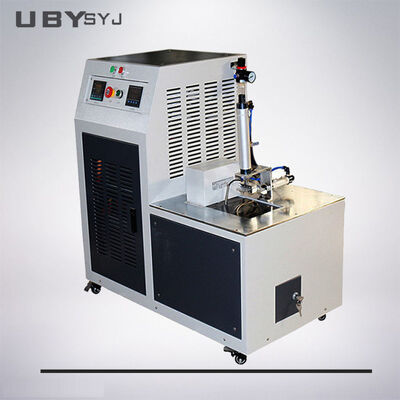

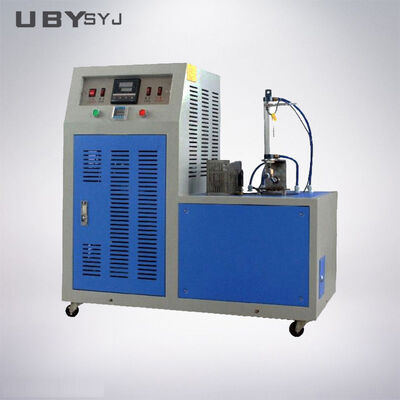

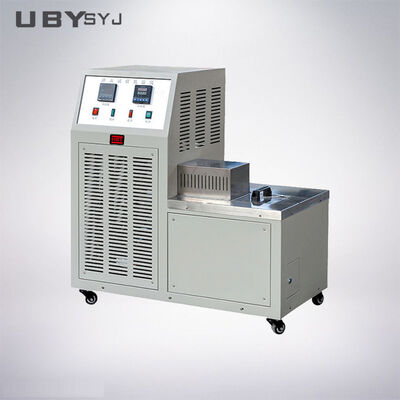

UP-5006 Automatic Low-temperature Brittleness Testing Machine Close-up view of testing machine components Precise and Automated Brittleness Temperature Tester for Testing Plastic Films Automated Brittleness Temperature Tester side view Brittleness Temperature Tester control panel and display
Our Service

During the entire business process, we offer Consultative Selling services:

Customer Inquiry Process:

Discussing testing requirements and technical details, suggesting suitable products, and providing competitive pricing according to customer requirements.

Specifications Customization Process:

Creating related drawings for customized requirements, providing reference photos for product appearance, and confirming final solutions and pricing.

Production and Delivery Process:

Manufacturing machines according to confirmed PO requirements, providing production progress photos, conducting factory or third-party calibration, and arranging timely delivery.

Installation and After-sales Service:

Providing field installation services and comprehensive after-sales support.

Frequently Asked Questions
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory comes with a 12-month warranty after shipment. We offer 12 months of FREE maintenance, with an additional 2-month extension considering sea transportation.

If your machine doesn't work, you can contact us via email or phone. We will troubleshoot the problem through conversation or video chat if necessary. Once confirmed, solutions are provided within 24 to 48 hours.
2. What about the delivery term?
For standard machines in stock: 3-7 working days
For machines not in stock: 15-20 working days after payment
Special arrangements available for urgent requirements.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the machine.
4. How can I install and use the machine?
We provide English operation manuals or videos via email after purchase. Most machines are shipped fully assembled - you simply need to connect the power cable to start using them. If necessary, we can assist with on-site installation.
