Home /Products/Rubber Testing Equipment/UP-5006 Low Temperature Brittleness Tester with Rt~-80℃ Range 2 M/S Impact Speed and ±1℃ Uniformity for Polymer Cold Resistance Testing

UP-5006 Low Temperature Brittleness Tester with Rt~-80℃ Range 2 M/S Impact Speed and ±1℃ Uniformity for Polymer Cold Resistance Testing

1
MOQ
Negotiable
Price
UP-5006 Low Temperature Brittleness Tester with Rt~-80℃ Range 2 M/S Impact Speed and ±1℃ Uniformity for Polymer Cold Resistance Testing
Features Gallery Product Description Chat Now
Features
Specifications
Applications: Plastic Rubber
Language: Chinese And English
Display Resolution: 0.1℃
Service Support: OEM ODM
Temperature Range: Rt~-80℃
Temperature Uniformity: ±1℃
Impact Speed: 2 M/S ± 0.2 M/S
Model NO.: UP-5006
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-5006
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5-10 work days
Payment Terms: D/P,T/T,Western Union
Supply Ability: 20 Unit/monty
Product Description
UP-5006 Plastic Rubber Low Temperature Brittleness Tester
Product Overview

The Low-temperature Brittleness Tester evaluates the low-temperature resistance and brittle failure performance of rubber, plastic, elastomer, and polymer materials. It simulates extreme low-temperature working environments to test the critical temperature at which materials crack or break under impact load.

Featuring a high-efficiency refrigeration system and precise constant-temperature control technology, this machine offers fast cooling speed, uniform temperature field, and stable test results. It supports multi-sample batch testing with automatic impact and judgment functions, ensuring simple operation, high repeatability, and accurate data.

Applications

This equipment is used to compare and identify the functional performance of non-rigid plastics and other elastic materials under low-temperature conditions. It measures the advantages and disadvantages of low-temperature performance for different rubber materials and composite rubber formulations.

Compliance Standards
  • ISO812: Rubber, vulcanized or thermoplastic - Determination of low-temperature brittleness
  • ISO 974: Determination of Impact Brittle Temperature of Plastics
  • ASTM D746: Brittle temperature of impact plastics and elastomers
  • JIS K6261: Determination of Rubber Vulcanization or Thermoplastic Low Temperature Properties
Technical Specifications
Parameter Specification
Temperature Range Ambient Temperature ~ -70 ℃
Display Accuracy ±0.3 ℃
Cooling Rate 0 ~ -30 ℃: 2.5 ℃/min
-30 ~ -40 ℃: 2.5 ℃/min
-40 ~ -70 ℃: 2.0 ℃/min
Overall Dimension 900×500×800 mm (W×D×H)
Available Samples 1 piece (Rubber Material); 5-15 pieces (Plastic Material)
Digital Timer 0s ~ 99 min, Resolution: 1s
Cooling Medium Ethanol or other non-freezing liquid
Stirring Motor Power 8 W
Power Supply 220-240V, 50Hz, 1.5kW
Required Working Ambient Temperature ≤25℃
Application Plastic Testing, Rubber Testing
Product Images

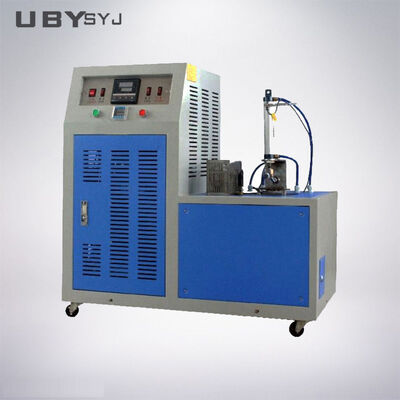

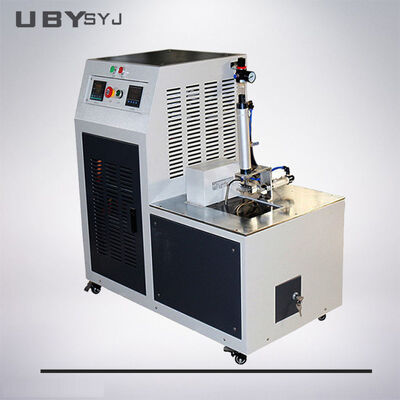

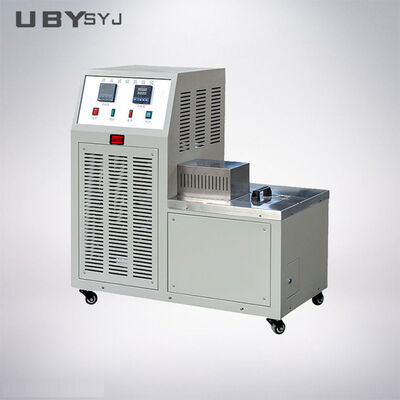

UP-5006 Low Temperature Brittleness Tester front view UP-5006 Low Temperature Brittleness Tester side view Precise and Automated Brittleness Temperature Tester for Testing Plastic Films Close-up view of testing chamber and controls Detailed view of sample mounting and impact mechanism
Our Service Process
Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing.
Specifications Customization: Create detailed drawings for custom requirements, provide reference photos, and confirm final solutions and pricing.
Production and Delivery: Manufacture according to confirmed requirements, provide production progress photos, conduct calibration, and ensure timely delivery.
Installation and After-sales: Provide installation support and comprehensive after-sales service.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment, with free maintenance during this period. We extend an additional 2 months to account for sea transportation. For technical support, contact us via email or phone - we'll diagnose issues and provide solutions within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days
Out of stock items: 15-20 working days after payment
Urgent requirements receive special priority arrangements
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including adding your logo to the equipment.
How can I install and use the machine?
We provide English operation manuals and videos via email. Most machines are shipped fully assembled - you simply need to connect the power cable to begin operation. On-site installation assistance is available when necessary.
