Home /Products/Rubber Testing Equipment/UP-5004 Melt Flow Index Tester with ±0.2℃ Temperature Accuracy and 50℃ ~ 400℃ Range for High-Precision MFI Testing

UP-5004 Melt Flow Index Tester with ±0.2℃ Temperature Accuracy and 50℃ ~ 400℃ Range for High-Precision MFI Testing

1 Unit
MOQ
Negotiable
Price
UP-5004 Melt Flow Index Tester with ±0.2℃ Temperature Accuracy and 50℃ ~ 400℃ Range for High-Precision MFI Testing
Features Gallery Product Description Chat Now
Features
Specifications
Temperature Range: 50℃ ~ 400℃
Specification: Refer To The Actual Size Specifications
Applications: Plastic,Rubber
Service Support: OEM ODM
Temperature Accuracy: ±0.2 Degree Centigrade
Piston Head Diameter: Φ9.475 ±0.010 Mm
Language: Chinese And English
Barrel Inner Diameter: Φ9.550 ±0.025 Mm
MOQ: 1 PCS
Model NO.: UP-5004
Highlight:

Melt Flow Index Tester with high precision

,

MFI tester with temperature accuracy

,

Rubber testing equipment with wide range
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-5004
Payment & Shipping Terms
Packaging Details: Professional Export Packing
Delivery Time: 5-10 work days
Payment Terms: D/P,T/T,Paypal,Western Union,Money Gram
Supply Ability: 20 Unit/monty
Product Description
UP-5004 Thermoplastic Melt Flow Index Tester
The UP-5004 Melt Flow Index Tester is professional laboratory equipment designed to test MFR (Melt Mass-Flow Rate) and MVR (Melt Volume-Flow Rate) of thermoplastics. Under specified temperature and standard load conditions, molten plastic extrudes through a standard die. This instrument features high-precision PID temperature control, manual and automatic cutting functions, digital data calculation, and an optional built-in printer.
Key Features
  • High-precision PID temperature control system
  • Manual and automatic cutting functionality
  • Digital data calculation and processing
  • Optional built-in printer for results
  • Stable temperature uniformity
  • Easy operation and reliable repeatability
Compliance Standards
  • ISO 1133-1:2022 Plastics - Determination of MFR & MVR
  • ASTM D1238 Standard Test Method for Melt Flow Rates of Thermoplastics
  • GB/T 3682.1-2018
Applications
This melt flow rate tester is suitable for polycarbonate, polysulfone, fluoroplastic, nylon and other engineering plastics with high melting temperature, as well as polyethylene (PE), polystyrene (PS), polypropylene (PP), ABS resin, POM, PC resin and other plastics with low melting temperature. It is widely used in plastic production, plastic products, petrochemical and other industries, as well as relevant colleges, research institutions and commodity inspection departments.
Technical Specifications
Parameter Specification
Temperature Range 50℃ ~ 400℃
Temperature Control Accuracy ±0.2℃; Display Resolution: 0.1℃
Barrel Inner Diameter Φ9.550 ±0.025 mm
Standard Die Size Φ2.095×8.000 mm
Piston Head Diameter Φ9.475 ±0.010 mm
Standard Test Weights 0.325kg, 1.2kg, 2.16kg, 3.8kg, 5.0kg, 10kg, 21.6kg
Timing Range 0 ~ 6000 s, Resolution: 0.01 s
Testing Mode Mass Method (A) / Volume Method (B)
Cutting Mode Manual cutting / Automatic timing cutting
Power Supply AC220V 50Hz (110V optional)
Heating Power ≤600W
Overall Dimension 560×370×620 mm
Net Weight Approx. 75 kg
Product Images

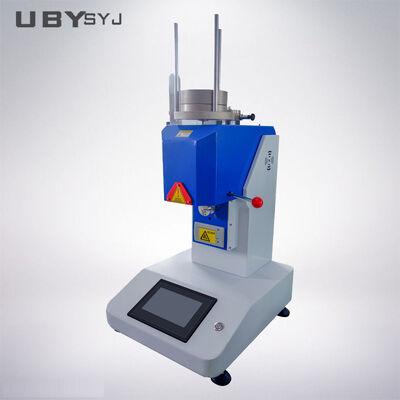

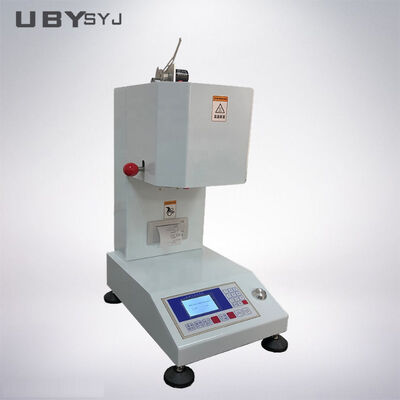

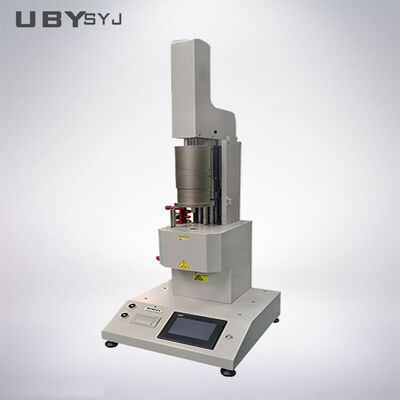

UP-5004 Melt Flow Index Tester front view UP-5004 Melt Flow Index Tester side view UP-5004 Melt Flow Index Tester control panel
Our Service Process
Consultative Selling Services Throughout the Entire Business Process
  • Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
  • Customization: Create drawings for customized requirements, provide reference photos, and confirm final solutions and pricing
  • Production & Delivery: Manufacture according to confirmed requirements, provide production progress photos, conduct calibration, and arrange timely shipping
  • Installation & Support: Provide field installation and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine purchased from our factory has a 12-month warranty after shipment. We offer 12 months of FREE maintenance, extended to 14 months considering sea transportation. If your machine doesn't work, contact us via email or phone. We'll diagnose the problem through conversation or video chat and provide solutions within 24 to 48 hours.
What about the delivery term?
For standard machines in stock: 3-7 working days. For non-stock items: 15-20 working days after payment receipt. We can make special arrangements for urgent requirements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the equipment.
How can I install and use the machine?
We provide English operation manuals and videos via email. Most machines are shipped fully assembled - you simply connect the power cable and begin operation. We also offer on-site installation assistance when necessary.
