UP-5031 Automatic Guarded Hot Plate Thermal Conductivity Apparatus with 0.001 ~ 2.0 W/(m·K) Range for Insulation Testing

1
MOQ
Negotiable
Price
UP-5031 Automatic Guarded Hot Plate Thermal Conductivity Apparatus with 0.001 ~ 2.0 W/(m·K) Range for Insulation Testing
Features Gallery Product Description Chat Now
Features
Specifications
Test Method: Guarded Hot Plate Steady-State Method
Power Supply: AC 220V, 50/60Hz
Cold Plate Temperature Range: 0 ~ 60 ℃ (Optional: -10 ~ 60 ℃)
Service Support: OEM ODM
Thermal Conductivity Range: 0.001 ~ 2.0 W/(m·K)
Hot Plate Temperature Range: RT ~ 110 ℃
Language: Chinese And English
Measurement Accuracy: ±3%
Max Sample Size: 300 × 300 Mm, Thickness 5 ~ 100 Mm
Model: UP-5031
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE, ISO
Model Number: UP-5031
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5~10 work days
Payment Terms: D/P,T/T,Western Union
Supply Ability: 20 Unit/month
Product Description
UP-5031 Automatic Guarded Hot Plate Thermal Conductivity Apparatus
Product Overview

The UP-5031 Automatic Guarded Hot Plate Thermal Conductivity Apparatus employs the classic guarded hot plate steady-state method principle. This advanced testing system effectively eliminates edge heat loss through its guard heating structure, delivering high-precision and repeatable test results for low thermal conductivity insulation materials.

Equipped with independent hot plate and cold plate temperature control systems, high-precision temperature sensors, and professional Windows testing software, this apparatus supports automatic data collection, calculation, curve display, and test report generation.

Compliance Standards
  • ISO 8302: Thermal insulation - Determination of steady-state thermal resistance and related properties - Guarded hot plate method
  • ASTM C177: Standard Test Method for Steady-State Heat Flux Measurements and Thermal Transmission Properties by Means of the Guarded-Hot-Plate Apparatus
Applications

Suitable for testing flat slab-shaped thermal insulation and low heat-conductive materials including:

  • Building insulation materials
  • Advanced insulation materials
  • Plastic and rubber materials
  • New energy materials
  • Powder and loose fibrous materials
  • Materials research laboratories and third-party testing institutes
Technical Specifications
Parameter Specification
Test Method Guarded Hot Plate Steady-State Method
Thermal Conductivity Range 0.001 ~ 2.0 W/(m*K)
Measurement Accuracy ±3%
Repeatability ≤±1%
Max Sample Size 300 × 300 mm, thickness 5 ~ 100 mm (200×200mm optional)
Hot Plate Temperature Range RT ~ 110 ºC
Cold Plate Temperature Range 0 ~ 60 ºC (Optional: -10 ~ 60 ºC)
Temperature Control Precision ±0.05 ºC
Temperature Resolution 0.01 ºC
Temperature Difference Between Hot & Cold Plate Adjustable 15~25 ºC
Control System PC automatic control, English operation software
Auxiliary Equipment Matching circulating water bath
Power Supply AC 220V, 50/60Hz
Product Images

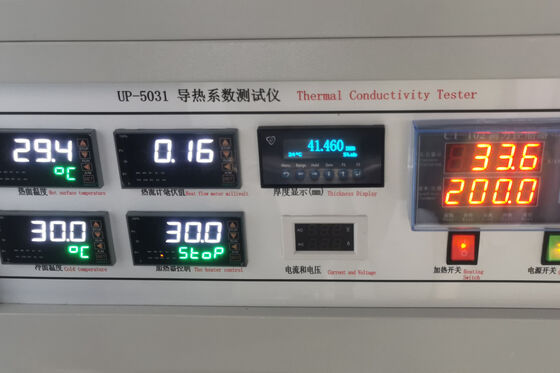

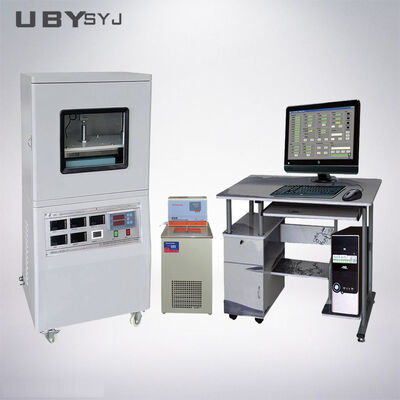

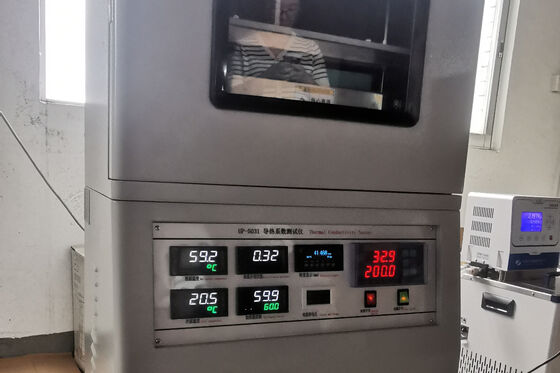

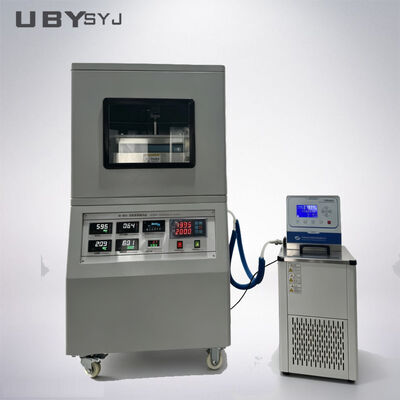

UP-5031 Automatic Guarded Hot Plate Thermal Conductivity Apparatus front view UP-5031 Automatic Guarded Hot Plate Thermal Conductivity Apparatus side view UP-5031 Automatic Guarded Hot Plate Thermal Conductivity Apparatus control interface
Our Service Process
1) Customer Inquiry Process:

Discussing testing requirements and technical details, suggesting suitable products to customer for confirmation. Providing the most competitive pricing according to customer requirements.

2) Specifications Customization Process:

Creating detailed drawings for customized requirements confirmation. Providing reference photos to illustrate product appearance. Finalizing solution and confirming pricing with customer.

3) Production and Delivery Process:

Manufacturing machines according to confirmed PO requirements. Providing production progress photos. Conducting factory calibration or third-party calibration as required. Final inspection and professional packing before timely delivery.

4) Installation and After-Sales Service:

Providing field installation services and comprehensive after-sales support to ensure optimal equipment performance.

Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory includes a 12-month warranty after shipment, with 12 months of free maintenance. Considering sea transportation, we extend an additional 2 months for our international customers.

If your equipment requires service, you can contact us via email or phone. We will diagnose the issue through conversation or video chat if necessary. Once the problem is confirmed, we provide solutions within 24 to 48 hours.

What about the delivery term?

For standard machines in stock: 3-7 working days

For non-stock standard machines: 15-20 working days after payment receipt

We accommodate urgent requirements with special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your specific requirements. We provide OEM and ODM services, including placing your logo on the equipment.

How can I install and use the machine?

Upon ordering, we provide comprehensive English operation manuals and instructional videos via email. Most machines are shipped fully assembled - you simply need to connect the power cable to begin operation. When necessary, we provide on-site installation assistance.
