UP-5031 Guarded Hot Plate Thermal Conductivity Tester Compliant With ASTM C177 ISO8302 for 0.001 ~ 2.0 W/(m·K) Range and ±3% Accuracy

1
MOQ
Negotiable
Price
UP-5031 Guarded Hot Plate Thermal Conductivity Tester Compliant With ASTM C177 ISO8302 for 0.001 ~ 2.0 W/(m·K) Range and ±3% Accuracy
Features Gallery Product Description Chat Now
Features
Specifications
Model: UP-5031
Test Method: Guarded Hot Plate Steady-State Method
Thermal Conductivity Range: 0.001 ~ 2.0 W/(m·K)
Measurement Accuracy: ±3%
Hot Plate Temperature Range: RT ~ 110 ℃
Cold Plate Temperature Range: 0 ~ 60 ℃ (Optional: -10 ~ 60 ℃)
Power Supply: AC 220V, 50/60Hz
Service Support: OEM ODM
Language: Chinese And English
Max Sample Size: 300 × 300 Mm, Thickness 5 ~ 100 Mm
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE, ISO
Model Number: UP-5031
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5~10 work days
Payment Terms: D/P,T/T,Western Union
Supply Ability: 20 Unit/month
Product Description
UP-5031 Guarded Hot Plate Thermal Conductivity Tester Compliant With ASTM C177 ISO8302
Product Introduction

The Guarded Hot Plate Thermal Conductivity Tester employs the classic guarded hot plate steady-state method principle. Its guard heating structure effectively eliminates edge heat loss, delivering high-precision and repeatable test results for low thermal conductivity insulation materials.

Equipped with an independent hot plate and cold plate temperature control system, high-precision temperature sensors, and professional Windows testing software, this instrument supports automatic data collection, calculation, curve display, and test report output.

Compliance Standards
  • ISO 8302: Thermal insulation - Determination of steady-state thermal resistance and related properties - Guarded hot plate method
  • ASTM C177: Standard Test Method for Steady-State Heat Flux Measurements and Thermal Transmission Properties by Means of the Guarded-Hot-Plate Apparatus
Applications

Suitable for testing flat slab-shaped thermal insulation and low heat-conductive materials including:

  • Building insulation materials
  • Advanced insulation materials
  • Plastic and rubber materials
  • New energy materials
  • Powder and loose fibrous materials
  • Materials research laboratories and third-party testing institutes
Technical Specifications
Item Specification
Test Method Guarded Hot Plate Steady-State Method
Thermal Conductivity Range 0.001 ~ 2.0 W/(m*K)
Measurement Accuracy ±3%
Repeatability ≤±1%
Max Sample Size 300 × 300 mm, thickness 5 ~ 100 mm (200×200mm optional)
Hot Plate Temperature Range RT ~ 110 ºC
Cold Plate Temperature Range 0 ~ 60 ºC (Optional: -10 ~ 60 ºC)
Temperature Control Precision ±0.05 ºC
Temperature Resolution 0.01 ºC
Temperature Difference Between Hot & Cold Plate Adjustable 15~25 ºC
Control System PC automatic control, English operation software
Auxiliary Equipment Matching circulating water bath
Power Supply AC 220V, 50/60Hz
Product Images

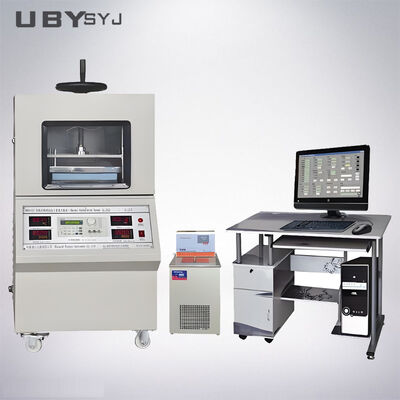

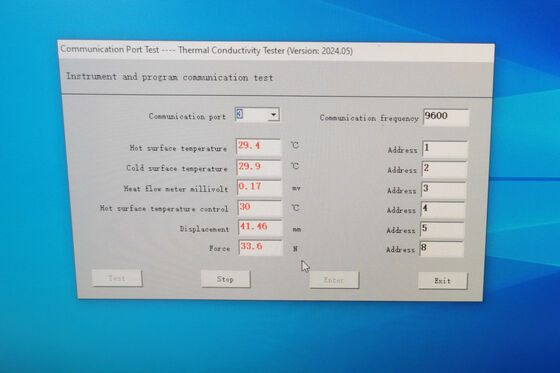

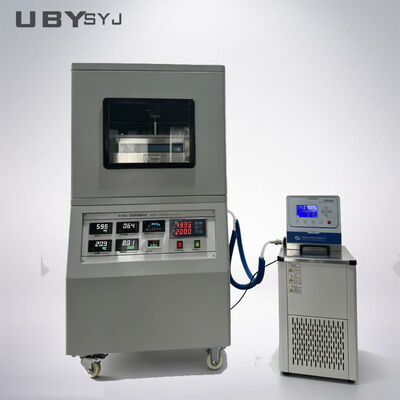

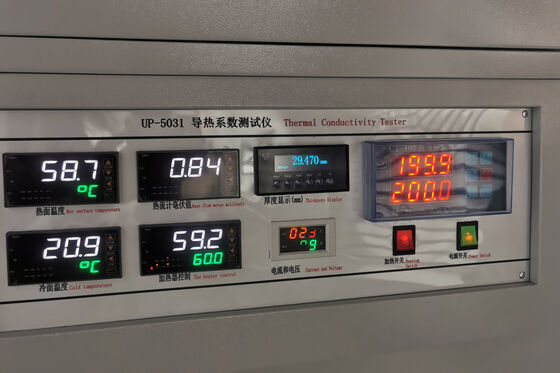

UP-5031 Guarded Hot Plate Thermal Conductivity Tester front view UP-5031 Guarded Hot Plate Thermal Conductivity Tester side view UP-5031 Guarded Hot Plate Thermal Conductivity Tester control interface
Our Service Process
Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing.
Specifications Customization Process: Create drawings for customized requirements, provide reference photos, and confirm final solutions and pricing.
Production and Delivery Process: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and arrange timely shipping.
Installation and After-Sales Service: Provide field installation support and comprehensive after-sales assistance.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment, with 12 months of free maintenance. We extend an additional 2 months to account for sea transportation. If your machine requires service, contact us via email or phone. We'll diagnose the issue and provide solutions within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days. Out-of-stock items: 15-20 working days after payment. We accommodate urgent requests with special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including adding your logo to the equipment.
How can I install and use the machine?
We provide English operation manuals and videos via email. Most machines ship fully assembled - simply connect the power cable to begin operation. We offer on-site installation assistance when necessary.
