UP-5009 Rubber Mooney Viscometer with ±0.3°C Temperature Control Precision and 0.01 MU Resolution for ASTM D1646 ISO 289 Compliance

1
MOQ
Negotiable
Price
UP-5009 Rubber Mooney Viscometer with ±0.3°C Temperature Control Precision and 0.01 MU Resolution for ASTM D1646 ISO 289 Compliance
Features Gallery Product Description Chat Now
Features
Specifications
Model: UP-5009
Measuring Range: 0 ~ 200 Mooney Units (MU)
Mooney Value Resolution: 0.01 MU
Measuring Accuracy: ±0.5 MU
Standard Rotor Speed: 2 ±0.02 Rpm
Temperature Range: Ambient ~ 200°C
Temperature Control Precision: ±0.3°C
Temperature Resolution: 0.1°C
Basic Infomation
Brand Name: Rubber Mooney Viscometer
Certification: CE,ISO
Model Number: UP-5009
Payment & Shipping Terms
Packaging Details: Professional Export Packing
Delivery Time: 5~10 work days
Payment Terms: D/P,T/T,Western Union
Supply Ability: 20 Unit/month
Product Description
UP-5009 Rubber Mooney Viscometer for Unvulcanized Rubber Viscosity Scorch Test
UP-5009 Rubber Mooney Viscometer is designed for testing unvulcanized rubber according to ASTM D1646 and ISO 289 standards.
Product Introduction
Mooney Viscometer is a core laboratory testing instrument for the rubber and elastomer industry. It measures Mooney viscosity, Mooney scorch time, and stress relaxation characteristics of uncured raw rubber, rubber compounds, and masterbatch. The instrument detects the shear torque resistance of a rotor rotating inside a rubber sample under constant temperature, evaluating rubber processability, batch consistency, and premature vulcanization risk. Equipped with high-precision torque sensor and intelligent temperature control system; supports computer data acquisition, curve display, automatic data recording, and export.
Standards Compliance
ASTM D1646, ISO 289, GB/T 1232, GB/T 1233, DIN 53523, JIS K6300
Applications
Suitable for incoming inspection, production QC and material research & development, including:
  • Natural rubber and synthetic rubber manufacturers
  • Rubber compound & masterbatch producers
  • Tire, rubber hose, and sealing parts factories
  • Conveyor belt and rubber footwear manufacturers
  • Universities and material research centers
Technical Specifications
Parameter Specification
Measuring Range 0 ~ 200 Mooney Units (MU)
Mooney Value Resolution 0.01 MU
Measuring Accuracy ±0.5 MU
Standard Rotor Speed 2 ±0.02 rpm
Rotor Options Large rotor Φ38.10 mm (Standard); Small rotor Φ30.48 mm (Optional)
Temperature Range Ambient ~ 200°C
Temperature Control Precision: ±0.3°C; Resolution: 0.1°C
Test Modes Mooney Viscosity, Mooney Scorch, Stress Relaxation
Closing Method Pneumatic clamping
Data Output USB, RS232; Supports curve print & data export
Power Supply AC220V±10%, 50Hz, 1500W
Overall Dimension (W×D×H) 550 × 620 × 1260 mm
Net Weight Approx. 180 kg
Product Images

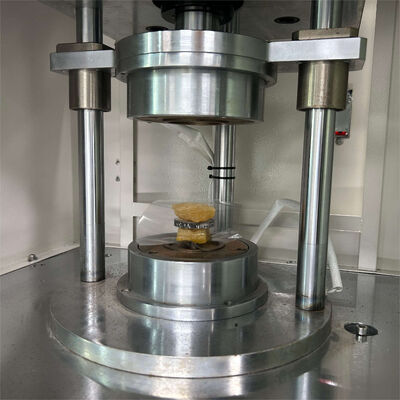

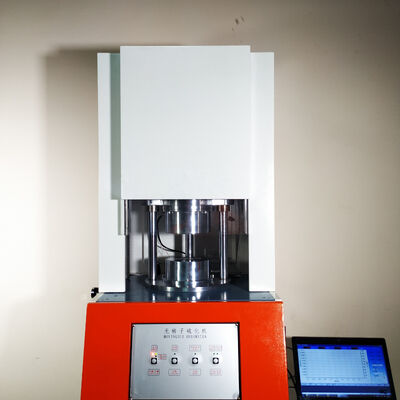

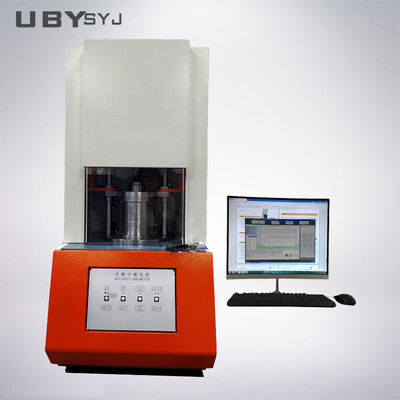

UP-5009 Rubber Mooney Viscometer front view showing control panel and test chamber UP-5009 Rubber Mooney Viscometer side view displaying instrument dimensions and construction
