UP-5008 Rotorless Rheometer with 0.01℃ Resolution for Rubber Testing and Vulcanization Property Analysis

1
MOQ
Negotiable
Price
UP-5008 Rotorless Rheometer with 0.01℃ Resolution for Rubber Testing and Vulcanization Property Analysis
Features Gallery Product Description Chat Now
Features
Specifications
Torque Resolution: 1/50000
Temperature Control Range: 60℃ — 300℃
Language: Chinese And English
Temperature Resolution: 0.01℃
Torque Unit: N.m, N.inch, Kg.m, Kg.cm, Kg.inch, Lb.m, Lb.inch
Service Support: OEM ODM
Temperature Fluctuation Range: ±0.15℃
Applications: For Plastic, Rubber, Fiber, Foam, Film, And Film
Torque Precision: 0.30%
Model NO.: UP-5008
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE, ISO
Model Number: UP-5008
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5~10 work days
Payment Terms: D/P,T/T,Western Union
Supply Ability: 20 Unit/month
Product Description
UP-5008 Rubber Rotorless Rheometer Vulcanization Property Testing Instrument for Tire And Seals Factory
Product Introduction
Rotorless rheometer is a high-precision professional testing instrument designed for vulcanization performance and viscoelastic property analysis of rubber and polymer materials. Equipped with a high-sensitivity torque detection system and precise constant-temperature control module, the equipment can accurately capture the whole vulcanization process of materials, including scorch time, optimal curing time, vulcanization rate and torque changes. It supports multi-unit switching, high-speed data acquisition and multi-language operation.
Standards Compliance
GB/T16584, ISO6502:1991 and ASTMD5289-95
Applications
It is the most important testing instrument for national research and development of new products, research on rubber compound formula, control rubber material quality and rubber basic research application. Widely used in all walks of life in rubber products.
Technical Specifications
Item Specification
Torque Resolution 1/50000
Torque Precision 0.30%
Torque Unit N.m, N.inch, kg.m, kg.cm, kg.inch, Lb.m, Lb.inch
Temperature Control Range 60℃ -- 300℃
Temperature Fluctuation Range ±0.15℃
Temperature Resolution 0.01℃
Temperature Recovery Time After Clamping < 1min
Temperature Unit °C, °F
Acquisition Rate 200 SPS
Supported Language English, Simplified Chinese, Traditional Chinese
Applicable Standards GB/T 16584, ASTM D5289, ISO 6502
Counting Parameters ts1, ts2, t10, t30, t50, t70, t90, Vc1, Vc2
Software Interface USB2.0
Product Images

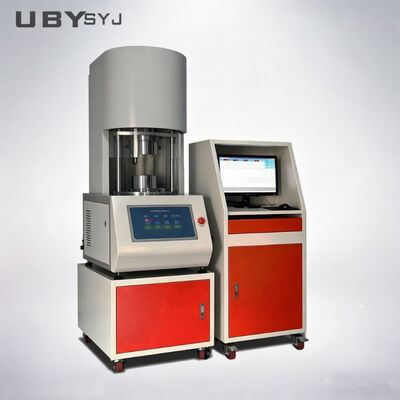

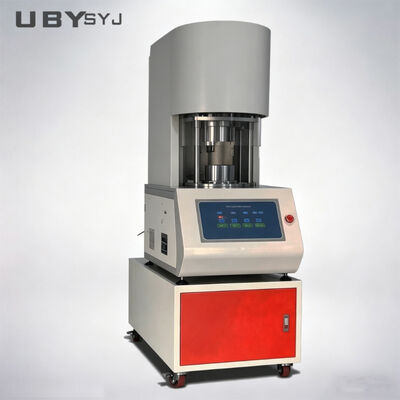

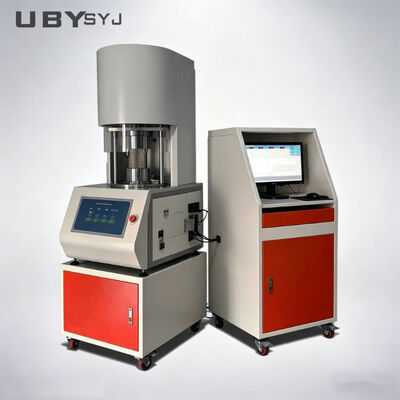

UP-5008 Rubber Rotorless Rheometer testing instrument Laboratory Computer Control Rotorless Moving Die Rheometer for Rubber Close-up view of rheometer testing chamber
Our Service Process
During the whole business process, we offer Consultative Selling services.
  • Customer Inquiry Process: Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.
  • Specifications Customize Process: Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.
  • Production and Delivery Process: We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration (as per customer requirements). Check and test all the details and then arrange packing. Delivering the products is confirmed shipping time and informed the customer.
  • Installation and After-Sale Service: Defines installing those products in the field and providing after-sales support.
Frequently Asked Questions
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance, while considering sea transportation, we can extend 2 months for our customers. Moreover, if your machine doesn't work, you can send us an e-mail or call us - we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines: If we have stock in the warehouse, delivery is 3-7 working days; If there is no stock, normally, the delivery time is 15-20 working days after payment is received; If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machines are shipped as complete units, which means they are already installed - you just need to connect the power cable and start using it. And if it's necessary, we can also assist you to install your machine on-site.
