Home /Products/Packaging Testing Equipment/UP-6002 High Precision Digital Display Semi-automatic Carton Burst Test Machine for Packaging Material Quality Inspection

UP-6002 High Precision Digital Display Semi-automatic Carton Burst Test Machine for Packaging Material Quality Inspection

1
MOQ
Negotiable
Price
UP-6002 High Precision Digital Display Semi-automatic Carton Burst Test Machine for Packaging Material Quality Inspection
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-6002
Type: Packaging Testing Machine
Sensing Method: Pressure Transducer
Display: Digital
Specimen Clamping Force: >690kpa
Sample Thickness Range: 0 ~ 10 Mm
Pressurizing Speed: 170±10 Ml/min (High-pressure Semi-automatic)
Oil: 85% Glycerin; 15% Distilled Water
Power Source: AC220V 50Hz
Delivery Terms: CIF, DDP, DDU, FedEx, DHL, Fob
Highlight:

digital display carton burst test machine

,

semi-automatic packaging material tester

,

high precision packaging testing equipment
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6002
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging.
Delivery Time: 5-15 work days
Payment Terms: D/P,T/T,Western Union
Supply Ability: 20 Unit/month
Product Description
UP-6002 High Precision Carton Burst Test Machine For Packaging Material Quality Inspection
The UP-6002 High Precision Carton Burst Test Machine is designed for comprehensive quality inspection of packaging materials, testing the bursting strength of various paper types including plain paper, corrugated paper, toilet paper, packaging materials, tape, leather, packaging films, and fabrics.
Key Features
  • Advanced microcomputer controller and digital processor for precise results
  • Built-in thermal printer for data saving and printing
  • Safety protection device with overload power-off function
  • Multiple unit switching capability (kPa, psi, kgf/cm²)
Compliance Standards
JIS-L1004, L1018, L1031, K6328, P8131, P8112, ASTMD2210, TAPPI T403, ISO2759-2001, GB/T1539
Technical Specifications
Item Specification
Sensing Method Pressure Transducer
Display Mode Digital Display
Operation Mode Semi-automatic
Force Unit kPa, psi (Lbs/in²), kgf/cm², with unit switching function
Pressure Range High pressure type: 0~100 kgf/cm², resolution 0.1 kgf/cm²
Clamp Ring Material SUS304 Stainless Steel
Inner Diameter of Clamp Ring Upper & lower clamp ring: φ31.5±0.05 mm
Hydraulic Fluid 85% Glycerin + 15% Distilled Water
Opening in Upper Clamp 31.5 ± 0.05 mm Diameter
Opening in Lower Clamp 31.5 ± 0.05 mm Diameter
Sample Thickness Range 0 ~ 10 mm
Motor Power Shockproof Motor, 1/4 HP
Overall Dimension (L×W×H) 450 × 380 × 550 mm
Net Weight 68 kg
Power Supply Single-phase, AC 220V
Product Images

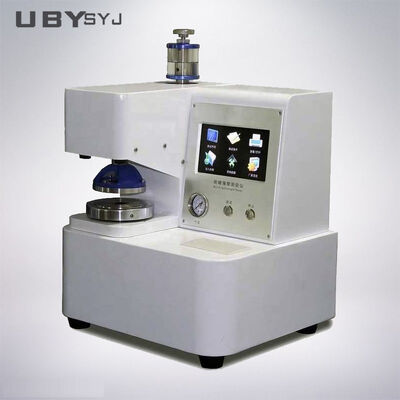

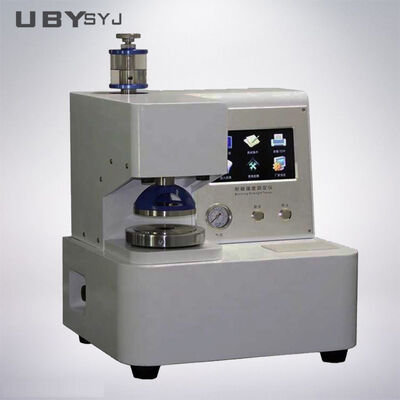

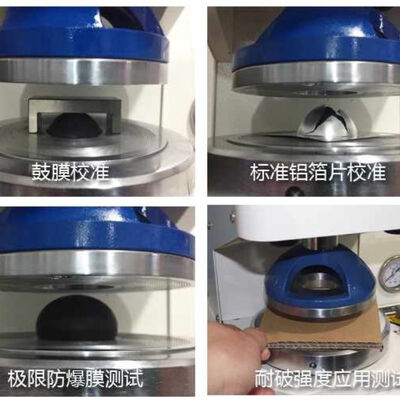

UP-6002 Carton Burst Test Machine front view UP-6002 Carton Burst Test Machine side view UP-6002 Carton Burst Test Machine close-up detail
Our Service Process
  • Customer Inquiry: Technical consultation and product recommendation with competitive pricing
  • Customization: Detailed drawings and reference photos for customized requirements
  • Production & Delivery: Production updates, calibration services, and timely shipping
  • Installation & Support: Field installation and comprehensive after-sales service
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of testing equipment in China. Every machine includes a 12-month warranty with free maintenance. For international shipping, we extend this to 14 months. Technical support is available via email or video chat, with solutions provided within 24-48 hours of problem confirmation.
What about the delivery term?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent requirements receive special priority handling.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including custom logos on equipment.
How can I install and use the machine?
We provide comprehensive English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance is available when necessary.
