Home /Products/Packaging Testing Equipment/Heavy Duty Pallet Box Compression Tester with 1200×1200×1500mm Test Space, ±1% Accuracy and PLC Touch Control System

Heavy Duty Pallet Box Compression Tester with 1200×1200×1500mm Test Space, ±1% Accuracy and PLC Touch Control System

1 Unit
MOQ
Negotiable
Price
Heavy Duty Pallet Box Compression Tester with 1200×1200×1500mm Test Space, ±1% Accuracy and PLC Touch Control System
Features Gallery Product Description Chat Now
Features
Specifications
Additional Service: Support Customer Customization.
Model NO.: UP-6035
Resolution: 0.1n
Measurement Size: (1200*1200*1200) Other Dimensions Can Be Customized
Return Speed: 100mm/min
Accuracy: ±1%
Product Name: Packaging Testing Equipment
Measurement Range: (50~10000)N
Highlight:

1200×1200×1500mm Test Space Pallet Box Compression Tester

,

±1% Accuracy Packaging Compression Testing Machine

,

PLC Touch Control System Unit Load Compression Tester
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6035
Payment & Shipping Terms
Packaging Details: Professional export packing
Delivery Time: 5-15 work days
Payment Terms: D/P,T/T,Western Union,Paypal
Supply Ability: 30 Unit/month
Product Description
Heavy Duty Pallet Box Compression Tester Full Unit Load Packaging Compression Testing Machine UP-6035
Product Overview

The Carton Pallet Compression Tester is a professional packaging compression resistance testing instrument. It applies continuous and uniform vertical pressure on cartons, palletized packages and packaging containers to measure compression strength, stacking safety load and deformation under long-term stacking load. This equipment simulates actual stacking pressure during warehouse storage and transportation, helping customers evaluate packaging stacking safety, optimize box structure and avoid collapse damage. Equipped with precision force sensor and PLC touch control system, it features stable loading, high test accuracy, automatic data recording and report output.

Compliance Standards

ISO 12048 Compression test for complete, filled transport packages
ASTM D6995 Standard Test Method for Compressive Resistance of Shipping Containers
ASTM D4577 Compression Resistance of Containers
ISTA 1A / 1B / 2A / 3E Packaging Integrity Test
GB/T 4857.3 Packaging transport package - Compression test method

Applications

Widely used for packaging quality inspection, incoming material verification, packaging structure optimization and third-party laboratory certification. Helps manufacturers effectively avoid package deformation, collapse and cargo damage during logistics and storage.

Technical Specifications
Item Specification
Test Force Range 5kN / 10kN / 20kN / 50kN (Optional)
Force Accuracy ±1% FS
Test Space (W×D×H) 1200×1200×1500mm (Customizable)
Loading Speed 1~20 mm/min Adjustable
Test Mode Compression Destruction Test / Constant Load Holding Test
Control System Touch Screen + PLC Precision Control
Data Output Automatic saving, PC report export (Optional)
Working Environment 0℃~40℃, Humidity ≤80% Non-condensing
Power Supply AC220V 50Hz / Custom 380V
Core Advantage Uniform pressure loading, overload protection, anti-tilt structure, meets international certification
Product Images

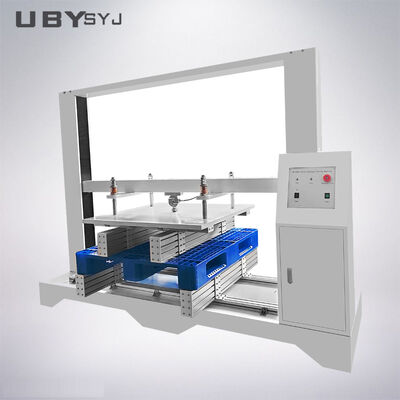

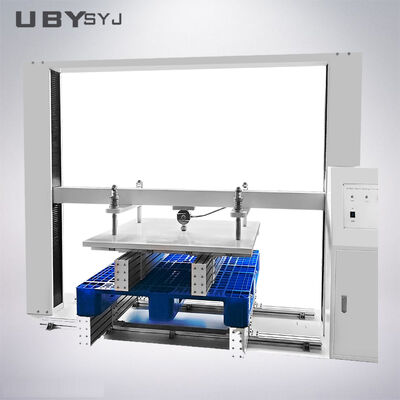

Heavy Duty Pallet Box Compression Tester front view Heavy Duty Pallet Box Compression Tester side view Heavy Duty Pallet Box Compression Tester control panel
Our Service Process
  • Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide pricing quotes
  • Customization Process: Create drawings for customized requirements, provide reference photos, and confirm final solution and pricing
  • Production & Delivery: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and arrange shipping
  • Installation & Support: Provide field installation and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. We offer 12 months of free maintenance, extended to 14 months considering sea transportation. If your machine doesn't work, contact us via email or phone. We will diagnose the problem and provide solutions within 24-48 hours.

What about the delivery term?

For standard machines in stock: 3-7 working days. For machines not in stock: 15-20 working days after payment. We can make special arrangements for urgent requirements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the machine.

How can I install and use the machine?

We provide English operation manuals and videos via email. Most machines are shipped fully assembled - you simply need to connect the power cable and begin use. We can also provide on-site installation assistance when necessary.

Tag:

Carton Compression Tester

Packaging Compression Tester

Packaging Testing Machine
