UP-6000 Paper Cardboard Flat Crush Tester with USB and RS232 Ports, 200kgf Capacity, and 12.7mm/min Speed for Corrugated Boxes

1
MOQ
Negotiable
Price
UP-6000 Paper Cardboard Flat Crush Tester with USB and RS232 Ports, 200kgf Capacity, and 12.7mm/min Speed for Corrugated Boxes
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-6000
Additional Service: Support Customer Customization.
Delivery Terms: CIF, DDP, DDU, FedEx, DHL, FOB
Highlight:

paper cardboard crush tester with USB

,

flat crush tester for corrugated boxes

,

200kgf capacity packaging testing equipment
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6000
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5~10 work days
Payment Terms: D/P,T/T,Western Union
Supply Ability: 20 Unit/month
Product Description
Convenient Paper Cardboard Flat Crush Tester With USB and RS232 Ports for Easy Data Export to PC or Printer UP-6000

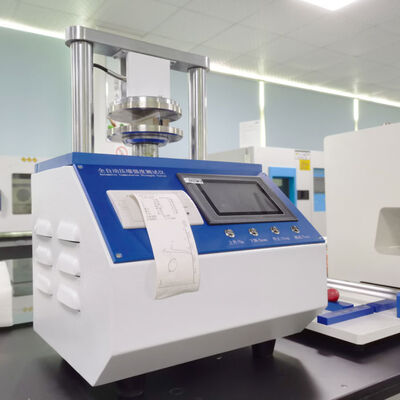

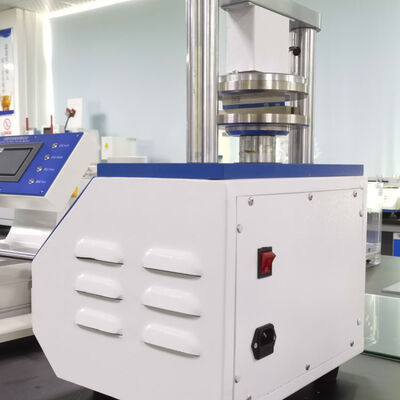

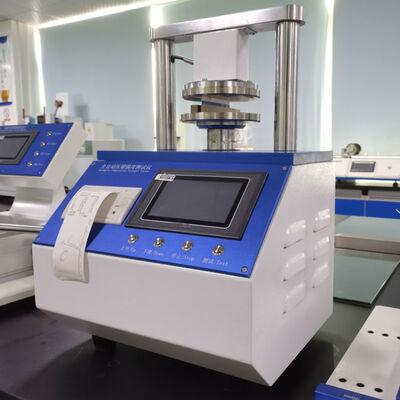

Paper Cardboard Flat Crush Tester For Corrugated Boxes
Application

Designed for ring pressure testing on corrugated paper or leather paper below 1mm thickness. Features high precision roll ball rod to drive pressure plate operation, ensuring stable pressing in the correct orbit. The high precision conductor captures pressure signals and displays test data on a digital display. When combined with attachments, it can check strength under horizontal pressure, flat pressure, and adhesive pressure.

Specification
Model UP-6000
Capacity 200kgf
Resolution 1/25,000
Accuracy ±1%
Plywood ∮150mm
Plywood space 0~150mm
Tester speed 12.7mm/min
Motor 120w
Main unit dimension (WxDxH) 400x390x730mm
Weight About 55kg
Power supply AC220V 3A or specified by user
UP-6000 Paper Cardboard Flat Crush Tester with USB and RS232 Ports, 200kgf Capacity, and 12.7mm/min Speed for Corrugated Boxes 0 UP-6000 Paper Cardboard Flat Crush Tester with USB and RS232 Ports, 200kgf Capacity, and 12.7mm/min Speed for Corrugated Boxes 1 UP-6000 Paper Cardboard Flat Crush Tester with USB and RS232 Ports, 200kgf Capacity, and 12.7mm/min Speed for Corrugated Boxes 2
Our Service

During the entire business process, we offer consultative selling services:

Customer Inquiry Process

Discuss testing requirements and technical details, suggest suitable products for customer confirmation, then provide the most appropriate pricing according to customer requirements.

Specifications Customize Process

Create related drawings for customer confirmation of customized requirements. Provide reference photos to show product appearance. Confirm final solution and pricing with customer.

Production and Delivery Process

Produce machines according to confirmed PO requirements. Provide photos showing production progress. After completion, share photos for customer confirmation. Perform factory calibration or third-party calibration as required. Test all details and arrange packing. Deliver products according to confirmed shipping schedule.

Installation and After-Sale Service

Provide field installation services and comprehensive after-sales support.

Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory includes a 12-month warranty after shipment. We offer 12 months of free maintenance, with an additional 2-month extension considering sea transportation.

If your machine experiences issues, contact us via email or phone. We will troubleshoot through conversation or video chat if necessary. Once the problem is confirmed, we provide solutions within 24 to 48 hours.

What about the delivery term?

For standard machines in stock: 3-7 working days

For out-of-stock items: 15-20 working days after payment receipt

We accommodate urgent requirements with special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on machines.

How can I install and use the machine?

After ordering, we provide English operation manuals or videos via email. Most machines ship fully assembled - simply connect the power cable and begin operation. When necessary, we provide on-site installation assistance.
