Single Station Coating Abrasion Tester with 100 mm ±5 mm Stroke and 6.5 ±0.2m /Min Speed for Durability Testing

1 Unit
MOQ
Negotiable
Price
Single Station Coating Abrasion Tester with 100 mm ±5 mm Stroke and 6.5 ±0.2m /Min Speed for Durability Testing
Features Gallery Product Description Ratings & Review Chat Now
Features
Specifications
Model NO.: UP-1011
Counter: 4 Digits Pre-Set Counter.
Horizontal Reciprocating Stroke: 100 Mm ±5 Mm
Applications: Cookware,Coating,Painting And Etc.
Service Support: OEM ODM
Language: Chinese And English
Speed: 6.5 ±0.2m /Min
Specification: Refer To The Actual Size Specifications
Highlight:

Single station coating abrasion tester

,

Abrasion testing machine with 100mm stroke

,

Durability tester with 6.5m/min speed
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-1011
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5-15 work days
Payment Terms: D/P,T/T,Western Unions,Papal,Money Gram
Supply Ability: 20 Unit/month
Product Description

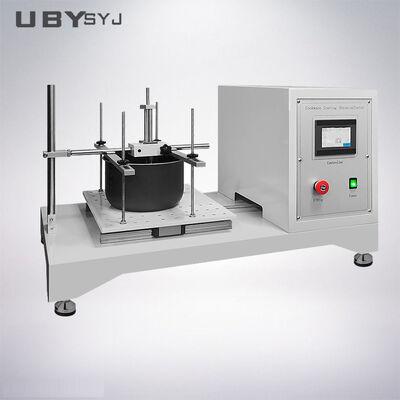

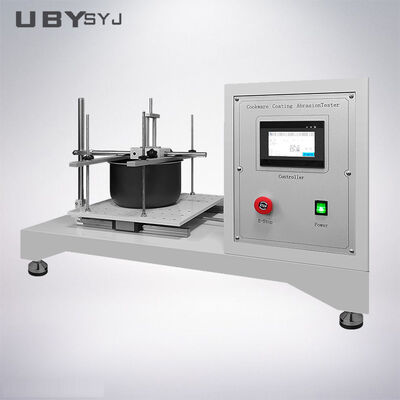

UP-1011 Single Station Kitchen Utensil Coating Abrasion Tester
Product Introduction

The coating abrasion resistance tester is specialized inspection equipment for conducting friction abrasion tests on non-stick coatings of cookware, kitchen utensils, rice cookers, frying pans, and other products with painted or screen-printed surfaces. It evaluates the abrasion durability of surface coatings by simulating repeated friction on cookware inner walls.

Key Features
  • Driven by Taiwan-made stepper motor, featuring high precision, accurate positioning, low noise and stable long-duration continuous operation
  • Equipped with customized power rectifier circuit, which improves long-term service life and anti-interference performance of the motor and executive components
  • Adopts high-precision photoelectric switches from Korea AUTONIS for origin sensing, with high pulse frequency and outstanding durability
  • Equipped with LCD display controller for program input; counter controls stepper motor operation
  • Test speed, test cycles, motor origin return, and reciprocating rotation mode (Clockwise-Counterclockwise-Clockwise) are all fully programmable
  • Automatic cycle counting function; the machine will send an early warning and automatically stop once the preset number of test cycles is reached
Technical Specifications
Item Parameter
Test Station Single station
Presettable Test Cycles 0 ~ 99999 cycles
Test Rotation Speed (60±1) r/min
Circumferential Test Stroke 0 ~ 280 mm (adjustable rotation range)
Stirrer Mounting Rod Height adjustable
Standard Aluminum Stirring Baffles 5 pcs in total: 18cm, 20cm, 22cm, 24cm, 26cm
Test Clearance of Stirring Baffle 10 mm (no contact with inner pot surface)
Overall Machine Dimension 1100×650×800 mm
BS 7069 Non Stick Surface Cookware Electronic Coating Abrasion Resistance Tester UP-1011 Coating Abrasion Tester Detailed View
Our Service Process
  • Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide pricing
  • Customization Process: Create drawings for customized requirements, provide reference photos, and confirm final solution and pricing
  • Production & Delivery: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and arrange shipping
  • Installation & Support: Provide field installation and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. We offer 12 months of FREE maintenance, with an additional 2-month extension considering sea transportation. If your machine doesn't work, contact us via email or phone. We will diagnose the problem through conversation or video chat and provide solutions within 24 to 48 hours.
What about the delivery term?
For standard machines in stock: 3-7 working days. For non-stock items: 15-20 working days after payment. We can make special arrangements for urgent needs.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including adding your logo to the machine.
How can I install and use the machine?
We provide English operation manuals and videos via email. Most machines are shipped fully assembled - you just need to connect the power cable and start using. We can also assist with on-site installation when necessary.
