Home /Products/Abrasion Testing Machine/UP-1002 RCA Abrasion Tester with 55g 175g 275g Load Digital Counter 0~99999999 ASTM F 2357-04 Compliant Electronic Housing Wear Test Machine

UP-1002 RCA Abrasion Tester with 55g 175g 275g Load Digital Counter 0~99999999 ASTM F 2357-04 Compliant Electronic Housing Wear Test Machine

1
MOQ
Negotiable
Price
UP-1002 RCA Abrasion Tester with 55g 175g 275g Load Digital Counter 0~99999999 ASTM F 2357-04 Compliant Electronic Housing Wear Test Machine
Features Gallery Product Description Ratings & Review Chat Now
Features
Specifications
HS Code: 9024800000
Model NO.: UP-1002
Language: Chinese And English
Roller Diameter: 42mm
Load: 55g, 175g, 275g
Specification: Refer To The Actual Size Specifications
Service Support: OEM ODM
MOQ: 1 PCS
Counter: 0~99999999 (adjustable)
Power Supply: AC 220V / 110V 50/60Hz
Highlight:

RCA abrasion tester with digital counter

,

Abrasion testing machine with ASTM compliance

,

Electronic housing wear test machine
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-1002
Payment & Shipping Terms
Packaging Details: Professional Export Packing
Delivery Time: 5-10 work days
Payment Terms: D/P,T/T,Western Union
Supply Ability: 20 Unit/Month
Product Description
UP-1002 Digital Counter RCA Abrasion Tester
Product Overview

The RCA abrasion tester utilizes specialized test paper tape as a friction medium with fixed loads to evaluate wear resistance. The friction head, driven by fixed-diameter rollers and a constant speed motor, continuously applies force to the sample surface until the substrate becomes visible or specific wear levels are reached. A digital counter displays motor rotation cycles to assess sample durability.

Standards & Applications

Conforms to ASTM F 2357-04 standard for wear resistance testing. Suitable for evaluating plastic components, MP3 players, CD/DVD players, laptops, PDAs, electrical enclosures, and various electronic housings.

Technical Specifications
Parameter Specification
Test Load 55g, 175g, 275g (custom loads available)
Test Scroll Speed 17 cycles/min (fixed stable speed)
Counter Mode Digital preset counter with auto-stop function
Count Range 0 - 999,999 cycles
Test Paper Original RCA abrasive paper tape
Test Specimen Size Max width 50mm, unlimited length
Roller Diameter 42 mm
Power Supply AC 220V / 110V 50/60Hz
Dimensions 530 × 490 × 410mm
Weight 30 kg
Product Images

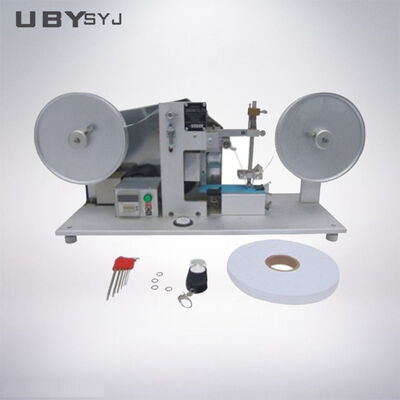

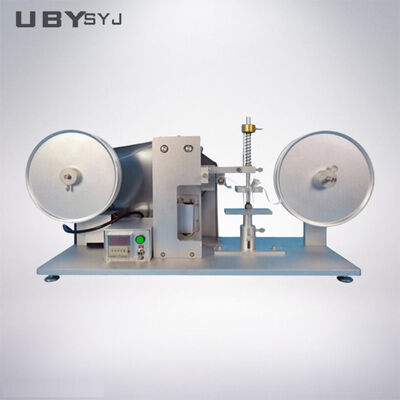

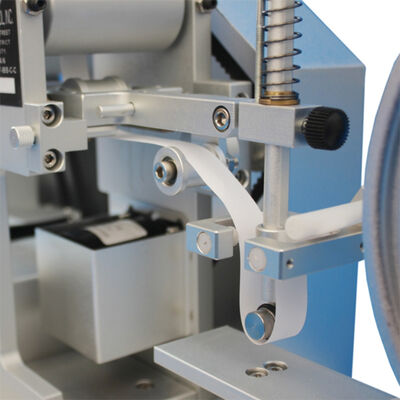

UP-1002 RCA Abrasion Tester front view UP-1002 RCA Abrasion Tester side view UP-1002 RCA Abrasion Tester close-up detail
Our Service Process
  • Customer Inquiry: Technical consultation and product recommendations with competitive pricing
  • Customization: Detailed drawings and reference photos for customized requirements
  • Production & Delivery: Quality-controlled manufacturing with progress updates and calibration services
  • Installation & Support: Professional installation and comprehensive after-sales service
Frequently Asked Questions
Are you a manufacturer? What is your warranty and after-sales service policy?
Yes, we are professional manufacturers of environmental chambers, leather shoe testing equipment, and plastic/rubber testing equipment. All machines include a 12-month warranty (extended to 14 months for sea transportation). We provide free maintenance and offer technical support via email, phone, or video chat with solutions provided within 24-48 hours.
What is your delivery timeline?
Standard machines in stock: 3-7 working days. Out-of-stock items: 15-20 working days after payment. We accommodate urgent requirements with special arrangements.
Do you accept customization and OEM services?
Yes, we offer both standard and customized machines according to your specifications, including OEM and ODM services with your logo.
How do I install and operate the machine?
We provide comprehensive English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance is available when necessary.
