Name: Temi580 5-inch Color TFT Touchscreen Temperature and Humidity Controller with ±0.2ºC Accuracy and 4 DI External Alarms
Brand: Dongguan Youbi Test Equipment Co.,Ltd
SKU: TEMI580
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Model NO.: TEMI580

Screen Specifications: 5-inch Color TFT Touchscreen, 480×272 Resolution

Warranty: 1 Year

Control Modes: Fixed Value Run / Program Run (Programmable)

Sensor Type: 2 Thermal Resistance PT100 (optional Electronic Sensor Input)

Temperature Range: -90.0ºC ~ +200.0ºC (Customizable -90ºC ~ +300ºC)

Temperatur Accuracy: ± 0.2 ℃

Humidity Range: 1.0%~100% RH

Humidity Accuracy: ± 1% RH

Communication Interface: RS232 / RS485, Max Communication Distance 1.2km

Highlight:

5-inch TFT touchscreen temperature controller

humidity controller with external alarms

high accuracy temperature controller ±0.2ºC

Basic Infomation

Place of Origin: CHINA

Brand Name: YOUBI

Certification: CE, ISO

Model Number: TEMI580

Payment & Shipping Terms

Packaging Details: Professional export packaging

Delivery Time: 5~10 work days

Payment Terms: D/P,T/T,Western Union,Paypal

Supply Ability: 20 Unit/month

Gallery

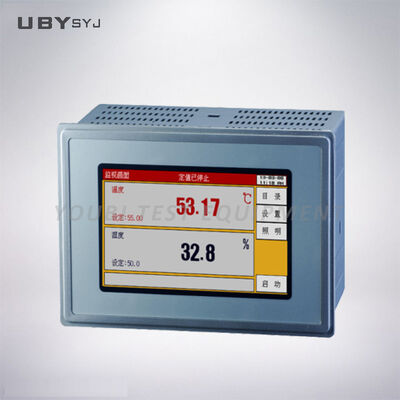

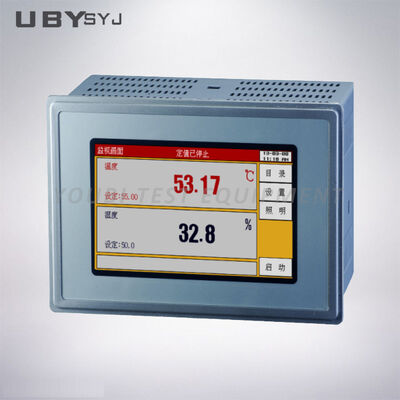

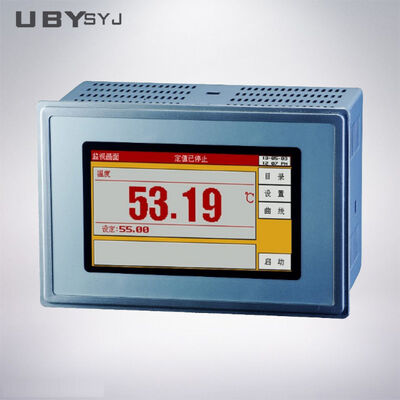

Temi580 5-inch Color TFT Touchscreen Temperature and Humidity Controller with ±0.2ºC Accuracy and 4 DI External Alarms

Product Description

Temi580 Safe Temperature and Humidity Controller with 4 External DI Alarms

Product Overview

TEMI580 is a cost-effective programmable temperature and humidity controller specifically designed for environmental testing equipment, including constant temperature and humidity chambers. It is ideal for constant temperature and humidity testing or simple high and low temperature applications. While featuring programmable functionality, its capacity is limited and complex curves may require manual intervention.

Technical Specifications

Item	Specification
Screen Specifications	5-inch Color TFT Touchscreen, 480*272 Resolution
Control Modes	Fixed Value Run / Program Run (Programmable)
Installation Method	Embedded Panel Installation
Sensor Type	2 Thermal Resistance PT100 (optional electronic sensor input)
Temperature Range	-90.0ºC ~ +200.0ºC (Customizable -90ºC ~ +300ºC)
Control Accuracy	±0.2ºC
Humidity Range	1.0%~100% RH
Humidity Accuracy	± 1% RH
Program Capacity	10 Sets of Programs Can Be Edited, Maximum of 12 Segments Per Set
Communication Interface	RS232 / RS485, Max Communication Distance 1.2km
Alarm Signal	4 DI External Failure Alarms
Dimensions (WHD)	180120100mm
Panel Cutout (W*H)	170*110mm
Power Supply	100-240VAC,50/60Hz, The maximum power consumption is about 15VA

Product Images

Our Service Process

1) Customer Inquiry Process

Discussing testing requirements and technical details, suggesting suitable products to customer for confirmation. Then quote the most appropriate price according to customer requirements.

2) Specifications Customize Process

Creating related drawings to confirm customized requirements with customer. Providing reference photos to show product appearance. Then confirming the final solution and price with the customer.

3) Production and Delivery Process

Producing machines according to confirmed PO requirements. Providing photos to show production progress. After completion, sharing photos for final confirmation. Performing factory calibration or third-party calibration as required. Testing all details and arranging packaging. Delivering products within confirmed shipping timeframe.

4) Installation and After-Sales Service

Providing field installation services and comprehensive after-sales support.

Frequently Asked Questions

1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory includes a 12-month warranty after shipment. We offer 12 months of FREE maintenance, with an additional 2-month extension to account for sea transportation.

If your machine experiences issues, you can contact us via email or phone. We will work to identify the problem through conversation or video chat if necessary. Once confirmed, we provide solutions within 24 to 48 hours.

2. What about the delivery term?

For standard machines in stock: 3-7 working days

For machines not in stock: 15-20 working days after payment receipt

We can make special arrangements for urgent requirements.

3. Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the equipment.

4. How can I install and use the machine?

After ordering, we provide English operation manuals or videos via email. Most machines are shipped fully assembled - you simply need to connect the power cable to begin operation. When necessary, we can assist with on-site installation.
