Plastic Impact Testing Machine Adjustable Height Drop Ball Impact Tester Machine

1 Unit
MOQ
Negotiable
Price
Plastic Impact Testing Machine Adjustable Height Drop Ball Impact Tester Machine
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Impact Tester
Model NO.: UP-3000
Test Precision: 1g
Size Of Clips: Outer Φ150mm, Inner Φ125mm
Test Mode: Mode A, Mode B, Optional
Test Range: Mode A 50~2000g; Mode B 300~2000g
Service Support: OEM ODM
Applications: Plastic, Ceramic, Acrylic, Glass Fiber, Paint And
Highlight:

Adjustable Height Drop Ball Impact Tester

,

Plastic Impact Testing Machine

,

Drop Ball Impact Tester Machine
Basic Infomation
Place of Origin: China
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-3000
Payment & Shipping Terms
Packaging Details: Professional Export Packing
Delivery Time: 5-15 work days
Payment Terms: T/T; D/T; Western Union; Paypal
Supply Ability: 30 Unit/month
Product Description
Adjustable Height Drop Ball Impact Tester Plastic Impact Testing Machine
Product Overview

The machine is suitable for plastic film or sheet do the Free Falling Dart Impact Test under certain height, measure 50% plastic film or sheet sample breakage when the impact of the mass and energy.

Working Principle

The dart freely falls and impact test sample; measure the weight needed to damage 50% of the number of samples to evaluate impact resistance.

Key Features
  • LCD display test data
  • Easy operation, auto process data
  • Pneumatic clips
  • Auto clip and release dart
  • Built-in printer, can print report
  • Two test modes: Mode A and Mode B
Technical Specifications
Parameter Specification
Test mode Mode A, Mode B, optional
Test range Mode A 50~2000g; Mode B 300~2000g
Test precision 1g
Dart weight Mode A 30g; Mode B 260g
Dart size Mode A Φ38mm; Mode B Φ50mm
Weights 5g, 15g, 30g, 45g, 80g, 90g, 8pcs for each
Size of weights Mode A Φ30mm; Mode B Φ45mm
Impact height Mode A 66cm; Mode B 150cm
Size of clips outer Φ150mm, inner Φ125mm
Sample size 180×180mm
Gas source compressed air, 0.6~0.8Mpa
Gas port Φ8mm gas pipe

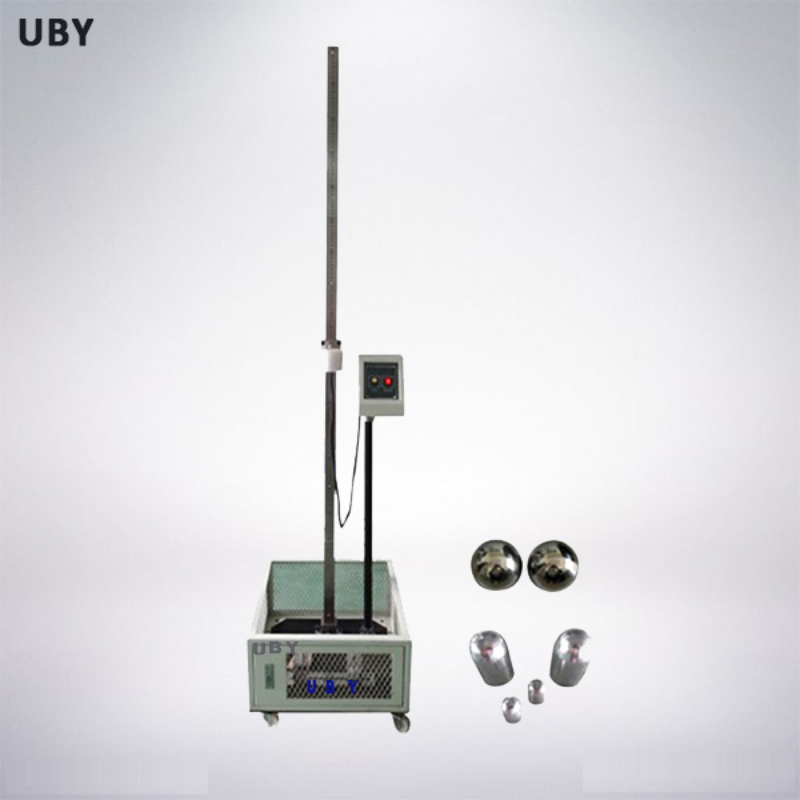

Product Images
Plastic Impact Testing Machine Adjustable Height Drop Ball Impact Tester Machine 0 Plastic Impact Testing Machine Adjustable Height Drop Ball Impact Tester Machine 1 Plastic Impact Testing Machine Adjustable Height Drop Ball Impact Tester Machine 2
Our Service Process
  • Customer Inquiry Process: Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.
  • Specifications Customize Process: Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.
  • Production and Delivery Process: We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration (as per customer requirements). Check and test all the details and then arrange packing. Delivering the products is confirmed shipping time and informed the customer.
  • Installation and After-Sale Service: Defines installing those products in the field and providing after-sales support.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are the one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers. Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

What about the delivery term?

For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days; If there is no stock, normally, the delivery time is 15-20 working days after payment is received; If you are in urgent need, we will make a special arrangement for you.

Do you accept customization services? Can I have my logo on the machine?

Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

How can I install and use the machine?

Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
