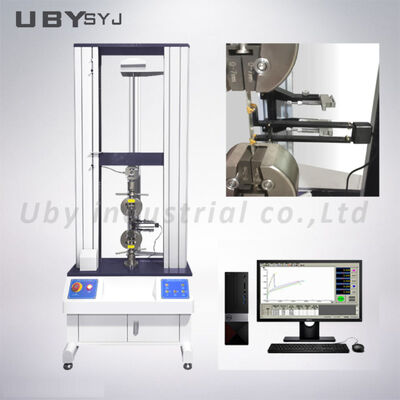

UP-2003 Universal Testing Machine for Accurate Material Testing
The UP-2003 Universal Testing Machine is a versatile tensile strength tester designed for comprehensive material testing in scientific laboratories. This precision instrument performs tensile, compression, bending, shear, peel (90° and 180°), tearing, and elongation rate tests to determine product quality across various industries.
Applications
Suitable for testing textiles, rubber, plastics, synthetic leather, tape, adhesives, plastic films, composite materials, electronics, metals, and other industrial materials and products.
Main Functions
This static tensile test machine performs comprehensive material testing including tensile, compression, bending, shear, peel, tear, and two-point extension (with extensometer) to ensure product quality control across diverse material types.
Key Features
- Electrostatic spray finish for durable, professional appearance
- Digital force display with LCD screen showing tension or pressure readings
- Multiple unit options: N, Kg, Lb, Ton with automatic conversion
- Backlit LCD display for low-light environment operation
- Single measurement capability with maximum force recording in both directions
- Automatic shutdown protection against overload or over-trip conditions
- Single-column structure design for sophisticated, economical operation
Technical Specifications
| Parameter |
Specification |
| Maximum Capacity |
5, 10, 20, 50, 100, 200, 500, 1000, 2000, 3000 Kg |
| Units |
G, KG, N, LB (interchangeable) |
| Accuracy Grade |
0.5 grade / 1 grade |
| Display Device |
PC controlled |
| Resolution |
1/300,000 |
| Effective Accuracy |
±0.2% (0.5 grade) or ±1% (1 grade) |
| Maximum Width |
400mm, 500mm (customizable) |
| Maximum Stroke |
800mm, 1300mm (optional) |
| Speed Range |
0.05-500mm/min (adjustable) |
| Motor Type |
Servo Motor + High Precision Ball Screw |
| Elongation Accuracy |
0.001mm (rubber/soft plastic) / 0.000001mm (metal/hard plastic) |
| Power Requirements |
AC220V, 50/60HZ (custom-made) |
| Machine Dimensions |
800×500×2200mm |
| Standard Accessories |
Tensile clamp, Tool kit, Computer system, English software CD, User manual |
Our Service Commitment
Consultative Selling Process
Inquiry Phase: Technical discussion of testing requirements, product recommendations, and competitive pricing.
Customization Phase: Detailed drawings and reference photos for customized solutions, final pricing confirmation.
Production & Delivery: Production according to PO requirements, progress photos, factory or third-party calibration, quality testing, and timely shipping.
Installation & Support: Field installation services and comprehensive after-sales support.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of environmental chambers, leather shoe testing equipment, and plastic rubber testing equipment. Every machine includes a 12-month warranty after shipment with free maintenance. Considering sea transportation, we extend an additional 2 months for international customers. For technical support, contact us via email or phone - we provide solutions within 24-48 hours after problem confirmation.
What about the delivery term?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent requirements receive special priority scheduling.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to specific requirements. OEM and ODM services include logo placement and branding customization.
How can I install and use the machine?
We provide comprehensive English operation manuals and videos via email. Most machines ship fully assembled - simply connect power and begin operation. On-site installation assistance available when necessary.
