Drop Impact Testing Machine Ik01-10 Pendulum Steel Hammer Aluminum Test Bench

1 Unit
MOQ
Negotiable
Price
Drop Impact Testing Machine Ik01-10 Pendulum Steel Hammer Aluminum Test Bench
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Impact Test Equipment
Model NO.: UP-3012
Service Support: OEM ODM
Language: Chinese And English
Applications: Traffic Lights, Outdoor Signage, Smart Meters And Etc.
Transport Package: Professional Export Packing
Highlight:

Drop Impact Testing Machine

,

Impact Testing Machine Ik01

,

Steel Hammer Aluminum Test Bench
Basic Infomation
Place of Origin: China
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-3012
Payment & Shipping Terms
Packaging Details: Professional Export Packing
Delivery Time: 5-15 work days
Payment Terms: T/T; D/T; Western Union; Paypal
Supply Ability: 30 Unit/month
Product Description
IK Impact Test Equipment IK01-10 Pendulum Steel Hammer Aluminum Test Bench
Product Overview

IK Mechanical Impact Test Apparatus IK01 - IK10 Pendulum Steel Hammer Aluminum Test Bench

This testing device conforms to IEC62262 and is used for mechanical strength testing of sheet metal components including substation arks and metalloid electric energy metering cubicles. The mounting bracket and impact angle are adjustable, designed for energy impact testing exceeding 2J.

Applicable Industries
  • Electrical & Electronics: Lighting fixtures, switches, instrument housings
  • Security & Telecommunications: Surveillance cameras, outdoor communication boxes
  • Automotive: External components like headlights and control panels
  • Public Infrastructure: Traffic lights, outdoor signage, smart meters
  • Industrial Equipment: Protective covers, control cabinets in impact-prone environments
Technical Specifications
Impact Energy Parameters
Energy (J)≤1 ±10%2 ±5%5 ±5%10 ±5%20 ±5%50 ±5%
Equivalent Mass ±2% (kg)0.25 (0.2)0.51.75510
Materialnylonsteel
R (mm)102525505050
D (mm)18.5 (20)356080100125
f (mm)6.2 (10)710202025
r (mm)--6-1017
Drop Height Specifications
Energy (J)0.140.2(0.3)0.35(0.4)0.50.7125102050
Equivalent Mass (kg)0.25(0.2)0.25(0.2)0.25(0.2)(0.2)0.250.250.250.51.75510
Drop Height ±1% (mm)56(100)80(150)140(200)(250)200280400400300200400500
IK Code and Impact Energy Correlation
IK CodeIK00IK01IK02IK03IK04IK05IK06IK07IK08IK09IK10
Impact Energy (J)a0.140.20.350.50.71251020
Product Images

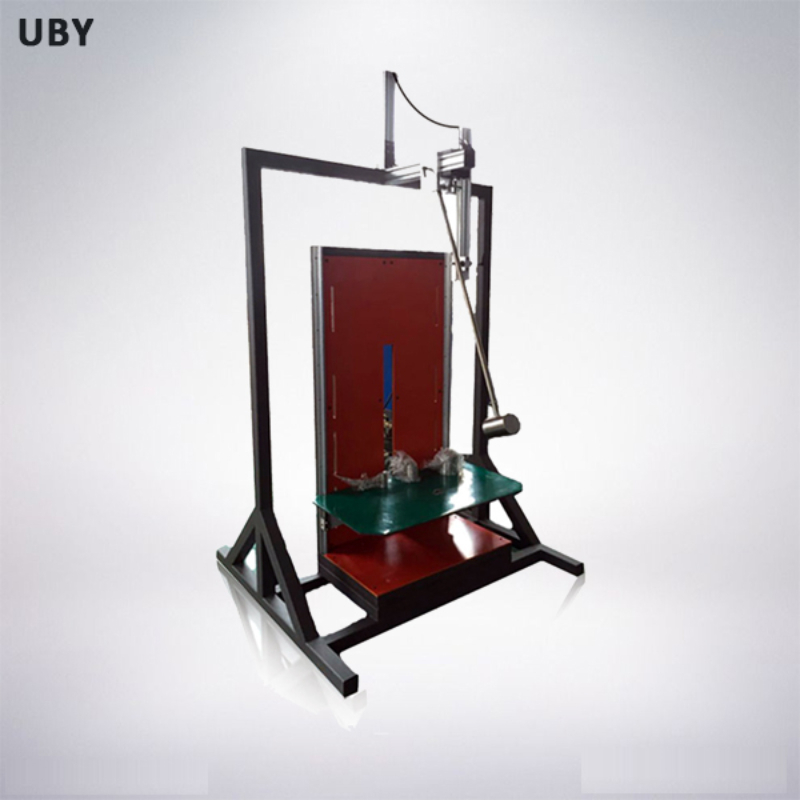

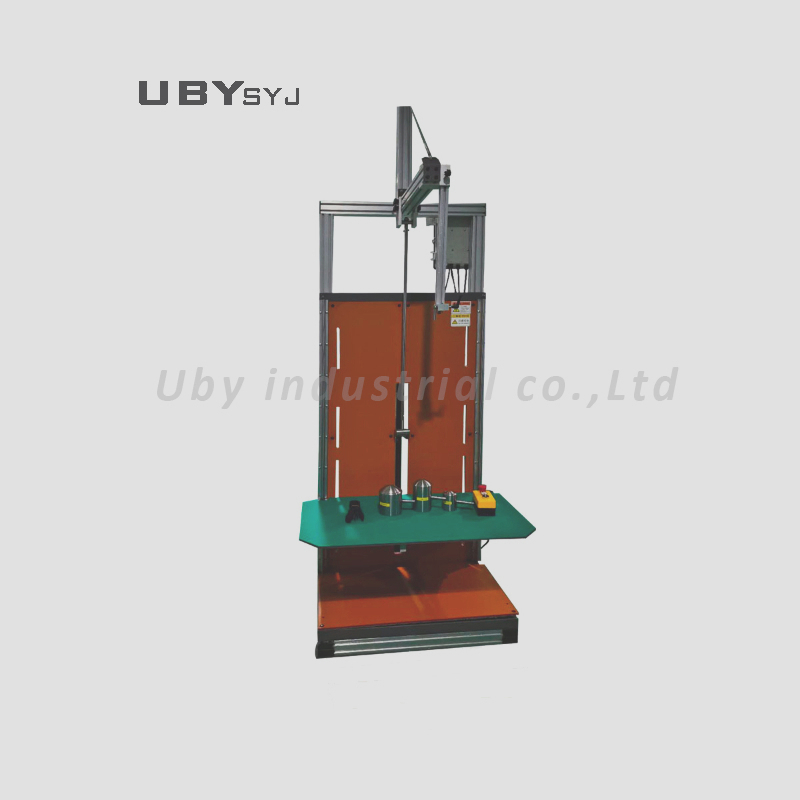

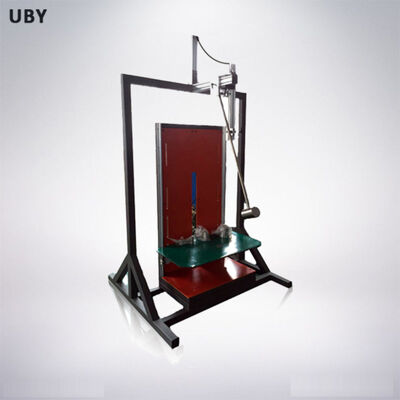

Drop Impact Testing Machine Ik01-10 Pendulum Steel Hammer Aluminum Test Bench 0 Drop Impact Testing Machine Ik01-10 Pendulum Steel Hammer Aluminum Test Bench 1
Our Service Process
  • Customer Inquiry: Technical requirement discussion and product recommendation with competitive pricing
  • Customization: Detailed drawings and reference photos for specification confirmation
  • Production & Delivery: Manufacturing with progress updates, calibration services, and timely shipping
  • Installation & Support: On-site installation and comprehensive after-sales service
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment, with extended coverage for sea transportation. For technical support, contact us via email or phone for problem resolution within 24-48 hours.

What about the delivery term?

Standard machines with stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent requests receive special priority scheduling.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your specifications, including OEM and ODM services with your logo.

How can I install and use the machine?

We provide English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance is available when necessary.
