Home /Products/Rubber Testing Equipment/UP-5006 Low-temperature Brittleness Tester ISO812 ASTM D746 Compliant with Rt~-80℃ Range and 2 M/S Impact Speed

UP-5006 Low-temperature Brittleness Tester ISO812 ASTM D746 Compliant with Rt~-80℃ Range and 2 M/S Impact Speed

1
MOQ
Negotiable
Price
UP-5006 Low-temperature Brittleness Tester ISO812 ASTM D746 Compliant with Rt~-80℃ Range and 2 M/S Impact Speed
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-5006
Applications: Plastic Rubber
Temperature Range: Rt~-80℃
Impact Speed: 2 M/S ± 0.2 M/S
Temperature Uniformity: ±1℃
Display Resolution: 0.1℃
Language: Chinese And English
Service Support: OEM ODM
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-5006
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5-10 work days
Payment Terms: D/P,T/T,Western Union
Supply Ability: 20 Unit/monty
Product Description
UP-5006 Low-temperature Brittleness Tester
Product Overview
The UP-5006 Low-temperature Brittleness Tester evaluates the low-temperature resistance and brittle failure performance of rubber, plastic, elastomer, and polymer materials. This machine simulates extreme low-temperature working environments to test the critical temperature at which materials crack or break under impact load.
Featuring a high-efficiency refrigeration system and precise constant-temperature control technology, the tester offers fast cooling speed, uniform temperature field, and stable test results. It supports multi-sample batch testing with automatic impact and judgment functions, ensuring simple operation, high repeatability, and accurate data.
Applications
This tester is used to compare and identify the functional performance of non-rigid plastics and other elastic materials under low-temperature conditions. It effectively measures the advantages and disadvantages of low-temperature performance for different rubber materials and composite rubber formulations.
Compliance Standards
  • ISO812: Rubber, vulcanized or thermoplastic - Determination of low-temperature brittleness
  • ISO 974: Determination of Impact Brittle Temperature of Plastics
  • ASTM D746: Brittle temperature of impact plastics and elastomers
  • JIS K6261: Determination of Rubber Vulcanization or Thermoplastic Low Temperature Properties
Technical Specifications
Item Specification
Temperature Control Range Ambient temperature ~ -70℃ (customizable to -90℃)
Temperature Control Accuracy ±0.5℃
Temperature Uniformity ±1℃
Display Resolution 0.1℃
Impact Speed 2.0±0.2 m/s
Single Impact Energy ≥3.0 J
Sample Quantity 6 pcs per batch
Test Method Immersion low-temperature impact test
Cooling Mode High-efficiency compressor refrigeration, circulating constant temperature
Cooling Rate 0 ~ -30 ℃: 2.5 ℃/min
-30 ~ -40 ℃: 2.5 ℃/min
-40 ~ -70 ℃: 2.0 ℃/min
Power Supply AC220V 50Hz (110V optional)
Working Environment 0℃~40℃, ≤85%RH
Product Images

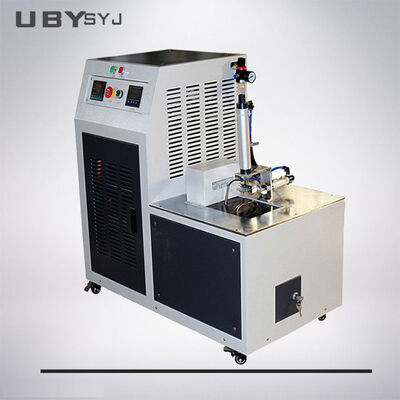

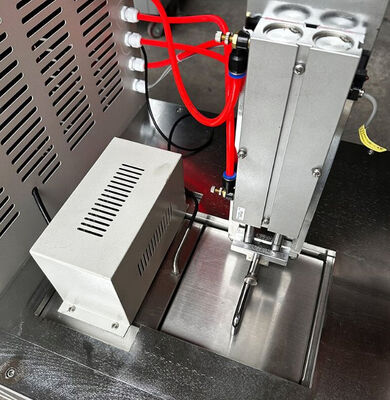

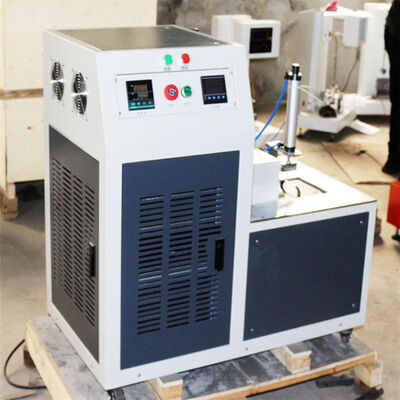

UP-5006 Low-temperature Brittleness Tester front view UP-5006 Low-temperature Brittleness Tester side view Precise and Automated Brittleness Temperature Tester for Testing Plastic Films Close-up view of Brittleness Temperature Tester components Brittleness Temperature Tester in operation
Our Service Process
We offer consultative selling services throughout the entire business process:
  • Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
  • Customization: Create drawings for customized requirements, provide reference photos, and confirm final solutions and pricing
  • Production & Delivery: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and ensure timely delivery
  • Installation & Support: Provide installation services and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment, with free maintenance during this period. We extend an additional 2 months to account for sea transportation. If your machine requires service, contact us via email or phone. We'll diagnose the issue through conversation or video chat and provide solutions within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment confirmation. We accommodate urgent requests with special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including adding your logo to the equipment.
How can I install and use the machine?
We provide English operation manuals and videos via email. Most machines are shipped fully assembled - you simply connect the power cable and begin operation. When necessary, we offer on-site installation assistance.
