UP-5004 Digital Display MFR MVR Testing Machine with High Temperature Control Accuracy and 40 °C - 450 °C Range

1
MOQ
2999
Price
UP-5004 Digital Display MFR MVR Testing Machine with High Temperature Control Accuracy and 40 °C - 450 °C Range
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-5004
Service Support: OEM ODM
Language: Chinese And English
MOQ: 1 PCS
Specification: Refer To The Actual Size Specifications
Temperature Range: 40 °C - 450 °C
Temperature Fluctuation: ± 0.2 °C
Temperature Display Resolution: 0.1 °C
Cutting Timing Range: 1 - 999 S (adjustable)
Test Range: 0.1 - 150 G/10min
Highlight:

High Temperature Control Accuracy Melt Flow Index Tester

,

Digital Display MFR MVR Testing Machine

,

40 °C - 450 °C Temperature Range Plastic Testing Equipment
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-5004
Payment & Shipping Terms
Packaging Details: Professional Export Packing
Delivery Time: 5-10 work days
Payment Terms: D/P,T/T,Western Union
Supply Ability: 20 Unit/Month
Product Description

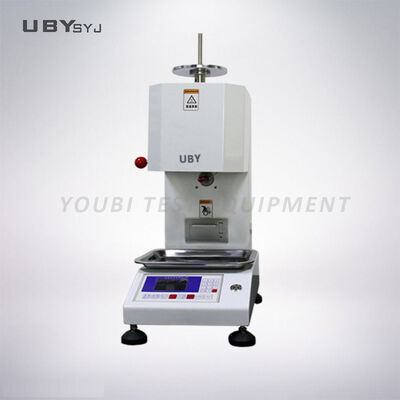

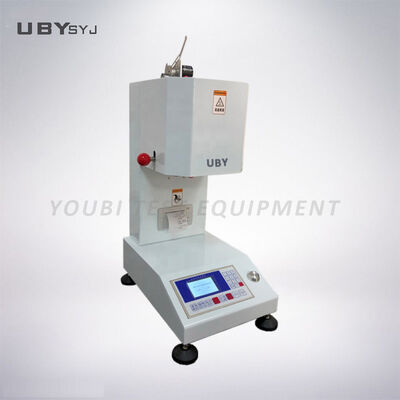

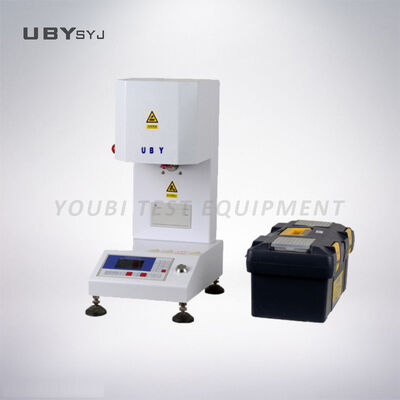

UP-5004 Digital Display Laboratory MFI Tester
High-precision melt flow rate testing instrument with advanced temperature control accuracy for plastic materials analysis.
Product Description
The UP-5004 melt flow rate testing instrument is designed to determine the melt flow rate (MFR) or melt volume flow rate (MVR) of various plastic materials including ABS, polystyrene, polyethylene, polypropylene, polyamide, fiber resin, acrylate, POM, fluorine plastic, polycarbonate, and other polymers.
Compliance Standards
GB/T3682-2000, ISO1133-97, ASTM1238
Technical Specifications
Parameter Specification
Temperature Range 40 °C - 450 °C
Temperature Drift ≤ 0.5 °C over 4 hours
Temperature Fluctuation ± 0.2 °C
Temperature Uniformity (10-70 mm above die) ± 0.5 °C
Temperature Display Resolution 0.1 °C
Time Display Resolution 0.1 s
Cutting Timing Range 1 - 999 s (adjustable)
Die Diameter Φ 2.095 ± 0.005 mm (Half-die 1.05mm + 0.005, optional)
Outlet Length 8.000 ± 0.025 mm
Piston Rod Diameter 9.474 ± 0.007 mm
Piston Rod Length 6.35 ± 0.13 mm
Loading Barrel Diameter Φ 9.550 ± 0.007 mm
Test Range 0.1 - 150 g/10min
Weight Accuracy ± 0.5%
Output Mode Micro-automatic print output
Cutting Mode Manual and automatic cutting
Test Load 8 levels in total (8 sets of weights)
Power Supply Voltage AC220V ± 10% 50Hz
Product Images
UP-5004 Digital Display MFR MVR Testing Machine with High Temperature Control Accuracy and 40 °C - 450 °C Range 0 UP-5004 Digital Display MFR MVR Testing Machine with High Temperature Control Accuracy and 40 °C - 450 °C Range 1 UP-5004 Digital Display MFR MVR Testing Machine with High Temperature Control Accuracy and 40 °C - 450 °C Range 2 UP-5004 Digital Display MFR MVR Testing Machine with High Temperature Control Accuracy and 40 °C - 450 °C Range 3 UP-5004 Digital Display MFR MVR Testing Machine with High Temperature Control Accuracy and 40 °C - 450 °C Range 4 UP-5004 Digital Display MFR MVR Testing Machine with High Temperature Control Accuracy and 40 °C - 450 °C Range 5
Our Service Process
  • Customer Inquiry: Technical consultation and product recommendation based on testing requirements
  • Customization: Detailed drawings and reference photos for customized specifications
  • Production & Delivery: Production updates, calibration services, and timely shipping
  • Installation & Support: Field installation and comprehensive after-sales service
Frequently Asked Questions
Are you a manufacturer? What about warranty and after-sales service?
Yes, we are professional manufacturers of testing equipment. All machines include 12-month warranty with extended support for international shipping. Technical support is available via email, phone, or video chat with solutions provided within 24-48 hours.
What is the delivery time?
Standard machines: 3-7 working days (in stock) or 15-20 working days (production). Urgent orders receive special priority handling.
Do you accept customization and OEM services?
Yes, we offer both standard and customized machines according to specific requirements, including OEM and ODM services with customer branding.
How do I install and operate the machine?
We provide comprehensive English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin testing. On-site installation assistance is available when needed.
