Home /Products/Packaging Testing Equipment/UP-6000 Ring Crush Tester with High-grade Ball Screws, Digital Display, and Computer Control for Precision Compression Testing

UP-6000 Ring Crush Tester with High-grade Ball Screws, Digital Display, and Computer Control for Precision Compression Testing

1
MOQ
Negotiable
Price
UP-6000 Ring Crush Tester with High-grade Ball Screws, Digital Display, and Computer Control for Precision Compression Testing
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-6000
Display: Digital
Control: Computer Control
Power Source: AC110-220V
Additional Service: Support Customer Customization.
Delivery Terms: CIF, DDP, DDU, FedEx, DHL, FOB
Transport Package: Professional Export Wooden Carton Packaging
Load Resolution: 1/250.000
Load Accuracy: Within ± 0.5%
Test Speed: (12 ± 0.5) Mm/min
Platen Stroke: 0.1 ~ 80 Mm
Platen Diameter: Φ120 Mm
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6000
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5~10 work days
Payment Terms: D/P,T/T,Western Union,Paypal
Supply Ability: 20 Unit/month
Product Description

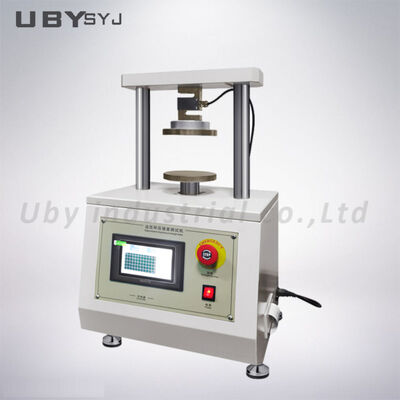

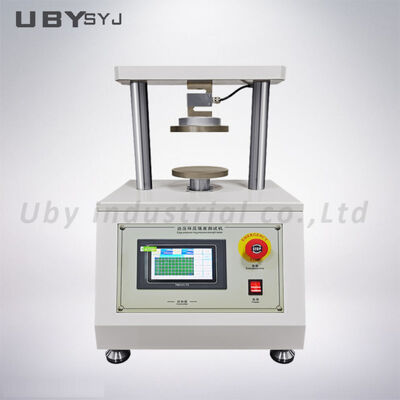

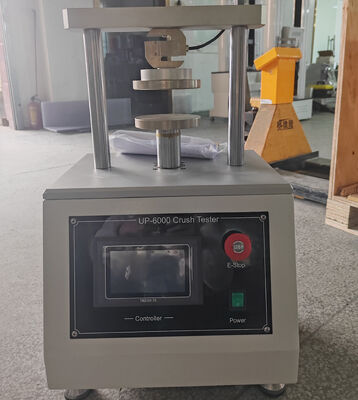

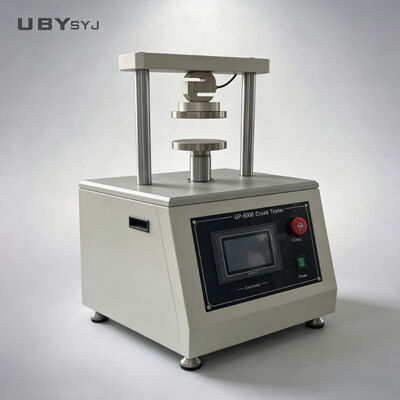

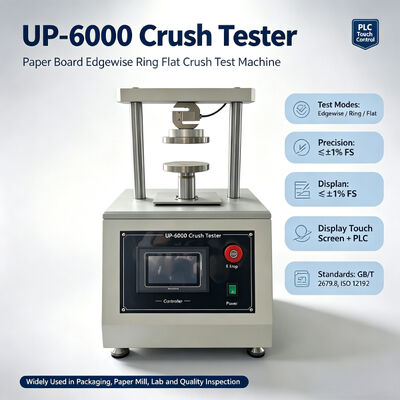

UP-6000 Precision-engineered Ring Edge Crush Tester
Product Overview

The UP-6000 Ring Edge Crush Tester is a high-precision instrument featuring a servo-driven ball screw system for exceptionally smooth and accurate compression testing. Engineered with high-grade ball screws and guide rails, this multi-functional tester supports various compression tests including edge crush (ECT), ring crush (RCT), flat crush (FCT), and adhesive strength evaluations.

  • 7-inch touch-screen interface for intuitive operation
  • Real-time force curve visualization
  • USB data export capability
  • Rugged dual-column frame construction
  • Ideal for corrugated board and paper packaging quality control
  • Compliant with TAPPI-T472, JIS-P8126 standards
Technical Specifications
Parameter Specification
Capacity 2000N
Accuracy 0.01kg
Platen Dimension 100×100mm (customizable)
Test Stroke 90mm (customizable)
Test Speed 12.7mm/min
Return Function Automatic return after test completion
Weight 60kg
Power Requirements 1φ, 220V/50Hz
Available Accessories
Side Pressure Strength Test

Ring Crush Tester + Parallel Cutting Knife + Side Pressure Counselling Piece

Ring Crush Strength Test

Ring Crush Tester + Ring Crush Sampler + Ring Crush Fixture

Bonding Strength Test

Ring Crush Tester + Hood Strength Stripping Frame

Flat Crush Strength Test

Ring Crush Tester + Flat Crush Sampler

UP-6000 Ring Crush Tester with High-grade Ball Screws, Digital Display, and Computer Control for Precision Compression Testing 0 UP-6000 Ring Crush Tester with High-grade Ball Screws, Digital Display, and Computer Control for Precision Compression Testing 1 UP-6000 Ring Crush Tester with High-grade Ball Screws, Digital Display, and Computer Control for Precision Compression Testing 2
Our Service Process
1. Customer Inquiry Process

We discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing based on customer specifications.

2. Customization Process

We create detailed drawings for customized requirements, provide reference photos, and confirm final solutions and pricing with customers.

3. Production & Delivery

Machines are manufactured according to confirmed requirements with progress photos provided. We conduct factory or third-party calibration, thorough testing, and arrange secure packaging and timely delivery.

4. Installation & After-Sales

We provide field installation services and comprehensive after-sales support to ensure optimal performance.

Frequently Asked Questions
Are you a manufacturer? What about warranty and after-sales service?
Yes, we are professional manufacturers of testing equipment. All machines include a 12-month warranty with free maintenance. We extend this to 14 months considering sea transportation. Technical support is available via email, phone, or video chat with solutions provided within 24-48 hours.
What is your delivery timeline?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent requirements receive special priority scheduling.
Do you accept customization and branding?
Yes, we offer both standard and fully customized machines according to your requirements, including OEM and ODM services with your logo.
How do I install and operate the machine?
We provide comprehensive English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin testing. On-site installation assistance is available when needed.
Tag:

Carton Compression Tester

Packaging Compression Tester

Packaging Testing Machine
