ASTM D3420 1J 2J 3J Manual Pendulum Impact Tester

ASTM D3420 1J 2J 3J Manual Pendulum Impact Tester
ASTM D3420 1J 2J 3J Manual Pendulum Impact Tester ASTM D3420 1J 2J 3J Manual Pendulum Impact Tester

Large Image :  ASTM D3420 1J 2J 3J Manual Pendulum Impact Tester

Product Details:
Place of Origin: china
Brand Name: HUST Tony
Model Number: HTZ-017C
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: contact saler
Packaging Details: Plywood BOX
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per month
Detailed Product Description
Model Number: HTZ-017C Iterm: Manual Pendulum Impact Tester
Minimum Order Quantity: 1 Set Delivery Time: 7 Working Days
Payment Terms: T/T, L/C, Western Union Standard: ASTM D3420, NFT54-116
High Light:

3J Manual Pendulum Impact Tester

,

2J Manual Pendulum Impact Tester

,

ASTM D3420 Pendulum Impact Testing Machine

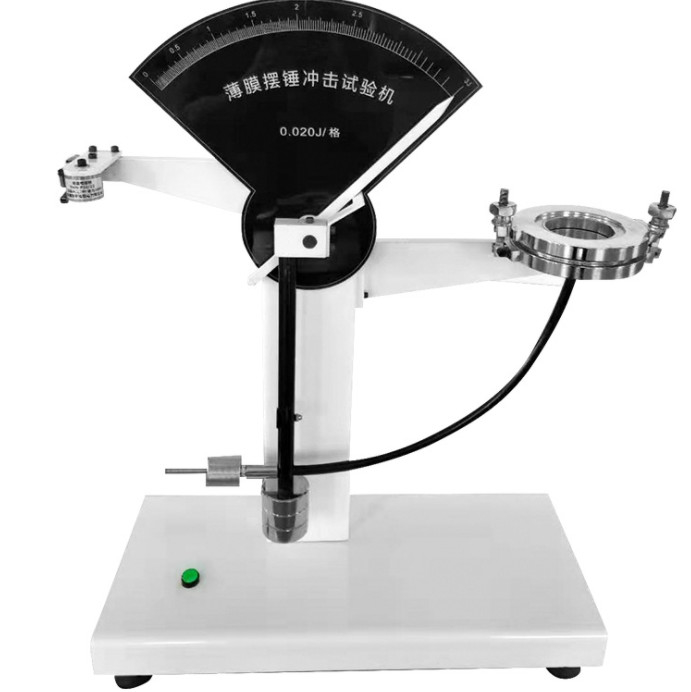

ASTM D3420 --1J,2J,3J Manual Pendulum Impact Tester HTZ-017 C





Impact and break through the sample at a certain speed by the half round ball type punch to measure energy consumed by a punch to evaluate film pendulum impact energy value.





Design standard: ASTM D3420, NFT54-116



TECHNICAL SPECIFICATIONS
Impact Energy 1J,2J,3J (Routine)
Resolution 0.02J
Punch Size Ф25.4mm,Ф12.7mm
Displacement Accuracy ±1%
Sample Holder Diameter Ф89mm,Ф60mm
Height Range ≤ 600mm
Sample Size 100 mm x 100 mm or Ф100mm
Dimension 540mm×430mm×630mm
Net Weight 30Kg
ENVIRONMENT REQUIREMENT
Temperature 23
Relative Humidity No more than 80%,no dewdrop
operate Manual
Configurations
Standard Configurations:Mainframe, Pendulums of 1 J, 2 J and 3 J, Standard Impact Heads of Ф25.4 mm and Ф12.7 mm, Standard Clamp Plates of Ф89 mm and Ф60 mm
