Product Details:
Payment & Shipping Terms:
|
| Model Number: | HTZ-017B | Iterm: | Micro-Computer Pendulum Impact Tester |
|---|---|---|---|
| Minimum Order Quantity: | 1 Set | Delivery Time: | 7 Working Days |
| Payment Terms: | T/T, L/C, Western Union | Standard: | ASTM D3420, NFT54-116 |
| High Light: | Microcomputer Pendulum Impact Tester,ASTM D3420 Pendulum Impact Tester,Microcomputer Pendulum Impact Testing Machine |
||

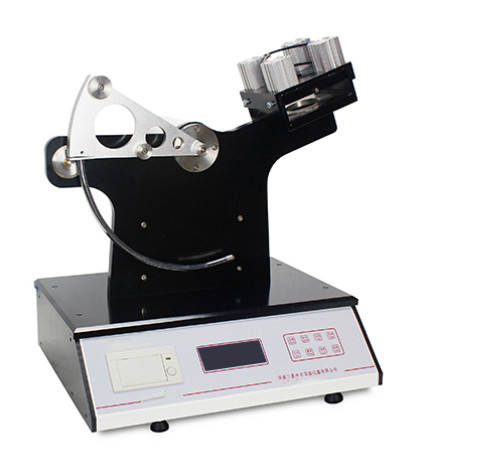

Meet ASTM D3420 --1J,2J,3J Micro-Computer Pendulum Impact Tester HTZ-017B
Impact and break through the sample at a certain speed by the half round ball type punch to measure energy consumed by a punch to evaluate film pendulum impact energy value.
Features:
Auto pendulum impact tester is controlled by micro-computer, with large LCD display, menu interface and PVC operation panel.
Electronic measurement mode, test accuracy is up to 0.001J.
Pneumatic specimen clamping, pendulum release mechanism and automatic horizontal adjustment system effectively reduce the errors caused by manual operation.
Adjustable range and electronic measurement support various combinations of non-standard test conditions.
The system provides automatic statistics of testing data for users’ convenient viewing.
Micro-computer and RS232 port can be connected with computer, Professional software supports data statistics, analysisand printing.
Design standard: ASTM D3420, NFT54-116
| TECHNICAL SPECIFICATIONS | |
| Impact Energy | 1J,2J,3J (Routine) |
| Resolution | 0.001J |
| Punch Size | Ф25.4mm,Ф19mm,Ф12.7mm(Non-standard customized) |
| Displacement Accuracy | ±2% |
| Sample Holder Diameter | Ф89mm,Ф60mm |
| Height Range | ≤ 600mm |
| Sample Size | 100 mm x 100 mm or Ф100mm |
| Dimension | 540mm×430mm×630mm |
| Net Weight | 78Kg |
| ENVIRONMENT REQUIREMENT | |
| Temperature | 15-35℃ |
| Relative Humidity | No more than 80%,no dewdrop |
| Power Supply | 220V 50Hz |
| Configurations | |
| Standard Configurations:Mainframe, Pendulums of 1 J, 2 J and 3 J, Standard Impact Heads of Ф25.4 mm and Ф19 mm, Standard Clamp Plates of Ф89 mm and Ф60 mm,Micro Printer, Professional Software, Communication Cable and O-ring | |
