Product Details:
Payment & Shipping Terms:
|
Model Number: | WT-11 | Iterm: | Big Size Pressure Immersion Water Test Chamber |
---|---|---|---|
Minimum Order Quantity: | 1 Set | Delivery Time: | 15 Working Days |
Payment Terms: | T/T, L/C, Western Union | Place Of Origin: | Guangdong,China(Mainland) |
Certificate: | IEC60529 ,GB/T4208,GB7000 | ||
High Light: | Pressure Immersion Water Test Chamber,GB7000 Water Immersion Test Equipment,IEC60529 Water Immersion Test Equipment |
Principle: Water Immersion Test Chamber used to test anti-rain and water-proof performance for products, the products such as steam locomotive lamps, wiper performance, waterproof bands, motorcycle instruments, defense industry, navigation systems, missiles, radar cone top, aerospace industry etc.
Applications:
Water Immersion Test Machine has been widely used in domestic commodity inspection bureau and the domestic and foreign products, quality authentication laboratory and the domestic and foreign well-known electronics manufacturers. Equipment performance had achieved the international advanced level, cost-effective.
Standard :
IEC60529:1989 +A1:1999 +A2:2013
GB/T4208-2017 Housing Protection Rating (IP Code) 14.2.8
GB7000.1 Lamps Part I: General Requirements and Trials 9.2.9
Features:
1. Suitable for product IPX7 + IPX8 waterproof testing
2. The tank is made of 304 stainless steel, high-precision overall sub-arc welding forming, good pressure;
3.The immersion tank is made of SUS304 stainless steel
4. Special silicone seal ring, good elasticity, good durability.
5. Top tank cover on equipment - secured with 8 ring screws (send auxiliary-steel rod).
6.The equipment is equipped with a safety valve that automatically releases pressure after exceeding the rated pressure, preventing operator errors and hazards.

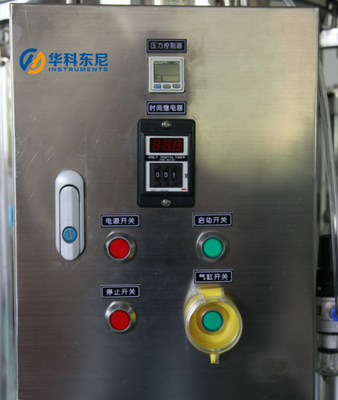

7.Electronic control components using imported brands (e.g. LS, Panasonic, Omron, etc.).
8.Using the imported Panasonic pressure sensor - automatic control tank test pressure, control accuracy: ± 0.002Mpa, sensor display accuracy: 0.001Mpa.
9.The equipment base is equipped with 4 casters for easy movement and fixation.

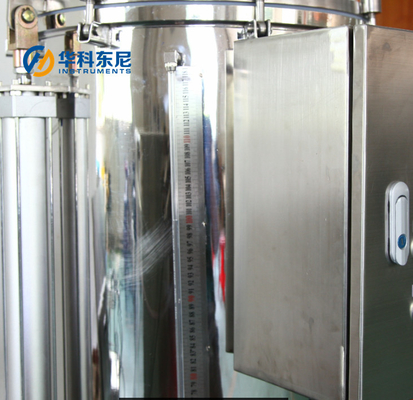

10. The outside of the tank is connected to a transparent tube, and the outer layer is fitted with a stainless steel ruler for a clear observation of the internal water level.
11.The inlet and drain valves are installed in the bottom position of the equipment.

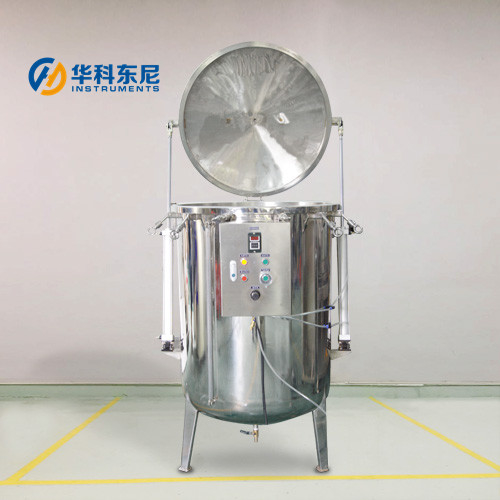

12.Tank installation cylinder lifting device, smooth lifting, easy to work
Technical parameters :
The size outside the water tank | 800*950*1750 mm (include casters) |
The size of the inner box | Dia600 *high 1200 mm |
box thickness | 4 mm |
Material | stainless steel |
Flange thickness | 25 mm |
Flange material | stainless steel |
The weight of the device | About 150 kg |
The way to expose | Cylinder lift |
Pressure control method | self-regulation |
The pressure error value | ±0.002 Mpa |
The sensor displays accuracy | 0.001 Mpa |
Test the depth range | 0—50 M |
Pressure adjustment range | 0—0.5 Mpa |
The relief valve exhaust pressure | 0.55 Mpa |
Maximum limit pressure | 0.6 Mpa |
Test time set range | 0-999 min |
protector | Pressure relief valve protection and Leak switch protection |
The intake method | The sensor sets the value |
voltage | 220V. 50Hz |
power | 100W |
Terms of use :
Environmental requirements |
Ground is flat, drainage is smooth, the ground and walls are waterproof, setting ground leakage or drainage ditches. Well ventilated. No strong electromagnetic field around. No flammable, non-explosive, non-corrosive substances and dust around . Rack and control box Distance: 800-1000mm. |
Temperature | 5℃~35℃ |
Humidity | ≤85% |
Atmospheric pressure | Customer-owned air compressor, recommended output air pressure: 0.6Mpa-0.8Mpa |
Water | Tap water/pure water |
Accessories:
1. Safety valve certificate* 1
2. Auxiliary steel rod *1 stick;
3. intake pipe *1 pcs
4. 5 meters pipe*1 pcs
