Product Details:
Payment & Shipping Terms:
|
Model Number: | TW-229 And TW-229D | Iterm: | Mouth-actuated Toy Durability Tester |
---|---|---|---|
Minimum Order Quantity: | 1 Set | Delivery Time: | 15 Working Days |
Payment Terms: | T/T, L/C, Western Union | Place Of Origin: | Guangdong,China(Mainland) |
Certificate: | EN71-1 ,ISO 8124-1 4.25,5.20, ASTM F963 8.13 | ||
High Light: | Mouth Actuated Toy Durability Tester,EN71-8.17-1 Mouth Actuated Toy Tester,Touch Screen Mouth Actuated Tester |

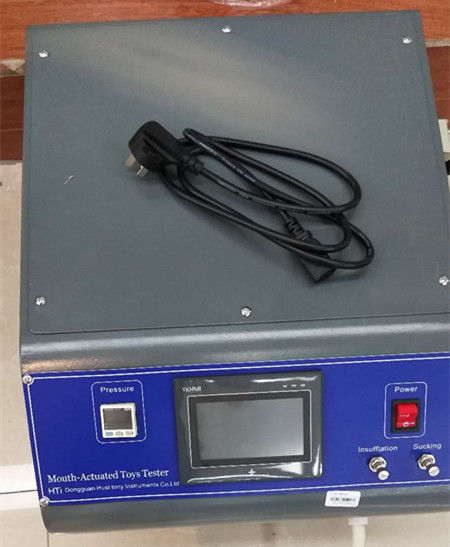

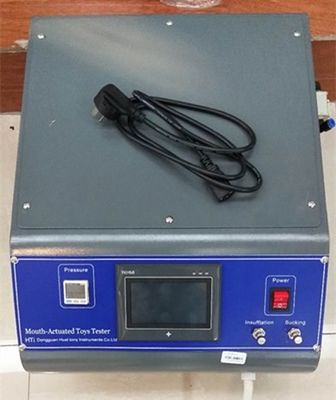

TW-229 Mouth-actuated Toy Durability Tester
1. Instruments to meet at least 295 cubic centimeters within + / -10 cubic centimeters of gas in 5s, and
can be 10 times alternately blowing, suction.
2. Instrument install high precision pressure gauge (digital pressure gauge is optional if client need)
3.Supply gas-type fitting for different toys
4. Gas flow could be controlled by gas valve
5. Power: 220V/50Hz,4A.
6. Dimension (L*W*H):650*400*260mm
7. Weight: 40 kg
Standards: EN71-1 8.17.2 Other mouth-actuated toys(not suitable for 8.17.1), ISO 8124-1 4.25,5.20,
ASTM F963 8.13 Durability Test for Mouth-Actuated Toys
This apparatus needs additional air compressor by customer.
Accessories : Tube gripper 2pcs

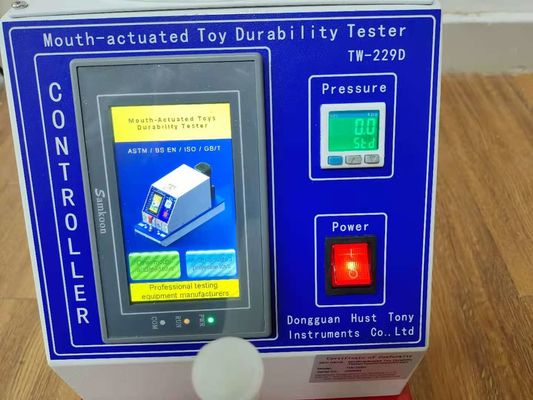

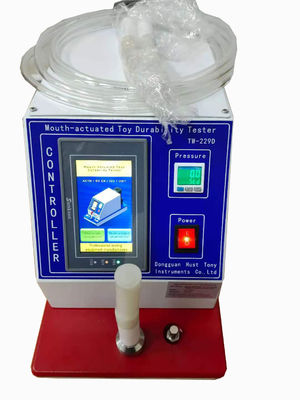

TW-229D Mouth-actuated Toy Durability Tester
Mouth-actuated Toy Durability Tester is suitable for the test of the safety of the Mouth-Actuated Toys, such as whistles with a ball, the sounders with a reed and other toys.
Mouth Actuated Toys Tester will blow-off certain volume gas in a certain speed and inhale the toy, blow-off and inhale alternately for 10 times, after the test, you should test the toy and the deciduous parts whether they are findings.
Parameters:
1. Instruments to meet at least 295 cubic centimeters within + / -10 cubic centimeters of gas in 5s, and can be 10 times alternately blowing, suction.
2. apply a pressure of 13,8 kPa ± 5 % in the direction of the mouthpiece for 5 s.
3. Instrument install high precision pressure gauge (digital pressure gauge is optional if client need)
4.Supply gas-type fitting for different toys
5. Gas flow could be controlled by gas valve
6.Power: 220V/50Hz,4A.
7.Dimension (L*W*H):650*400*260mm
8.Weight: 20 kg
Standards: EN71-1 8.17.1 Mouth-actuated projectile toys and EN71-1 8.17.2 Other mouth-actuated toys, ISO 8124-1 4.25,5.20, ASTM F963 8.13 Durability Test for Mouth-Actuated Toys
Accessories : Tube gripper 2pcs
