Product Details:
Payment & Shipping Terms:
|
Model Number: | TW-226 | Iterm: | Toys Flammability Tester |
---|---|---|---|
Minimum Order Quantity: | 1 Set | Delivery Time: | 7 Working Days |
Payment Terms: | T/T, L/C, Western Union | Place Of Origin: | Guangdong,China(Mainland) |
Certificate: | CE | Standard: | BS EN 71-2, Clause 5.4, Or ISO 8124-2_2014 |
High Light: | Children Clothes Flammability Tester,Toys Flammability Testing Equipment,ISO 8124 Flammability Test Chamber |

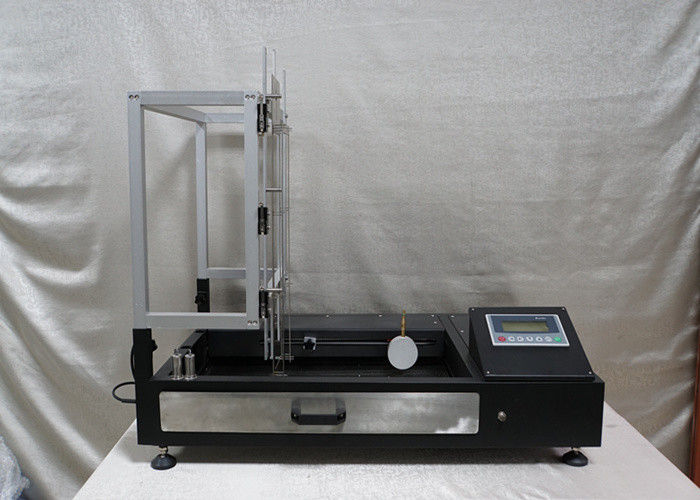

EN71 Toys Comprehensive Flammability Test Equipment for Children Clothing Toys Burning Test
Purpose of equipment
used for testing the flammbility of toys,children clothes,evalute the following toys flammability speed,time.
Testing the child clothing or the toy and accessories s flammability , appraises the following toy type the repidity of the flammability and time
Technical specifications
Ignition time set range | 0~99.99S Precision:0.01S |
Continue burning time range | 0-999.9S precision0.1S |
Ignition mouth size | applies to IS0 6941 standard |
Dimension of specimen | 150mmX560mm |
Power | AC200V 50Hz |
Weight | 40KG |
Gas | butane gas |
Mercerized Marker Thread | white cotton thread, density>50 |
Summary:
This tester was designed according to EN71 standard, both sell to overseas and dometic market.
(1) Adopt the mininsize gas cylinder system, the instrument can be moved, take up small space. The user also can connect big gas cylinder.
(2) The gas system is controlled by PLC, ignite and continue burning time are accuracy,
(3) All frames can be adjusted to meet different testing need.
This instrument applies to test the performance of flame retardardant of toys for children, completely applies to EN71-2.
Gas and Flame Lighter (but could not be sent as the forbidden goods)
Standards:
16 CFR 1500.49, ASTM F963 4.8, EN71-1 2014 8.11, GB 6675-2003 A.5.9

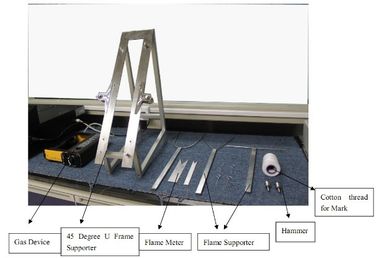

Standard Configuration:
Toys Comprehensive Flammability Tester 1 pcs
Powercord 1 pcs
Burning units 1 pcs
Butane gas 1 bottle
Cotton thread 1 roll
Fixture 1 set
Fix clamp 3 pcs
Plug 4 pcs
Flame caliper 2 pcs
Burning torch 1 pcs
Weights 2 pcs
Operating manual 1 brochure
Contact Person: linmei
Tel: 86-13421721188
