ISO 14616 DIN 53369 Film Shrinkage Tester 100N

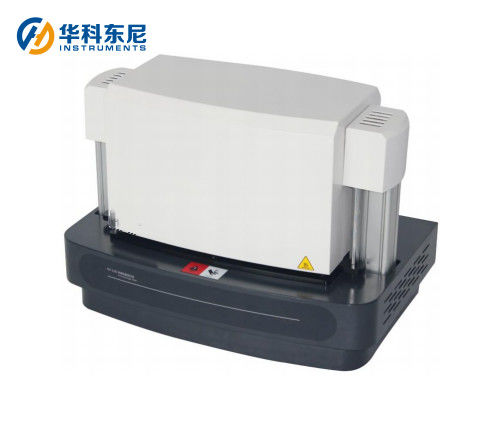

Large Image : ISO 14616 DIN 53369 Film Shrinkage Tester 100N

Product Details:

Place of Origin:	china
Brand Name:	HUST Tony
Model Number:	HTZ-031B

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	contact saler
Packaging Details:	Plywood BOX
Delivery Time:	7-15 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

Model Number:	HTZ-031B	Iterm:	Film Shrinkage Test Equipment
Minimum Order Quantity:	1 Set	Delivery Time:	15 Working Days
Payment Terms:	T/T, L/C, Western Union	Place Of Origin:	Guangdong,China(Mainland)
Certificate:	ISO 14616, DIN 53369
High Light:	Film Shrinkage Tester DIN 53369 , 100N Film Shrinkage Tester , ISO 14616 Film Shrinkage Test Equipment

Application :

This instrument is suitable for the highly accurate and digital measurement of heat shrinking force, shrinkage ratio and contracting force of various heatshrinkable films. Usually film samples include stretch film, blown film, shrink wrap, battery separation membranes, etc

Technical indexes

1. Force Range: 100N(STD)
2. Force Accuracy: 0.05%FSMAX
3. Shrinkage Ratio: 100mm
4. Shrinkage Ratio Accuracy: 0.1mm
5. Hood Temperature: room temperature~260℃
6. Temperature Accuracy: ±0.3℃
7. Sample Size: width: 15mm; length: >100mm
8. Work Station: 3, independent
9. Gas Resource: 0.1MPa-0.8MPa(air; free oil, water and dust)
10. Gas Interface: Ф8mm
11. Dimension: 590mm(L)x385mm(W)x435mm(H)
12. Power Supply: AC 220V 50Hz (others optional)
13. Net Weight: 61kg

Standard

ISO 14616, DIN 53369

Features

One-click test, test results will automatically display on the screen.
Built-in 3 test stations, each station can independently complete the shrinkage force, contracting force and shrinkage ratio test.
Force curves and ratio curves display with single and multiple display technology.
Highly accurate shrinkage ratio test relies on our exclusive patent technology.
Oil free operation, no contamination.
Built-in embedded system, easy to remote maintenance and upgrades.
