ASTM D1709 GB 9639 Falling Dart Impact Tester Plastic Testing Instrument

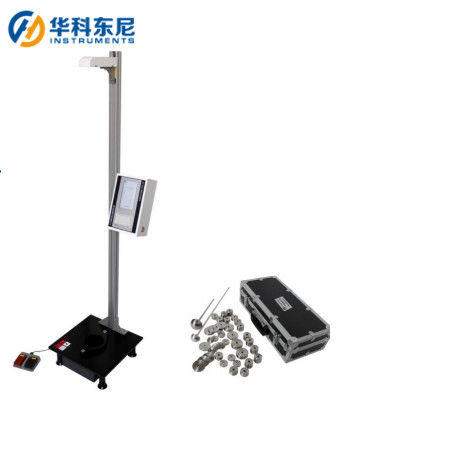

Large Image : ASTM D1709 GB 9639 Falling Dart Impact Tester Plastic Testing Instrument

Product Details:

Place of Origin:	china
Brand Name:	HUST Tony
Model Number:	HTZ-018

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	contact saler
Packaging Details:	Plywood BOX
Delivery Time:	7-15 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

Model Number:	HTZ-018	Iterm:	Falling Dart Impact Tester
Minimum Order Quantity:	1 Set	Delivery Time:	15 Working Days
Payment Terms:	T/T, L/C, Western Union	Place Of Origin:	Guangdong,China(Mainland)
Certificate:	ASTM D1709, GB 9639, JIS K7124
High Light:	GB 9639 Falling Dart Impact Tester , Falling Dart Impact Tester ASTM D1709 , JIS K7124 Falling Dart Impact Tester

Application : For the determination of the energy causes the plastic film to fail under specified conditions

of impact of a free-falling dart.

Technical Indexes

Test method : Method A, method B, others

Dart mass: MethodA: 50~ 2000g

Method B: 300~2000g

Result accuracy: 0.1g ( 0.1J )

Sample clamp: pneumatic.

Dart release: electromagnetism

Gas source: 0.5MPa~1.0MPa (self-provide)

Sample size: not less 150mm×150mm

Unit dimension: Method A: 450mm(L)×450mm(B)×1365mm(H)

Method B: 450mm(L)×450mm(B)×2160mm(H)

Power supply: AC 220V 50Hz

Net weight: 70kg

Standards

ASTM D1709, GB 9639, JIS K7124

Features

1. Our own technology.

2. Large size touch screen operation.

3. Designed based on various standards.

4. Falling ball test available.

5. Method A, Method B, customized method available.

6. Test results, curve display.

7. Result multiple units display.

8. Micro-printer prints mini-report.

9. High performance pneumatic sample clamp.

10. Foot pedal operation available.

11. Safety cover.

12. Result statistics.

13. RS232 communication port. (optional)

Configuration

Delivery:Method A frame, Amethod weighs, footpedal, level accessories.

Optional:Method B frame,B method weighs, cable, falling ball test accessories. ASTM D1709 GB 9639 Falling Dart Impact Tester Plastic Testing Instrument 0
