ISO 8295 ASTM D1894 Touch Screen Coefficient Of Friction Testing Machine HTZ-002

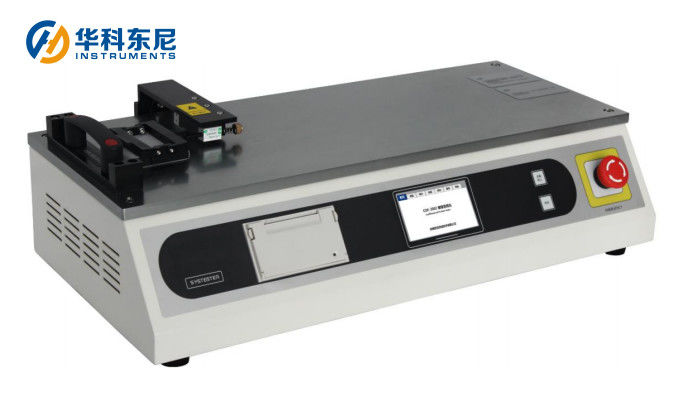

Large Image : ISO 8295 ASTM D1894 Touch Screen Coefficient Of Friction Testing Machine HTZ-002

Product Details:

Place of Origin:	china
Brand Name:	HUST Tony
Model Number:	HTZ-002

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	contact saler
Packaging Details:	Plywood BOX
Delivery Time:	7-15 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

Model Number:	HTZ-002	Iterm:	Coefficient Of Friction Tester
Minimum Order Quantity:	1 Set	Delivery Time:	15 Working Days
Payment Terms:	T/T, L/C, Western Union	Place Of Origin:	Guangdong,China(Mainland)
Certificate:	ISO 8295, ASTM D1894, TAPPI T816,GB 10006
High Light:	Touch Screen Cof Testing Machine , ASTM D1894 Coefficient Of Friction Tester , ISO 8295 Coefficient Of Friction Testing Equipment

Application : Applies to plastic films, laminated films, extrusion films, foils, sheets, rubber, paper ,paperboard, wood, brake pad, tyres, windshield wiper,conveyor belt, hare, metal, carbon rod, catheter, artificial skin etc testing of static coefficient and dynamic coefficient, especially used in food & pharmaceutical industries, quality inspection departments as wellas research and development institutions.

Technical Indexes

1.Load cell range: 5N

2.Accuracy: 0.05%FS MAX.

3 Travel distance: system auto control

4.Displacement accuracy: better than 0.1mm.

5.Sled mass: 200g (Personal customization available)

6.Sled area: 63mm X 63mm. (Personal customization available)

7.ISO Test speed: 100mm/min (or ASTM standard speed 150mm/min). other optional : 1 ~ 300mm/min

8.Sample thickness: 30mm. (optional)

9.Power supply: AC 220V 50Hz.

10.Power consumption: 25W.

11.Dimension: 650mm(L) *340mm(B) * 210mm(H)

12.Net weight: 42kg.

Standards

ISO 8295, ASTM D1894, TAPPI T816,GB 10006

Features

1.Own technology and software copyright registration.

2.ISO Test Standard (or ASTM test standard on demand).

3.Highly accurate load cell, ac-servo drive, force and speed are absolutely accurate.

4.Touch screen operation, long service life.

5.Real color TFT LCD, HD display.

6. Test parameters can be set directly on the touch screen.

7. Moving beam height adjustable, specimens of various thickness can be tested.

8.Compatible with various standard and non-standard Sleds test.

9.built-in Micro-printer , automatic print statistic results, programmed printing.

10.Dynamic coefficient test, and Static and dynamic coefficients test.

11.Built-in statistical analysis function.

12.Built-in test data query function.

13.Emergency stop button, extremely high safety and reliability.

14.Overload, limit position protection.

15.Low power consumption and silence running.

16. DB9 RS232 communication port.

17.COFlex professional computer software support(optional).

18.Group test, auto multiple curves display and auto statistic calculation(Software).

19.DSM system is optional(Laboratory Management Information System), easy to manage test data(optional)

Configuration Standard :

Mainframe, Micro-printer, Sled(200g), Sample Cutter. Optional: Computer, COFlex professional Computer Software, Sample Presser, Communication cable, Non-standard Sled, Calibration Assemblies, DSM software system.

Note: Specifications are subject to change without prior notice.
