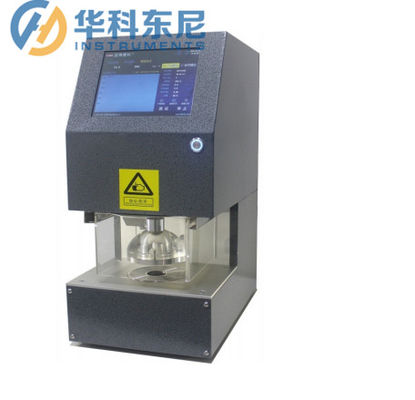

ISO 2759 Bursting Strength Test Equipment for Corrugated Board Paper Board

Large Image : ISO 2759 Bursting Strength Test Equipment for Corrugated Board Paper Board

Product Details:

Place of Origin:	china
Brand Name:	HUST Tony
Model Number:	HTZ-008C

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	contact saler
Packaging Details:	Plywood BOX
Delivery Time:	7-15 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

Model Number:	HTZ-008C	Iterm:	Bursting Strength Test Equipment Of Corrugated Board & Paper Board
Minimum Order Quantity:	1 Set	Delivery Time:	15 Working Days
Payment Terms:	T/T, L/C, Western Union	Place Of Origin:	Guangdong,China(Mainland)
Certificate:	ISO 2759, APPITA AS, 1301.438, FEFCO No. 4, SCAN, P 25, TAPPI T807 T810
High Light:	Bursting Strength Tester For Carton Box , ISO 2759 Bursting Strength Test Equipment , Corrugated Board Bursting Strength Tester

Different --ISO 2759 Bursting Strength Test Equipment Of Corrugated Board & Paper Board

Application : It is suitable for bursting strength test of various kinds of corrugated board, paper board and etc

Principle

HTZ-008C is based on Mullen theory, the piston injects silicon oil into the chamber covered by

plastic membrane which contacts with the test sample continuously until the sample bulges to

break, the maximum pressure is just the result of bursting strength.

Features

Embedded system, remote service
Touch screen operation
8 inch TFT LCD display parameters and results
Bilingual language display
Sample pneumatic clamping
Highly accurate pressure sensor inside
Safety mask, body protection
Test automatically starts and stops
Micro-printer prints mini-report
Test curve display
Interface: RS232
Supports DSM system (DSM, lab data management system)

Technical indexes

1.Test range: 250–6000 kPa ( 36–900 psi, 2.55–61.2 kgf/cm²)

2.Resolution: 0.1kPa

3.Error of reading: ±1%

4.Fluctuation of Reading: ≤1%

5.Pump flow: (170 ± 15)ml/min

6.Sample clamping pressure: 100~1400kPa, Adjustable

7.System leakage: <10%P max @ 1min

8. Upper clamp plate hole size: (31.5±0.05)mm

9.Lower plate hole size: (31.5±0.05)mm

10.Thickness: Up to 21mm.

11.Gas supply: Air, 0.6MPa-0.8MPa (self-provide)

12.Dimension: 380mm ×240 mm ×530 mm

13.Power supply: AC220V 50Hz

14.Net weight: 38kg

Standard : ISO 2759, APPITA AS, 1301.438, FEFCO no. 4, SCAN, P 25, TAPPI T807 T810.

Configuration Standard

Mainframe, silicon oil(1 bottle), plastic membrane, height gage, communication cable, calibration plug.

Optional: Micro-printer paper, DSM system.

Note: Specifications are subject to change without prior notice.
