ANSI/BIFMA X5.1-2017 Chair Seat Drop Impact Durability Testing Machine

large.img.alt
small.img.alt small.img.alt

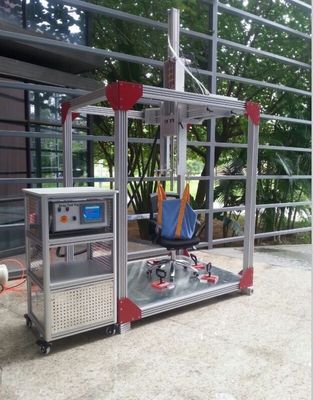

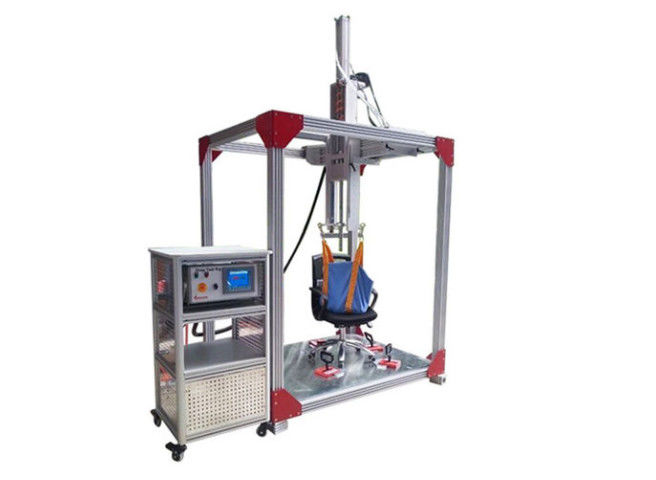

Large Image :  ANSI/BIFMA X5.1-2017 Chair Seat Drop Impact Durability Testing Machine

Product Details:
Place of Origin: china
Brand Name: HUST Tony
Model Number: TNJ-051
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: contact saler
Packaging Details: Plywood BOX
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per month
Detailed Product Description
Model Number: TNJ-051 Iterm: Chair Seat Drop Impact Durability Testing Machine
Minimum Order Quantity: 1 Set Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union Place Of Origin: Guangdong,China(Mainland)
Certificate: CE Standard: ANSI/BIFMA X5.1-2017 , ANSI / BIFMA X5.9 -2012
High Light:

Chair Drop Impact Durability Tester

,

Seat Drop Impact Durability Tester

,

ANSI/BIFMA X5.1-2017 Chair Seat Drop Test

Use : This test applies to all types of chairs.

Purpose of Test: to evaluate the ability of a chair to withstand heavy impact forces on the seat.dynamic and cyclic durability seat test.



Standard :

  • Drop test - Dynamic(ANSI/BIFMA X5.1-2017, clause 7)
  • Seating durability tests -Cyclic only (ANSI/BIFMA X5.1-2017 , Clause 10.3)
  • Drop test - Dynamic - for unit with seat surfaces (ANSI / BIFMA X5.9 -2012 , Clause 7.2 )
  • Durability test for units with seating surfaces - cyclic impad (ANSI / BIFMA X5.9 -2012, Clause 7.3)

Technical specifications

a)Frame size: 2m(W) x 1.5m (D) x 2m(H)

b)Pneumatic cylinder/electromagnetic system

-To hold. Release and lift the impact bag (3 different bags)

-Height: Adjustable height up to 1500mm from the test floor

-Attached to the impact bag and allow the impact bag to fall freely on the seat at height up to 200mm

(adjustable)

c)Impact bag:

-Construction

-Contain shot



-3 bags – with different mass: 57kg (125lb), 102kg(225lb) &136 kg(300lb)

-Diameter 406mm(16”)

d)2 operation mode:

-Electronic predetermined counter (EPC) – 6 digit counter allow the bag to be released lifted for the

specific cycles (seating durability test-100,000 cycles)

-Timer – to lift the bag once it is rested on the seat for 1 minute (drop test)

e)The specified size is to accommodate testing for multiple seating, table and storage as well
